Alphacool Apex Distroplate Y70 D5/DDC - White (5100189)

The Alphacool Apex Distro Plate for the HYTE Y70 and Y70 Touch Infinite transforms the front of the case into a centerpiece for a custom liquid cooling system. Designed specifically for the Y70 platform, the distro plate replaces the original front panel and integrates directly with the factory mounting points for a clean, purpose-built installation.

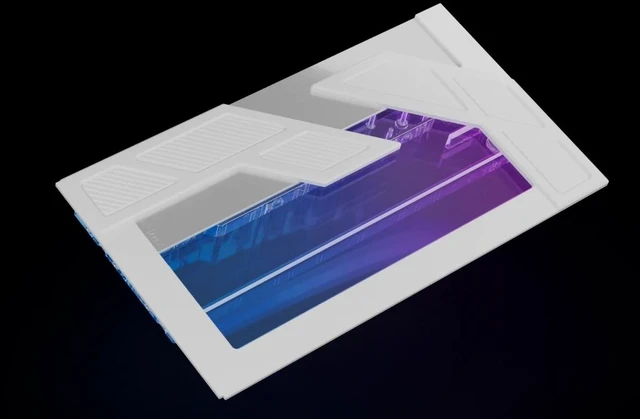

Constructed from high-quality transparent acrylic with a white aluminum cover, the Apex Distro Plate provides an unobstructed view of the coolant and internal flow channels. Integrated 5V addressable RGB lighting uses 11 LEDs to illuminate the reservoir and complement the panoramic design of the HYTE Y70.

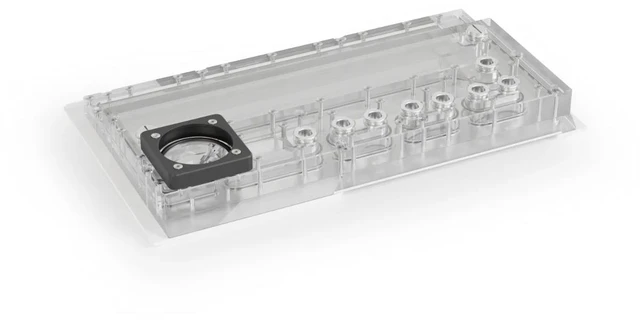

A key feature of the Apex design is Alphacool's approach to the G1/4" connections. Instead of threading fittings directly into the acrylic, the distro plate uses two-piece chrome-plated brass connections with O-ring seals. The components interlock through the acrylic during assembly, reducing stress around the connection points while providing a secure and reliable seal.

The distro plate provides eight G1/4" connections along with dedicated fill and drain ports, giving builders flexibility when routing CPU, GPU, radiator, and other custom loop components. With an approximate maximum filling volume of 372ml, the integrated reservoir provides substantial coolant capacity while maintaining the clean appearance of a case-specific distro plate.

The integrated pump mount supports D5/VPP-format pumps, allowing builders to select a pump that matches the performance requirements of their cooling system. The pump integrates directly with the distro plate to create a compact and organized pump/reservoir configuration.

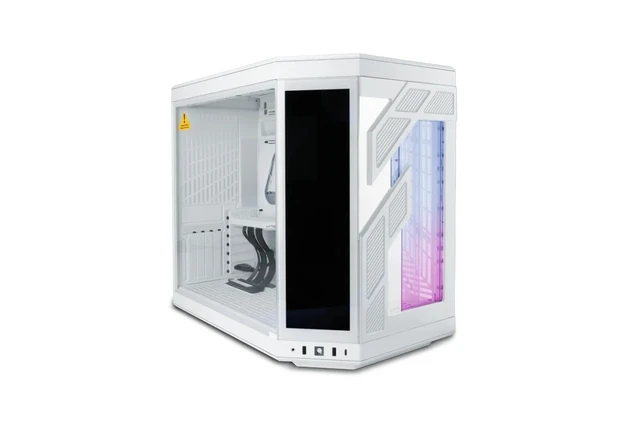

Installation is designed specifically around the HYTE Y70 chassis. The distro plate replaces the front panel and attaches to the original case mounting bracket using the factory mounting locations, eliminating the need for permanent case modifications.

Features

• Premium white distro plate designed specifically for the HYTE Y70 series
• Compatible with HYTE Y70 and Y70 Touch Infinite cases
• Replaces the original front panel for a fully integrated appearance
• Transparent acrylic reservoir with white aluminum cover
• Approximately 372ml maximum filling volume
• Eight G1/4" connections for flexible custom loop routing
• Dedicated fill and drain ports
• Two-piece chrome-plated brass connection design
• O-ring sealed connections help reduce stress on the acrylic
• Supports D5/VPP-format pumps
• Integrated 5V addressable RGB lighting
• 11 integrated digital aRGB LEDs
• Uses the case's original mounting locations for straightforward installation
• Designed for premium custom PC water cooling systems

Compatibility

• HYTE Y70
• HYTE Y70 Touch Infinite
• Pump Compatibility: D5 / VPP

Technical Specifications

• Dimensions: 403.40 x 230.00 x 41.30mm
• Maximum Filling Volume: Approx. 372ml
• Reservoir Material: Plexi (LXN865)
• Cover Material: Aluminum (AlMg0.7Si)
• Connections: 8x G1/4"
• Additional Ports: 1x Fill Port, 1x Drain Port
• Connection Material: Brass (CuZn39Pb3)
• Maximum G1/4" Thread Torque: 1.00 Nm
• Operating Temperature: -20 C to 60 C
• Pressure Tested: 0.8 Bar
• Pump Compatibility: D5 / VPP
• LED Count: 11 Digital aRGB LEDs
• LED Voltage: 5V
• LED Power: 3.3W
• aRGB Connection: 3-Pin JST + 3-Pin 5V
• Color: White / Transparent

Please Note: A pump is not included. The distro plate is designed specifically for the HYTE Y70 and Y70 Touch Infinite cases.
