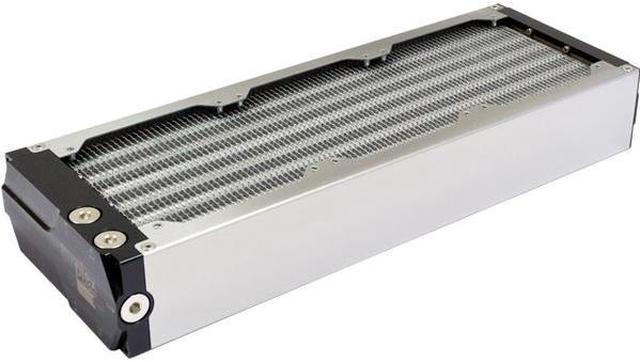

Aquacomputer Airplex Modularity 360mm Radiator | Aluminum (33016)

The airplex modularity system is a fully modular radiator system for water cooling systems and shows competence and know-how of the ten-year history at Aqua Computer. The main features of the airplex modularity system at a glance: - Absolute modular system- Extremely high cooling performance- Very compact - shorter than most other radiators for the same fan site and only 146mm wide- Expandable in all dimensions to unlimited size- No soldering residues because there are no solder joints- To clean completely completely dismantled and if necessary- Systems with multiple circuits in a space heater- Optimal flow / parallel pipe routes- No paint, optimal heat transfer- Pump modules with reservoir available- Many colors for the side panels available (Brushed stainless steel, black aluminum, blue, red)- Optimized for low fan speed slats with optimal structure and excellent passive cooling performance- No base metals in contact with the coolant, only copper and stainless steel- CNC machined components made from Delrin and stainless steel parts- Highest accuracy of the individual components guarantee perfect installation- Riveted threaded for fan mounting- Wide range of accessories (expansion tank, pump modules, feet, filters, sensors,... )- Copper fins available for maximum performance in the smallest space- Approved for pressures up to 0.8 bar- Possible on request special design for up to 5 bar pressureThe system is based on a fin package with 21 copper tubes and pressed-on stainless steel flanges factory.

On both sides of the fin package Delrin terminals facing the stainless steel flanges with a sealing gasket and bolted to this. In the Delrin terminal connection threads are attached and have deepened over the threaded a round pocket. In this case, a connection adapters are plugged in to two radiators without bothersome hose connections to be mounted directly flush aneinader. The orientation of the radiator to each other determines the flow of coolant: Laterally next interco
