EKWB EK-Annihilator Pro CPU Waterblock, Narrow ILM

The EK-Annihilator Pro Narrow ILM is a dedicated server grade water blockKEY_TAB with 1U chassis compatibility which was specifically developed forKEY_TAB LGA 3647 (Socket P) Intel® processors. The new server/workstation-grade CPU block is 1U chassis type compatible for use with server racks. This enterprise cooling solution is built for performance, reliability, serviceability and no compromises in mind.

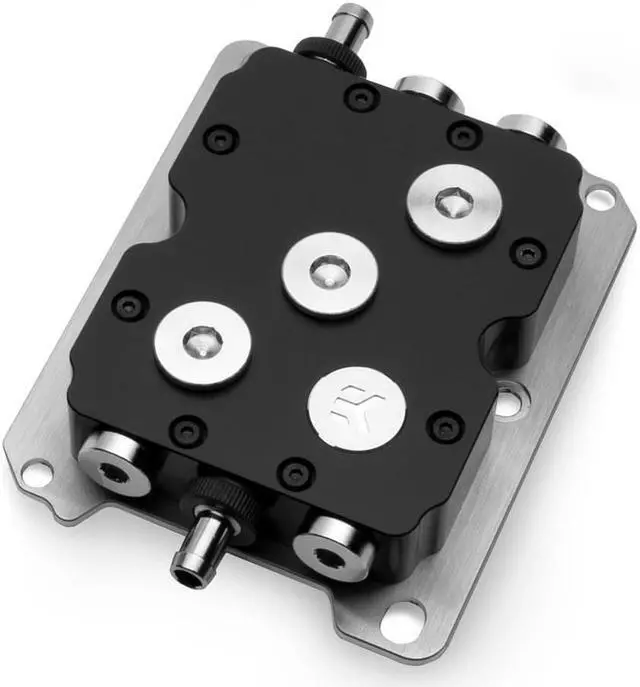

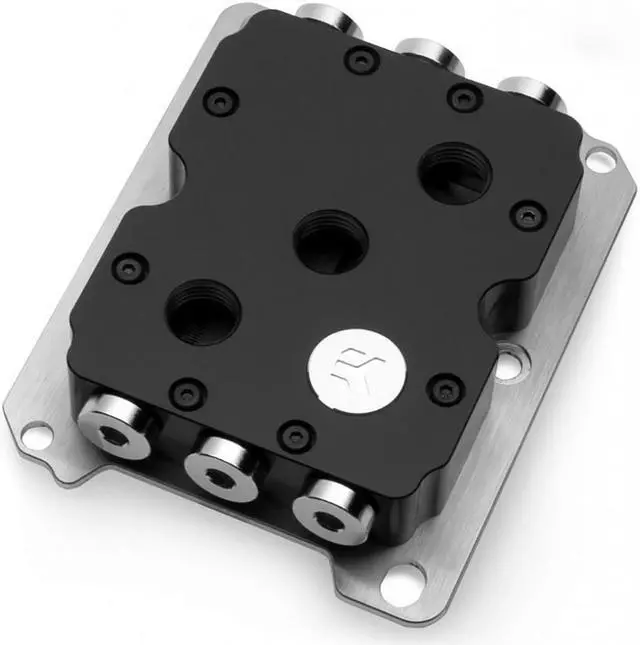

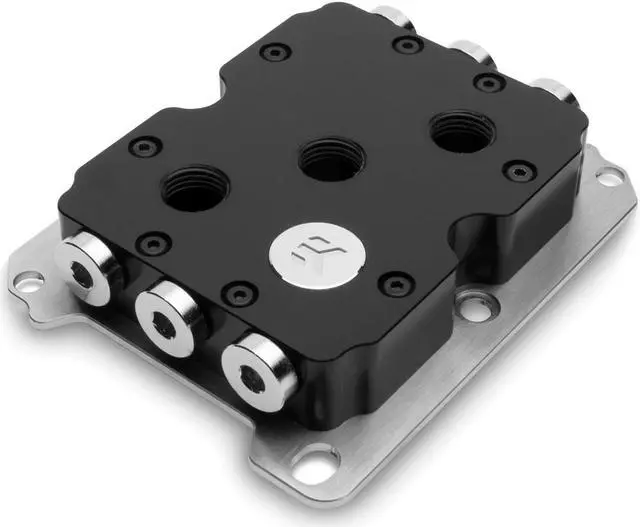

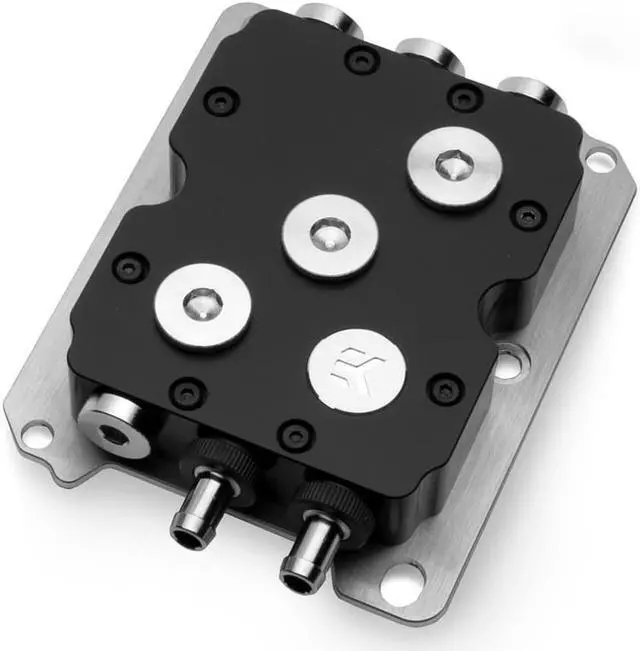

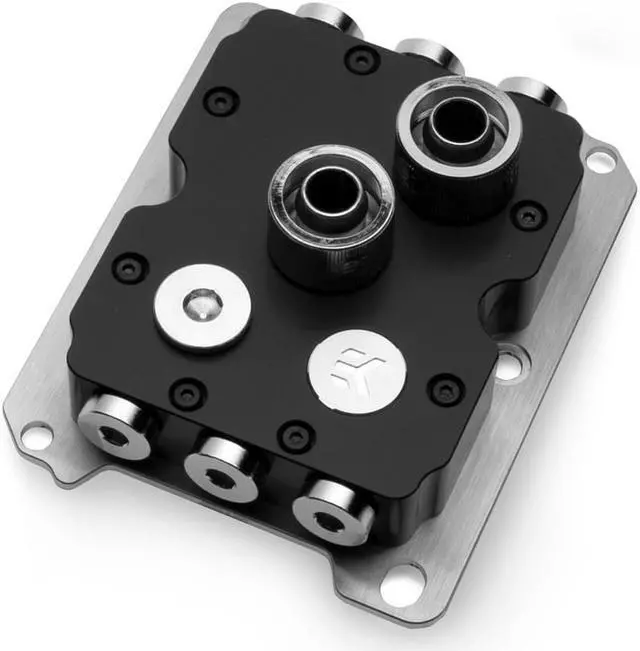

The EK-Annihilator PRO Narrow water block features a total of 9 ports, which allow for versatile connectivity options. Three ports located on the top are standard G1/4″ threaded and are intended for workstations and taller server racks, while the 6 side ports, for low profile usage, are G1/8″ threaded.

EK-Annihilator PRO Narrow water block features a precisely machined copper base (‘cold plate’) which is made from purest copper available on the market and is treated with nickel electroplating. The top is made from CNC machined from thick and sturdy black POM Acetal and the CPU Square ILM and Narrow ILM hold-down brackets are made of laser cut stainless steel.

Intel®KEY_TAB CPUKEY_TAB socket compatibility:

• LGA 3647KEY_TAB (Socket P) Square ILM

Enclosed:

• EK-Annihilator Pro Narrow ILM CPU Water Block
• Necessary mounting screws, nuts, and washers
• 3xKEY_TAB EK plug G1/4”
• 6xKEY_TAB EK plug G1/8”
• 2x HFB Barb FittingKEY_TAB 6mm
• 2x HFB Barb FittingKEY_TAB 10mm
• 2x Barb clamp 6mm
• 2x Barb clamp 10mm
• 6mm Allen key
• 5mm Allen key
• 4mm Allen key
• 3/16mm Allen key
• Thermal grease (1g)

PLEASE NOTE:

1U chassis compatibility is guaranteed only with side G1/8" ports being used.
The CPU block is equipped only with Narrow ILM mounting hold down.
This product should not be installed with any aluminum Fluid Gaming parts.

Model: 3831109813911
