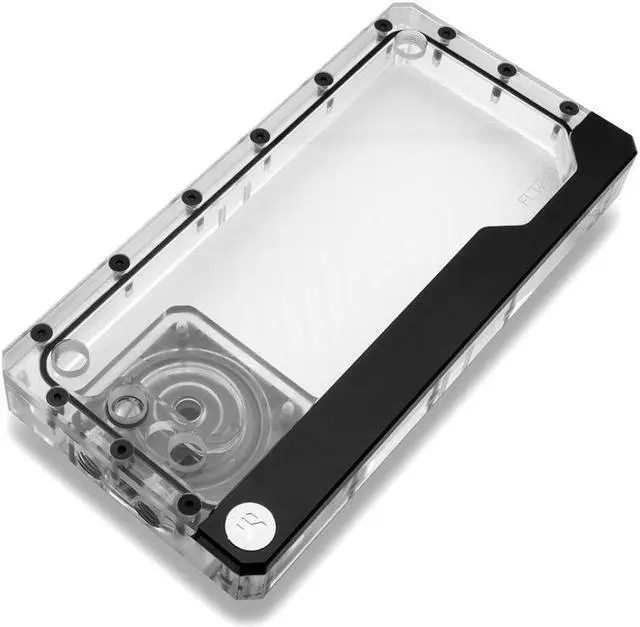

EKWB EK-Quantum Kinetic FLT 240 Pump/Reservoir Combo, DDC PWM, D-RGB, Plexi

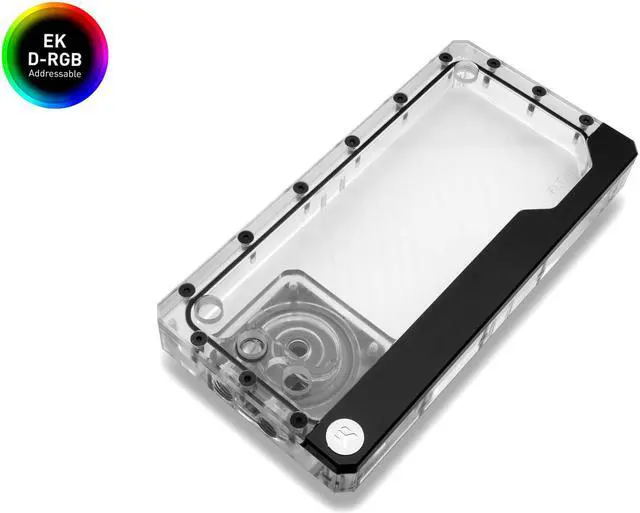

All new Flat (FLT) series EK-Quantum Kinetic FLT DDC pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine DDC pump! The reservoir is equipped with a total of six G1/4 ports so that users can choose the most optimal setup for their liquid cooling loops.

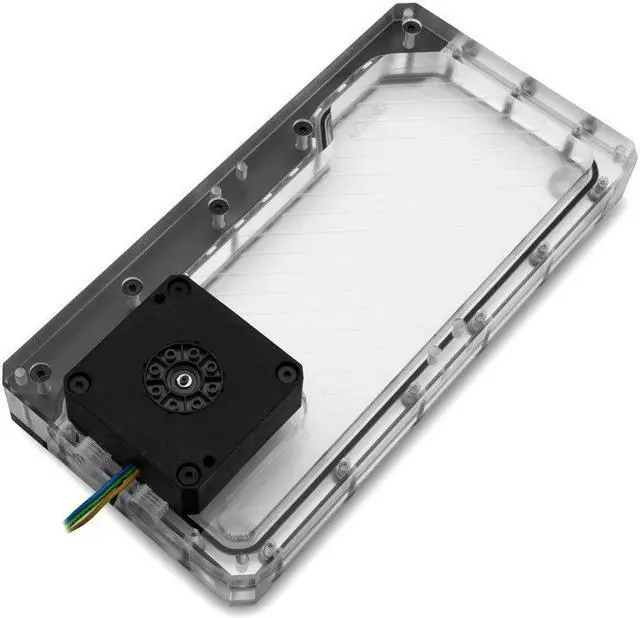

EK-Quantum Kinetic FLT DDC series pump-reservoir units are equipped with genuine DDC 4.2 pumps, made in Europe, which are capable of delivering flow rates of 1000 liters per hour with a maximum head pressure up to 5.2 meters!

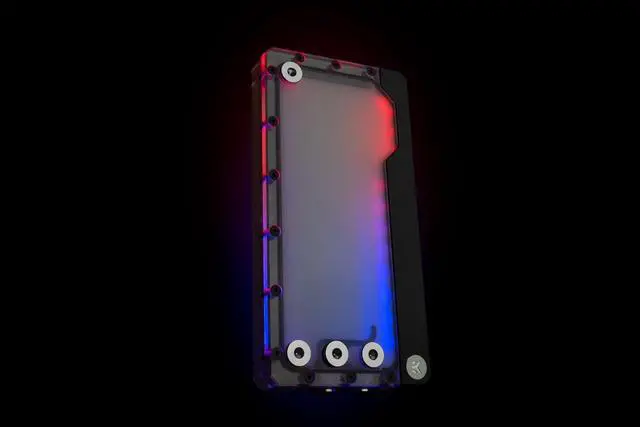

Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible.

Technical specifications:

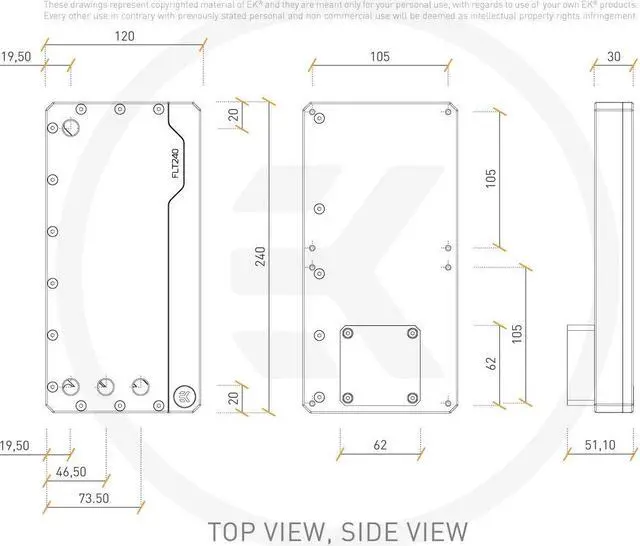

- Size (HxWxT): 245x120x58mm (with mounting system)
- Capacity: ~265ml
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties:

- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.2 m
- Maximum flow rate: up to 1000 L/h
- Maximum liquid temperature: 60 C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: SATA Power Connector and 4-Pin PWM FAN connector

Operational regime:

- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

- EK-Quantum Kinetic FLT 120 PWM D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 G1/4 Plugs
- 1 Allen key for reservoir holders Model: 3831109819760
