EK-Quantum Momentum VRM Bridge ROG Maximus XII Formula D-RGB - Plexi

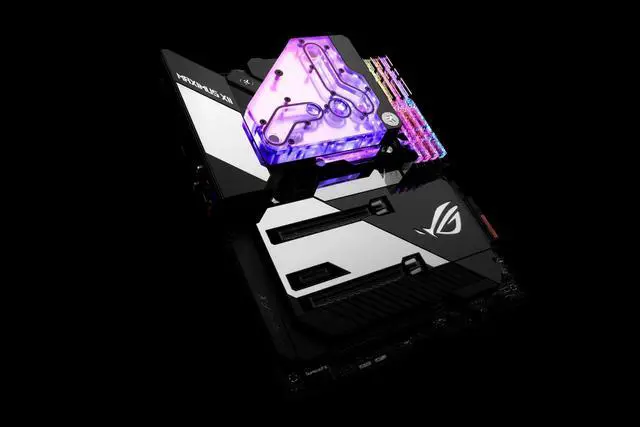

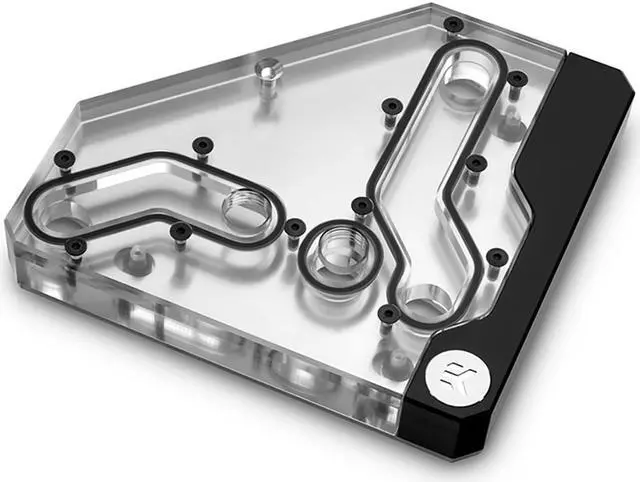

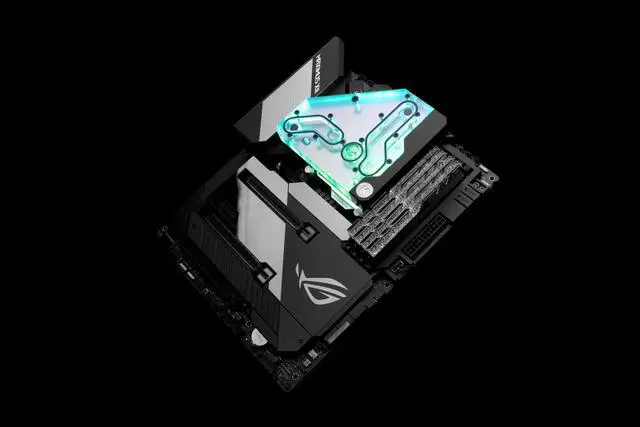

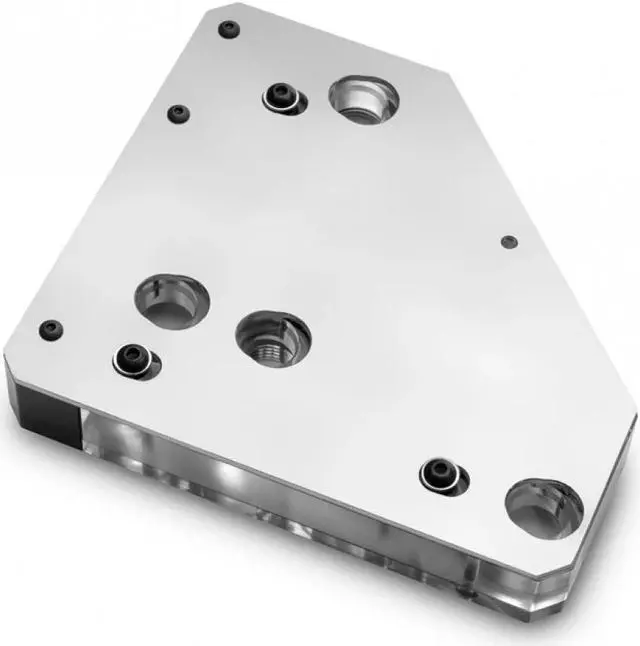

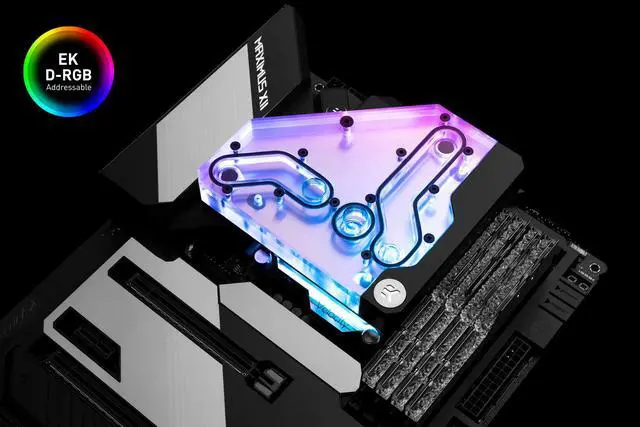

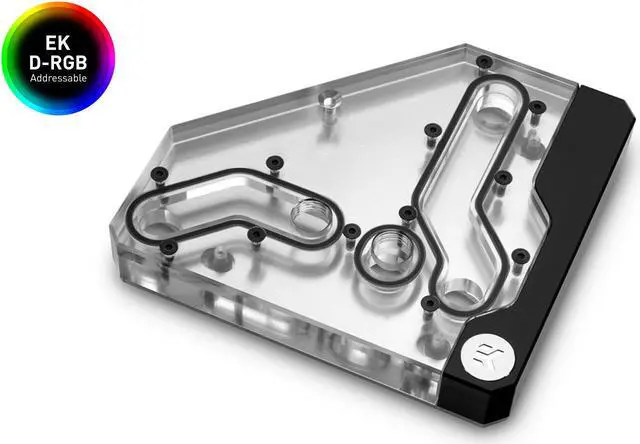

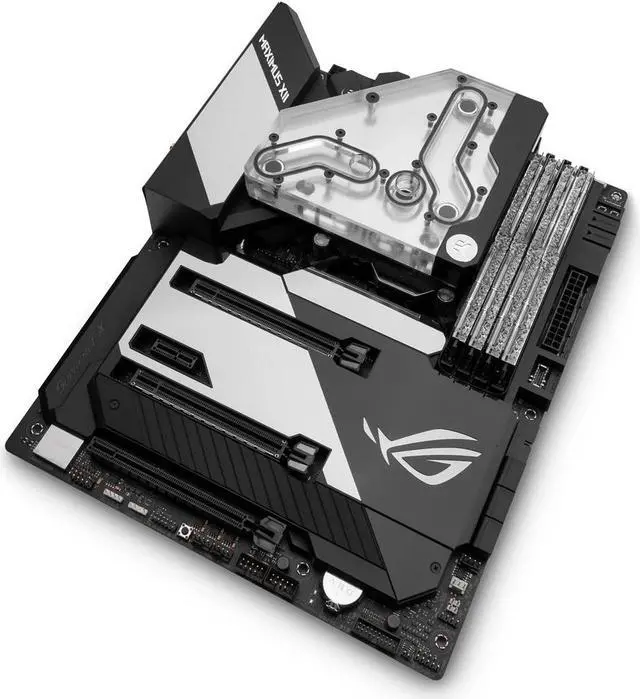

EK, the leading liquid cooling gear manufacturer, is ready to support the newly-released ROG Maximus XII Formula motherboard with a unique, patent-pending liquid distribution VRM Bridge. The EK-Quantum Momentum VRM Bridge ROG Maximus XII Formula D-RGB is a purpose-engineered connection piece that bridges the existing integrated CrossChill EK III VRM cooling and the CPU water block into a single entity.

The EK-Quantum Momentum VRM Bridge is the only off-the-shelf solution that will bridge multiple liquid cooling components with a unique mounting mechanism. It is specially made for the ROG Maximus XII Formula, and upgrading from any previous motherboard will be easy since you’ll be able to reuse any of the existing Intel-socket-compatible EK-Quantum Velocity CPU water blocks.

The voltage regulating module cooler of the Formula motherboard has two operating regimes – the CrossChill EK III lets you cool the VRM with either air or water. Water cooling will provide lower temperatures, and in doing so, improve stability during high overclock frequencies.

A unique mounting and locking solution have been developed exclusively for the EK-Quantum Momentum VRM Bridge. The user-friendly locking system is operated in just a few simple steps. This allows for the CPU water block and the integrated ROG Maximus XII Formula VRM cooling block to be connected in a few minutes. The EK Bridge solution simplifies the whole process.

This monoblock bridge solution is only compatible with ROG Maximus XII Formula motherboard and EK-Quantum Velocity CPU water blocks.

Technical specifications:

- RGB connector 3-pin 5V digital LED header (Pinout: +5V, D, Blocked, G)

Enclosed:

- EK-Quantum Momentum VRM Bridge ROG Maximus XII Formula
- 4x Push-In Barb Fittings
- A small pouch of grease
- Mounting mechanism (incl. required Allen keys)
