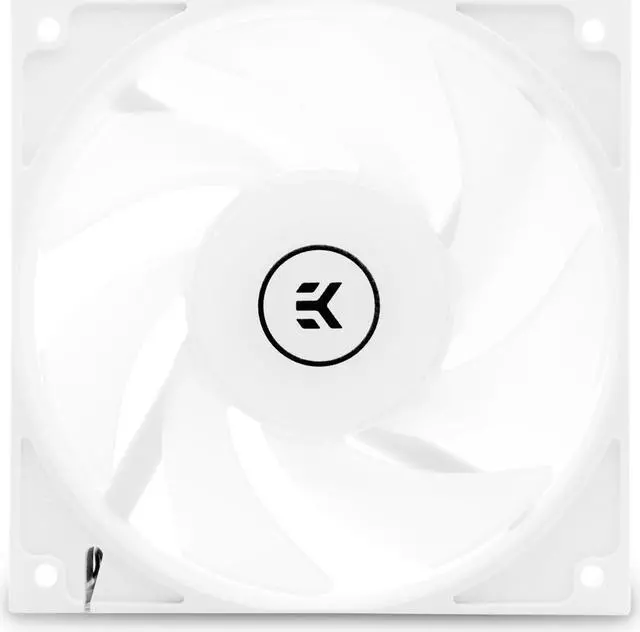

EK-Vardar EVO 120ER D-RGB (500-2200 RPM) - White

The EK-Vardar EVO 120ER D-RGB - White is a white-framed version of the high-static pressure computer cooling fan, designed and built primarily for highest-performance computer liquid cooling systems. Developed in-house and first introduced in 2014, the EK-Vardar fan is now also available as EK-Vardar EVO 120ER D-RGB. Besides the addressable D-RGB lighting that can be daisy-chained, the new fan also packs the Extended Range (ER) of the PWM operation feature and the special Start-Stop function which brings a true 0dB experience for the absolute silent fan operation. EK-Vardar EVO 120ER D-RGB is simply the best choice of addressable RGB fan for computer radiator cooling as it provides unmatched performance throughout the entire operating range.

The perfectly balanced milky colored 7-blade impeller design is optimized for light dispersion and high-pressure operation while maintaining the low noise profile throughout the whole operation range of the fan. Under the motor hub, there is a total of 9 LEDs making this one of the brightest D-RGB fans on the market, ensuring perfect light diffusion at broad daylight as well.

Mechanical and electrical specifications:

- Maximum speed: 2200 RPM (+/- 10%)
- Rated Voltage: 12V DC
- Power Draw: 2.16W
- LED Power Draw: ~0.7W (0.14A)
- PWM Duty Cycle: 25-100% - ER (Extended Range)
- Connector: 4-pin PWM header
- Shaft bearing: Dual-Ball bearing
- Bearing durability: 50.000 hrs @ 40°C (MTBF)
- Dimensions: 120 x 120 x 25 mm
- Black cable length: 400 mm + 100 mm RGB daisy-chain branch
- D-RGB connector classic 3-pin (+5V, Data, Empty, Ground)

Performance characteristics:

- Max Air Flow: 77 CFM = 131 m³/h
- Static Pressure: 3.16 mm H2O = 31 Pa
- Noise Level: 33.5 dBA
