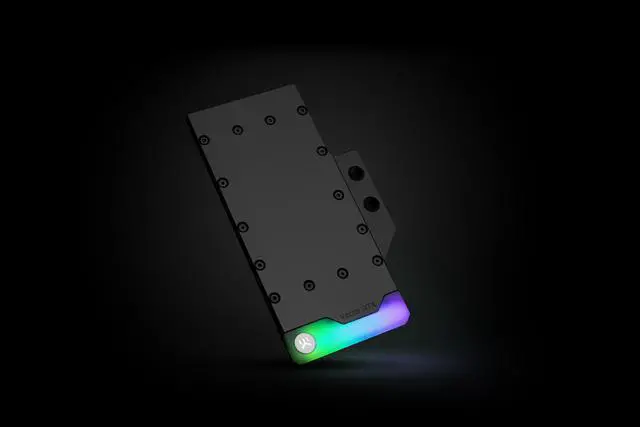

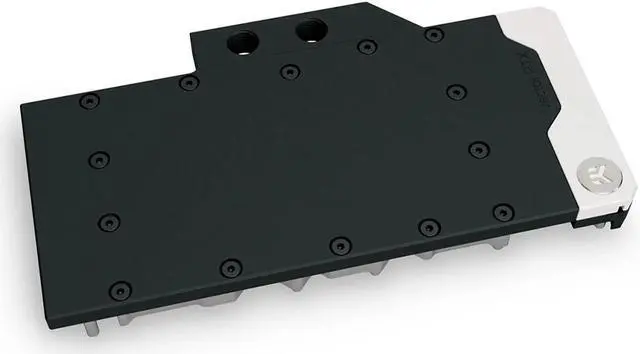

EK-Quantum Vector RE RTX 3080/3090 D-RGB - Nickel + Acetal

EK-Quantum Vector RE RTX 3080/3090 is an updated design of the 2nd generation Vector GPU water block from the EK® Quantum Line. EK-Quantum Vector RTX RE 3080/3090 water block is compatible with most reference design (not Founders Edition) GeForce RTX 3080/3090 graphics cards.

The Vector RE water block directly cools the GPU, VRAM, and the VRM as a cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing inside of them.

The water block uses an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance.

Fin array is populated by 27 microfins with 0.5mm wide microchannels that provide optimal cooling performance. This water block boasts a total of 5 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers.KEY_TAB

These 2nd generation Vector GPU water blocks also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed.

Enclosed:

- EK-Quantum Vector RE RTX 3080/3090 water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm/8mm/9mm)
- Thermal pads/paste

Technical Specification:

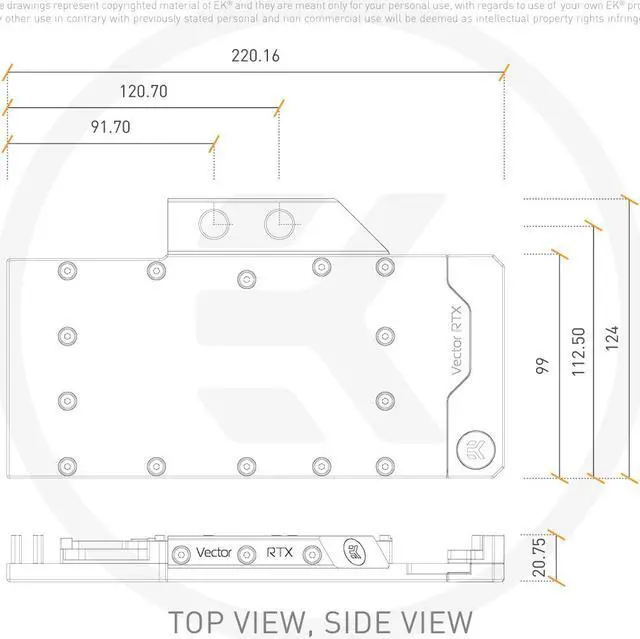

- Dimensions: (LxHxW) - 220x124x20.5mm
- D-RGB cable length: 500mm
- D-RGB connector standard 3-pin
