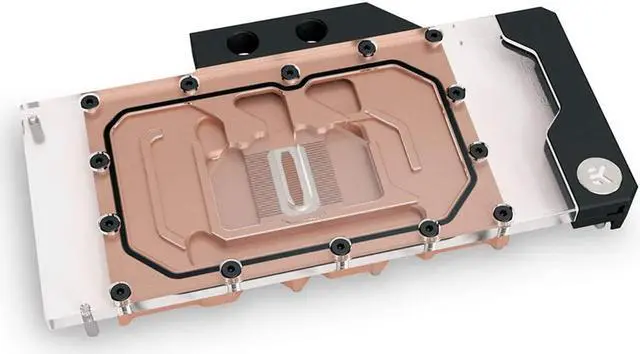

EK-Quantum Vector RE RTX 3080/3090 - Copper + Plexi

EK-Quantum Vector RE RTX 3080/3090 is an updated design of the 2nd generation Vector GPU water block from the EK® Quantum Line. EK-Quantum Vector RTX RE 3080/3090 water block is compatible with most reference design (not Founders Edition) GeForce RTX 3080/3090 graphics cards.

The Vector RE water block directly cools the GPU, VRAM, and the VRM as a cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of coil whine.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing inside of them. Additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block.

The EK-Quantum Vector RE Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

Fin array is populated by 27 microfins with 0.5mm wide microchannels that provide optimal cooling performance.

These 2nd generation Vector GPU water blocks also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed.

Enclosed:

- EK-Quantum Vector RE RTX 3080/3090 water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

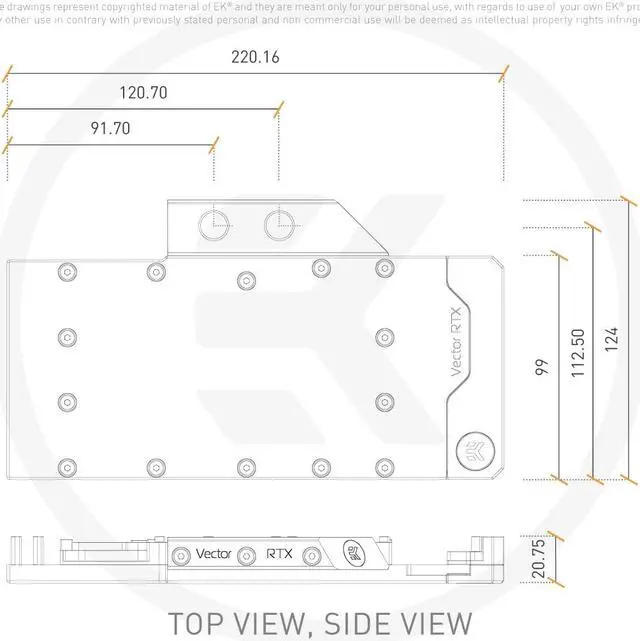

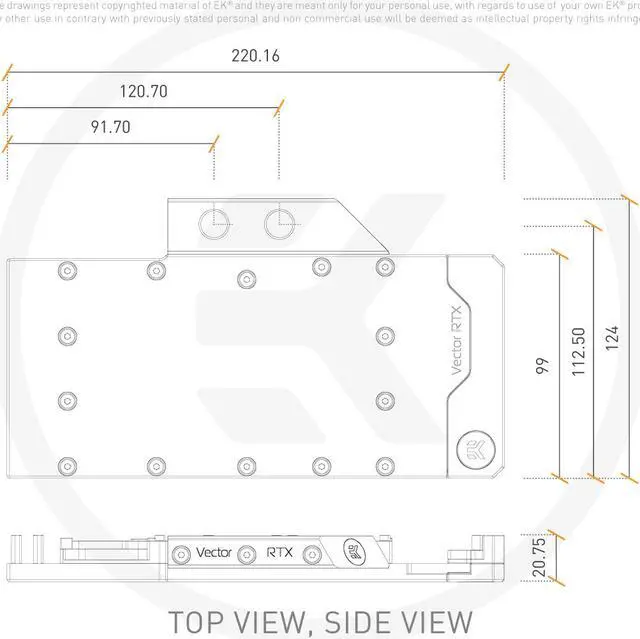

- Dimensions: (LxHxW) - 220x124x20.5mm
