EK-Quantum Vector FE RTX 3080 D-RGB - Black Special Edition
- Special Edition EK Water Block for Nvidia FE GeForce RTX 3080: The EK-Quantum Vector FE RTX 3080 D-RGB water block enclosure is the most complex GPU cooling solution developed by EK to date.

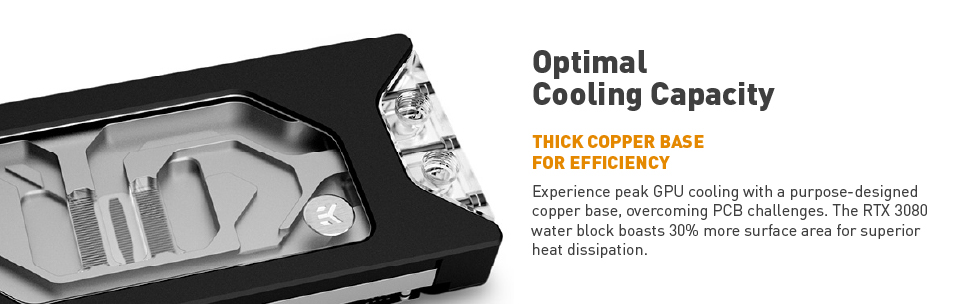

- The water block is purpose-designed with an extremely thick copper base for high-performance, allowing it to clear all components of the densely-packed PCB and adding more heat capacity in the process.
- iF Design Award Winner: EK-Quantum Vector FE Special Edition water blocks are the recipients of the renowned iF Design Award.

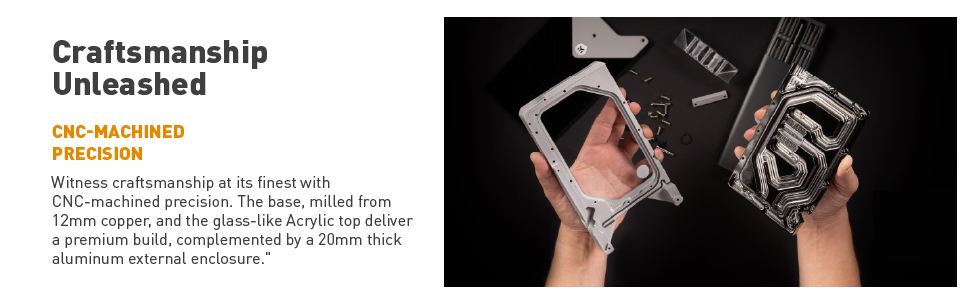

- A Testament to the Build Quality: Like the Magnitude CPU water block, the entirety of this water block is CNC-machined without mass-production techniques. The block's base is milled out of a 12 mm thick piece of pure electrolytic copper sourced from Europe, which is then nickel-plated, while its top is CNC-machined out of a glass-like cast Acrylic material.
- Cooling Engine: This Special Edition Vector water block directly cools the GPU, VRAM, and the VRM.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

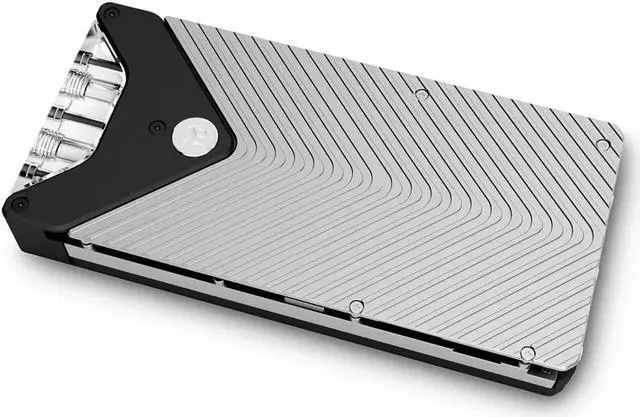

This is a Special Edition Black EK water block enclosure engineered for the latest NVIDIA® GeForce® RTX ™ 3080 Founders Edition graphics cards. The cooling engine is the evolution of the 2nd generation EK® Quantum Vector GPU water blocks.
The external enclosure is machined out of a 20 mm thick solid piece of aluminum. The included single-slot I/O shield is supplied with special screws for attaching it to the aluminum enclosure. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed.

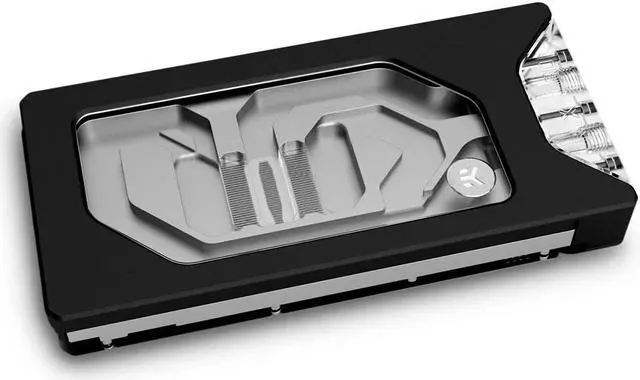

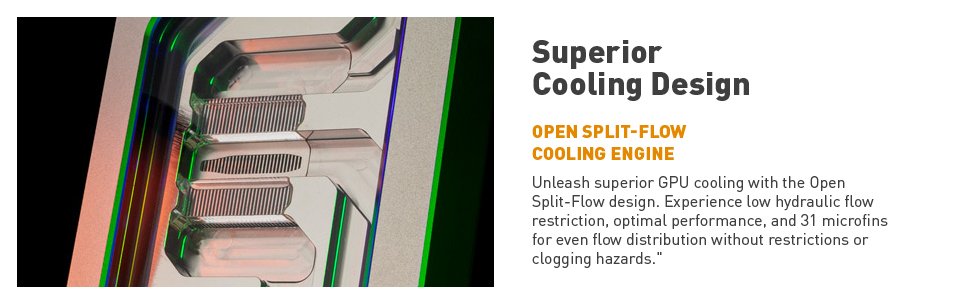

This Special Edition Vector water block directly cools the GPU, VRAM, and the VRM as cooling liquid is channeled right over these critical areas. The integrated Open Split-Flow cooling engine design proved to be a superior solution for GPU water blocks.
The jet plate and fin structure geometry are optimized to provide even flow distribution with minimal losses and optimal performance.? Fin array is populated by 31 microfins with 0.6 mm wide microchannels.
This water block comes with an included backplate that makes sure the entire graphics card is enclosed and not at all visible. It's made of anodized aluminum in a black finish.
The water block is delivered with a set of connection terminals, allowing users to swap them out based on their needs. The new design allows terminals to be directly attached to the copper cold plate of the GPU water block.

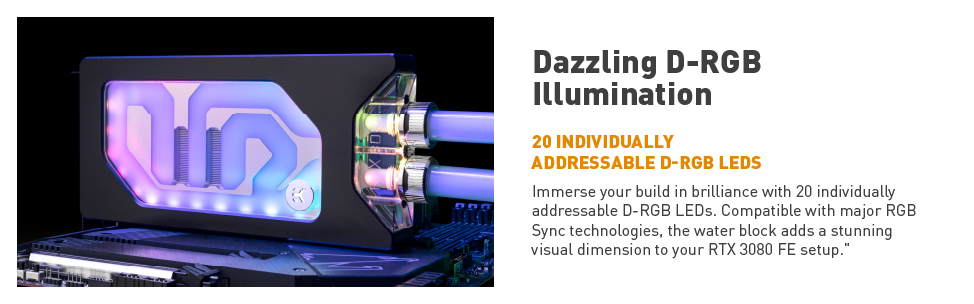

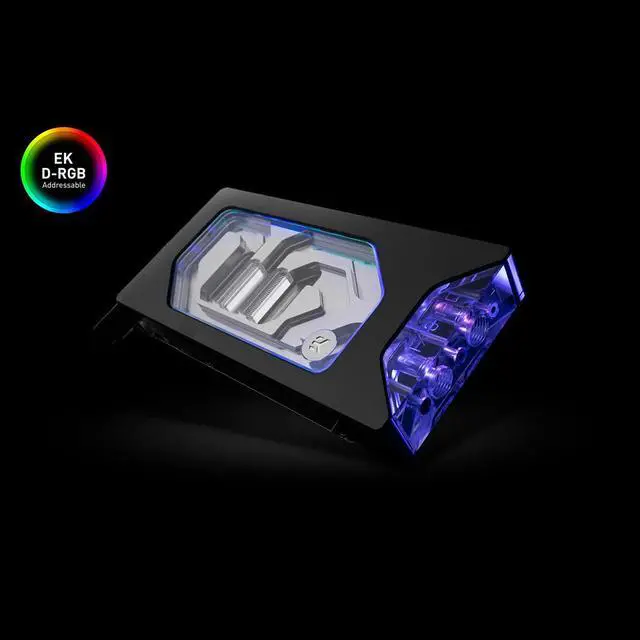

This water block boasts a whopping 20 individually addressable D-RGB LEDs that illuminate both the water block's interior and the terminal itself. It is compatible with all popular RGB Sync technologies from major motherboard manufacturers.?
Technical Specification:

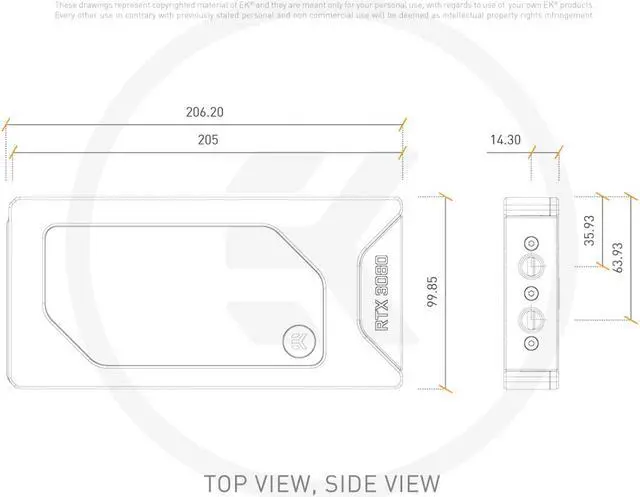

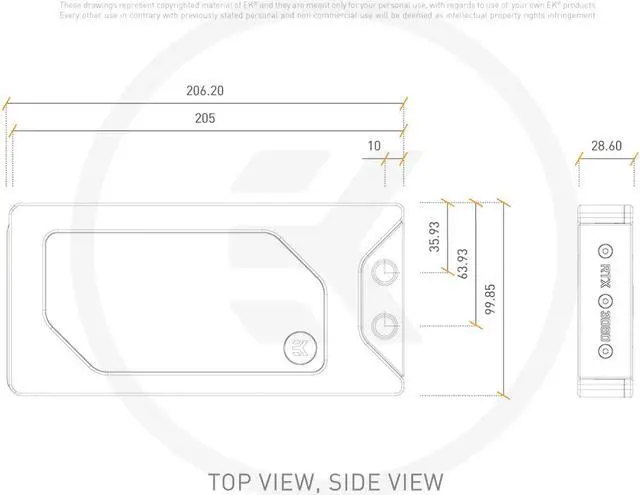

- Dimensions: (LxHxW) - 205x100x29mm
- D-RGB cable length: 500mm
- D-RGB LED count: 20
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
