EK-Quantum Vector Trio RTX 3080/3090 D-RGB - Nickel + Acetal

  • An EK water block for Trio RTX 3080 and 3090: EK-Quantum Vector Trio 3080/3090 D-RGB water block is compatible with Trio and Suprim RTX 3080 and 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), MOSFETs, and chokes in the VRM.
  • The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks.
  • The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals.
  • The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 9 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers.
  • EK recommends the purchase of a retention backplate, especially for the 3090 models of graphic cards.
Choking Hazard Small parts. Not for children under 3 years.
+
+
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

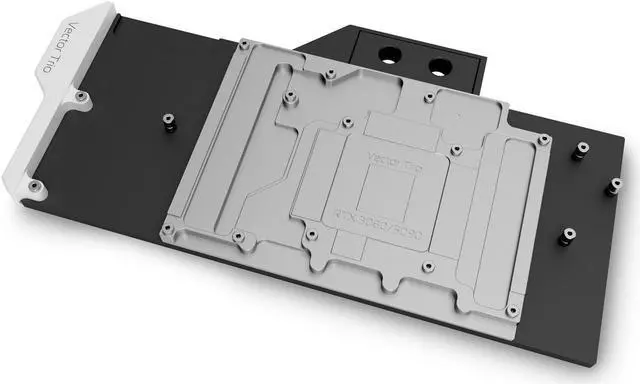

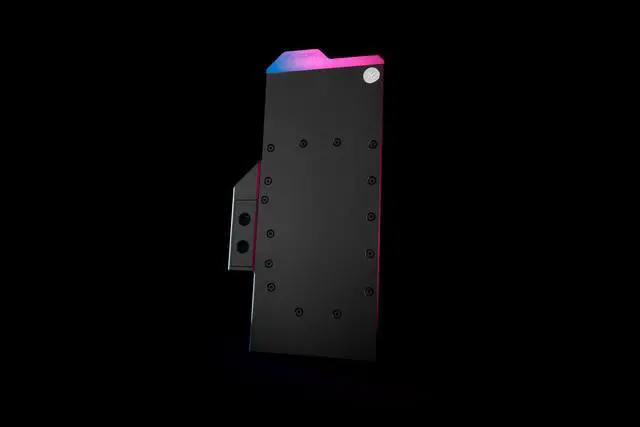

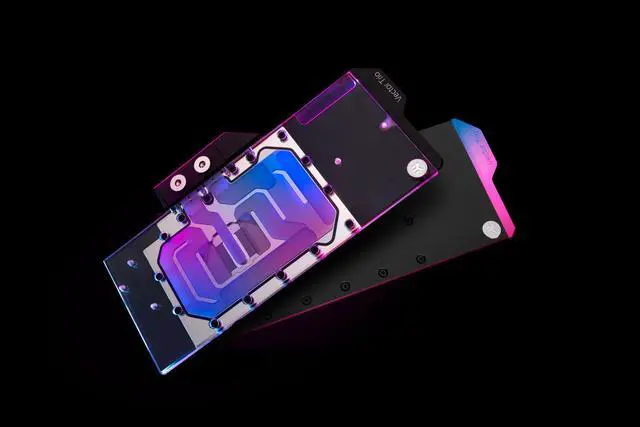

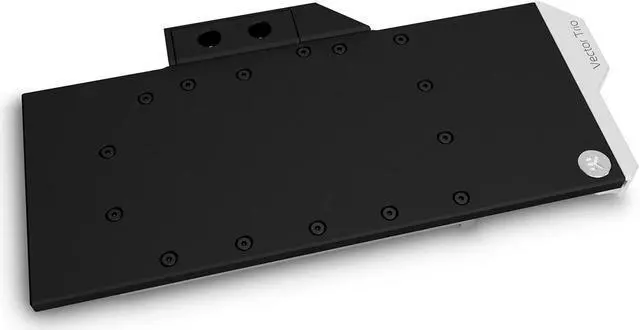

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for MSI® Trio and Suprim RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere™ architecture.

The Vector water block actively cools the GPU, VRAM, MOSFETs, and chokes in the VRM. The water block contacts every single inductor in the VRM area to suppress any potential coil whine.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing inside of them. Additionally, this new design allows the copper cold plate to extend almost the entire length of the PCB.

The waterblock uses an Open Split-Flow cooling engine design. It is characterized by low hydraulic flow restriction. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

The fin array is populated by 30 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

These 2nd generation Vector GPU water blocks also feature acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed.
This water block boasts a total of 9 individually addressable RGB LEDs, and is compatible with RGB sync technologies from all major motherboard manufacturers.

Enclosed:

- EK-Quantum Vector Trio RTX 3080/3090 D-RGB water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

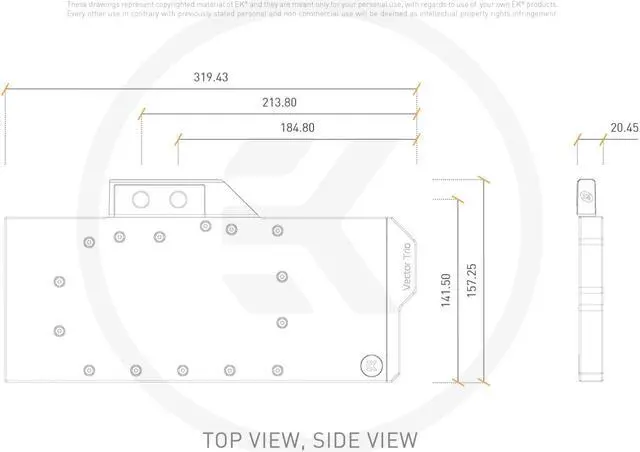

- Dimensions: (LxHxW) - 320x157x20.5mm
