EK-Quantum Vector Strix RTX 3070 D-RGB - Nickel + Acetal

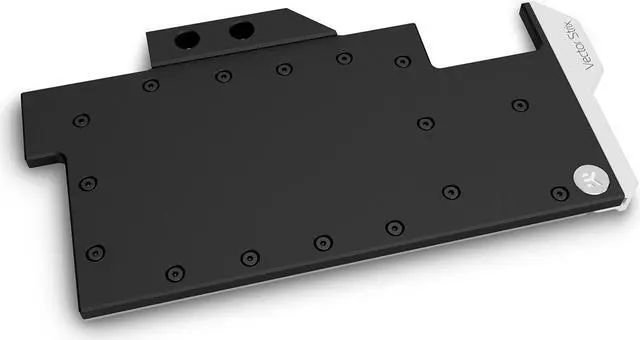

EK-Quantum Vector Strix RTX 3070 D-RGB water block is compatible with ROG Strix RTX 3070 graphics cards. The water block actively cools the GPU, VRAM (on the front), MOSFETs in the VRM, PWM controller, and all chokes.

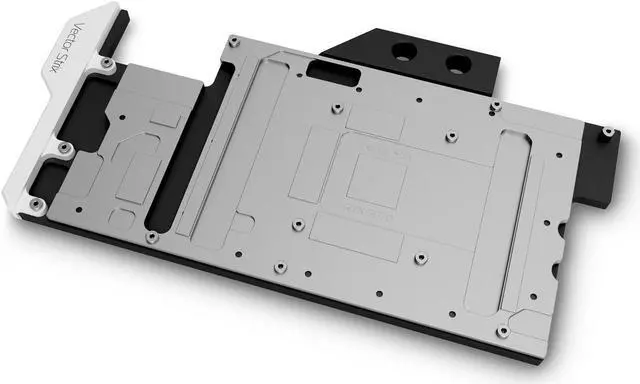

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing inside of them. Additionally, this new design allows the copper cold plate to extend almost the entire length of the PCB.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design. It is characterized by low hydraulic flow restriction. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

Fin array is populated by 28 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

These 2nd generation Vector GPU water blocks also feature plexi terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed.

The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 6 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers.

Enclosed:

- EK-Quantum Vector Strix RTX 3070 D-RGB
- Mounting mechanism with screw-in brass standoffs
- Mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads and grease

Technical Specification:

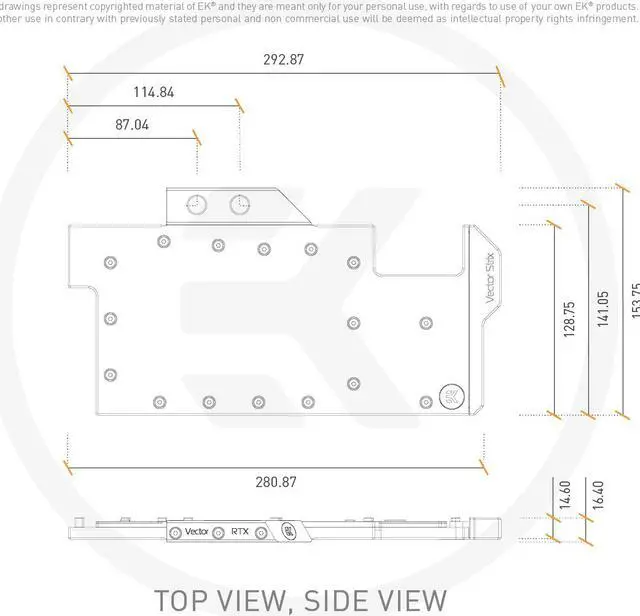

- Dimensions: (LxHxW) 293x154x16.5mm
- D-RGB cable length: 500mm
- D-RGB LED count: 6
- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
