EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB - Nickel + Acetal

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for AORUS® Xtreme and Master RTX 3080 and 3090 graphics cards based on the latest NVIDIA® Ampere architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator. An EK water block for Xtreme and Master RTX 3080 and 3090 EK-Quantum Vector Xtreme 3080/3090 D-RGB - Nickel + Acetal water block is compatible with Aorus Xtreme and Master RTX 3080 and RTX 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module).

EK water block for RTX 3080 and 3090 AORUS XTREME These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. EK water block for RTX 3080 and 3090 AORUS XTREME The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

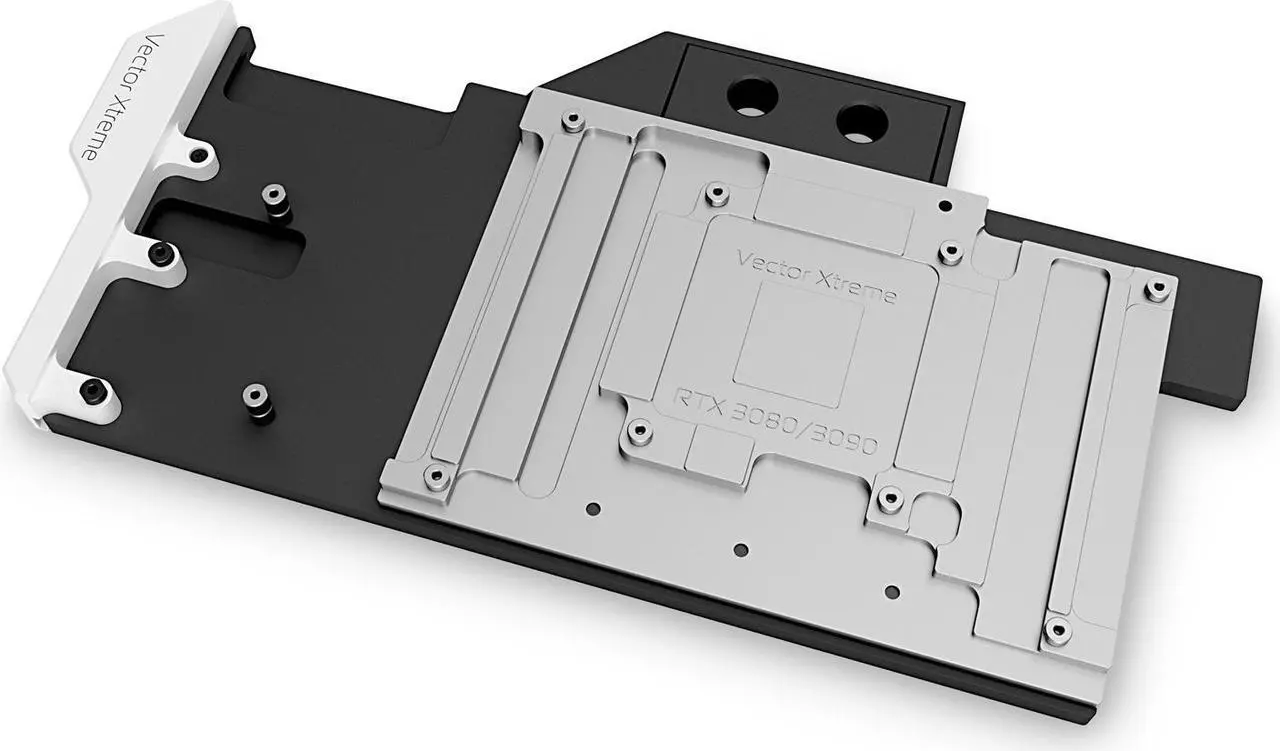

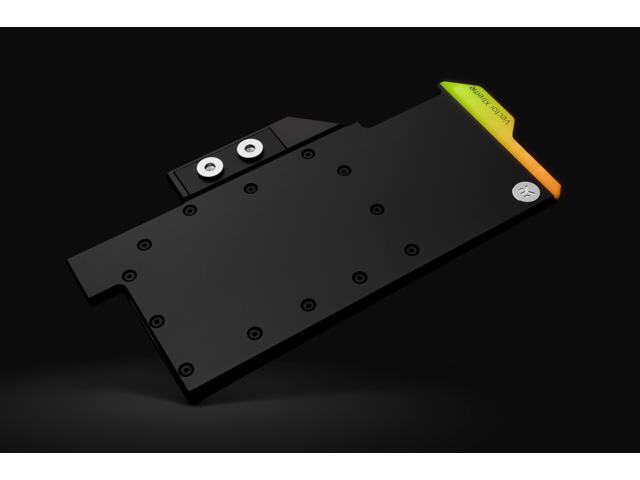

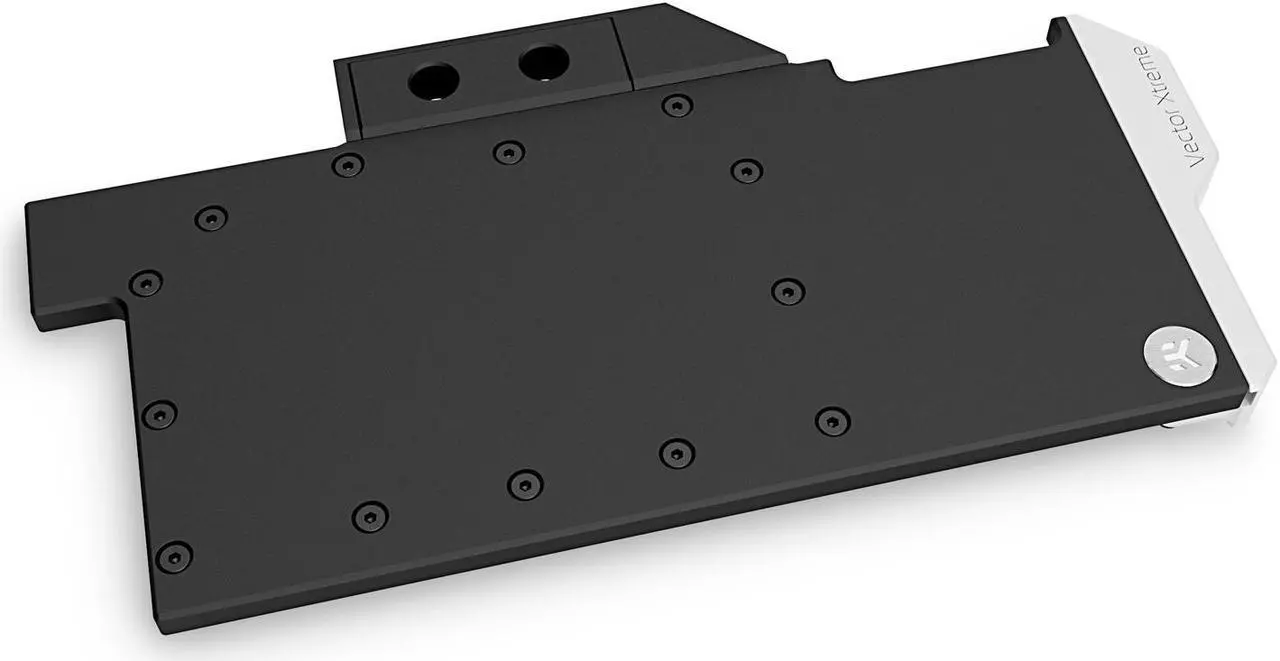

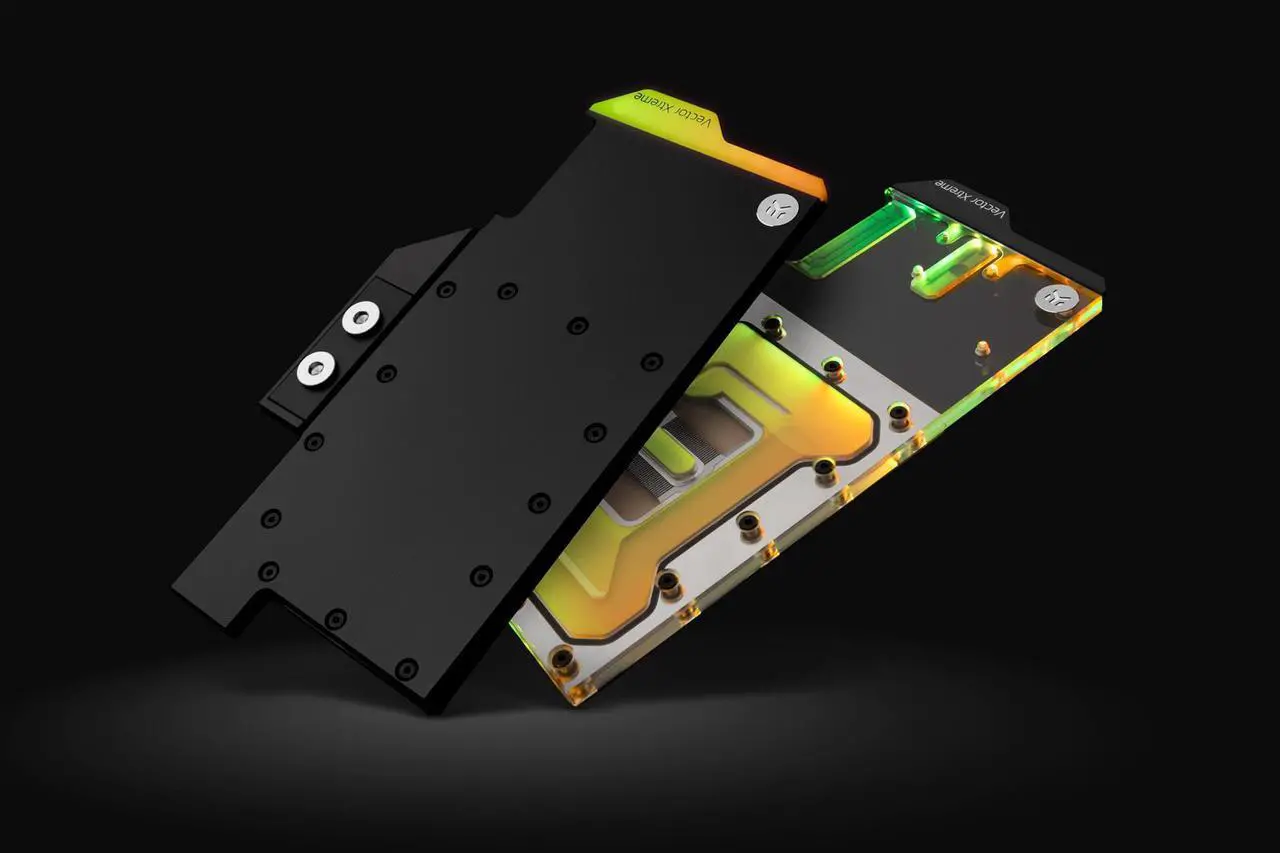

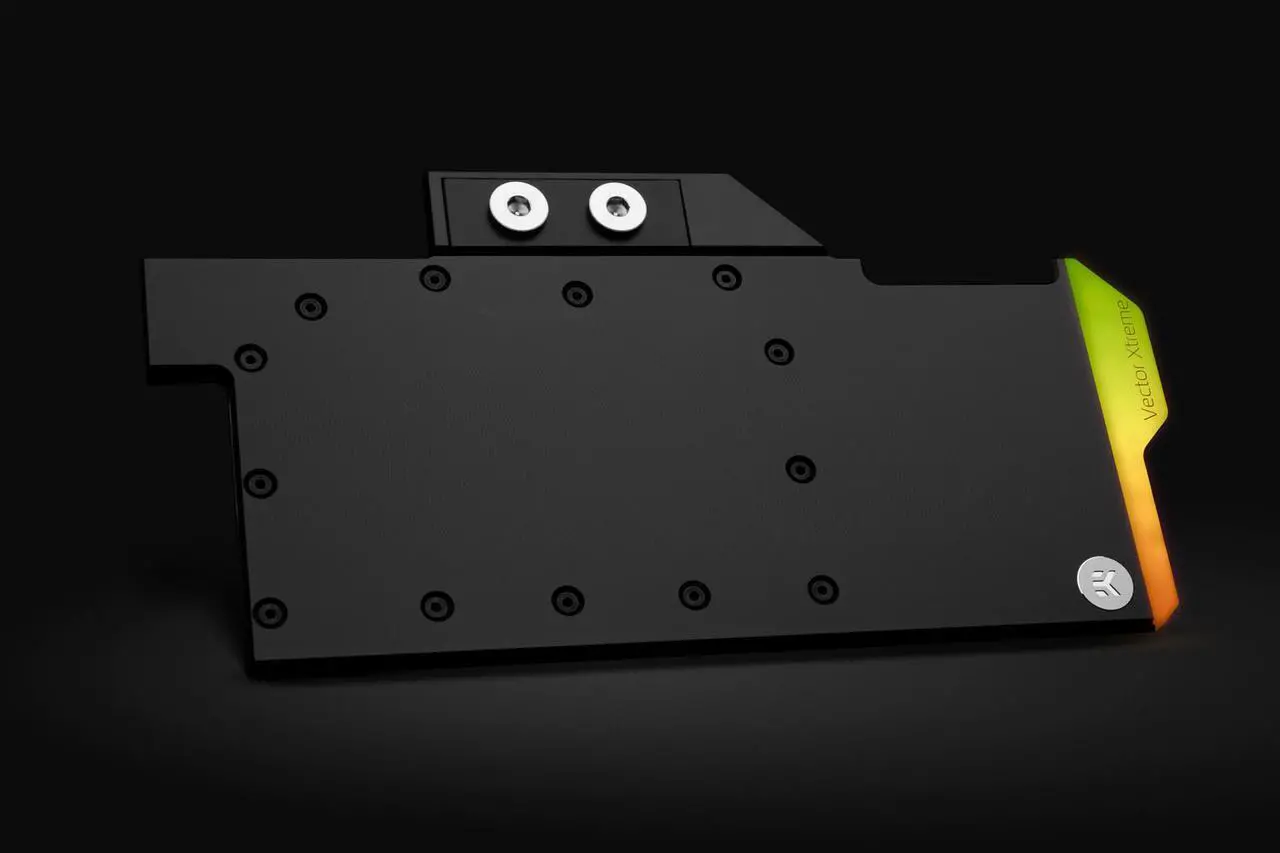

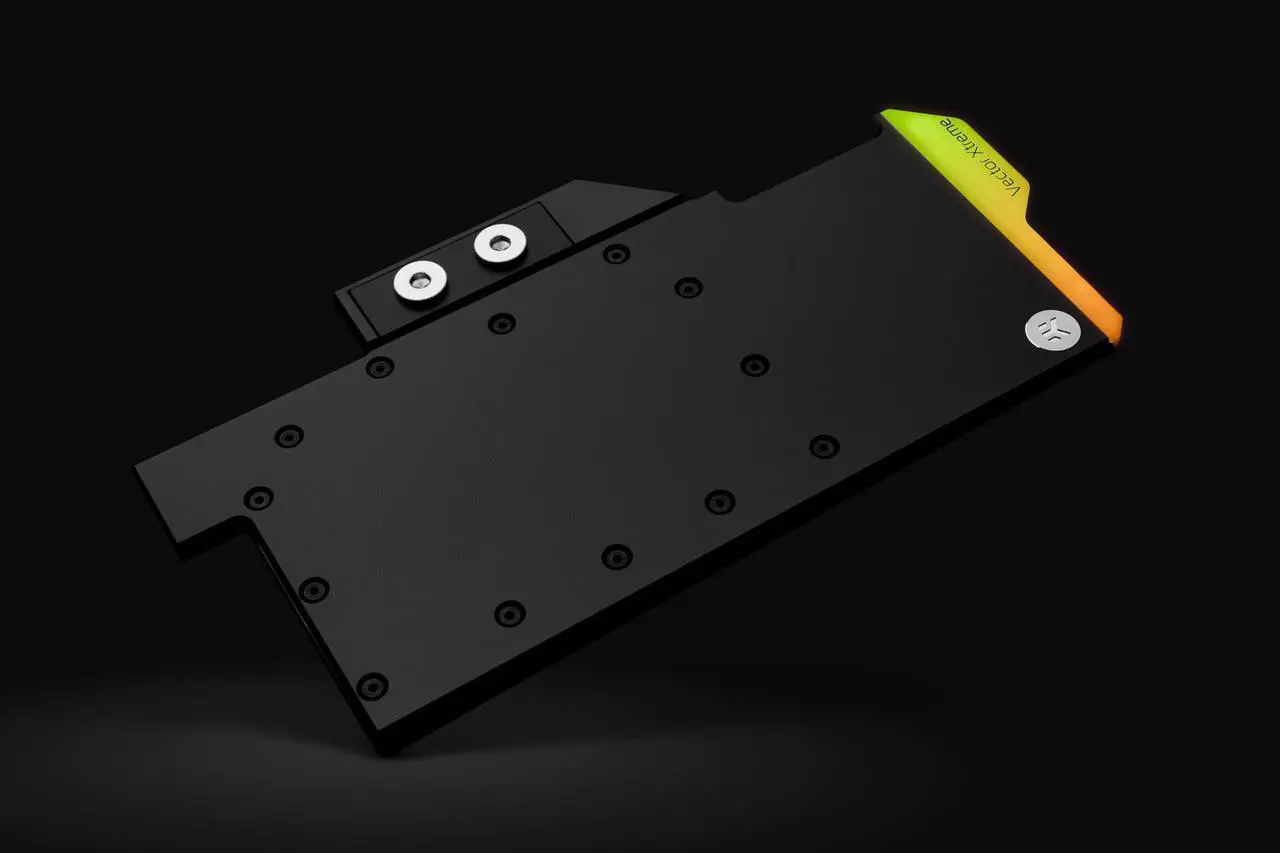

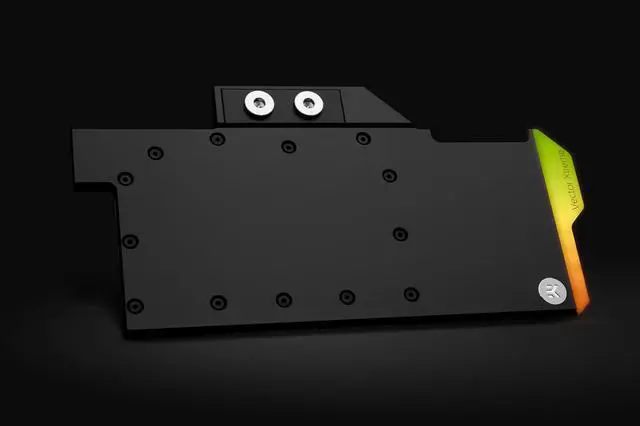

EK water block for RTX 3080 and 3090 AORUS XTREME The base of the block is CNC-machined out of nickel-plated high-grade copper, while its top is CNC-machined out of durable black POM Acetal. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure. D-RGB lighting on EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB water block EK Vector RGB compatibility The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers.

The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header. Backplate for the EK-Quantum Vector Xtreme 3080/3090 water block EK recommends the purchase of a retention backplate, especially for the 3090 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

Enclosed
EK-Quantum Vector Xtreme RTX 3080/3090 D-RGB series high-performance water block
Mounting mechanism with screw-in brass standoffs
Necessary mounting screws, nuts, and washers
2x Nickel plated brass plug G1/4
EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

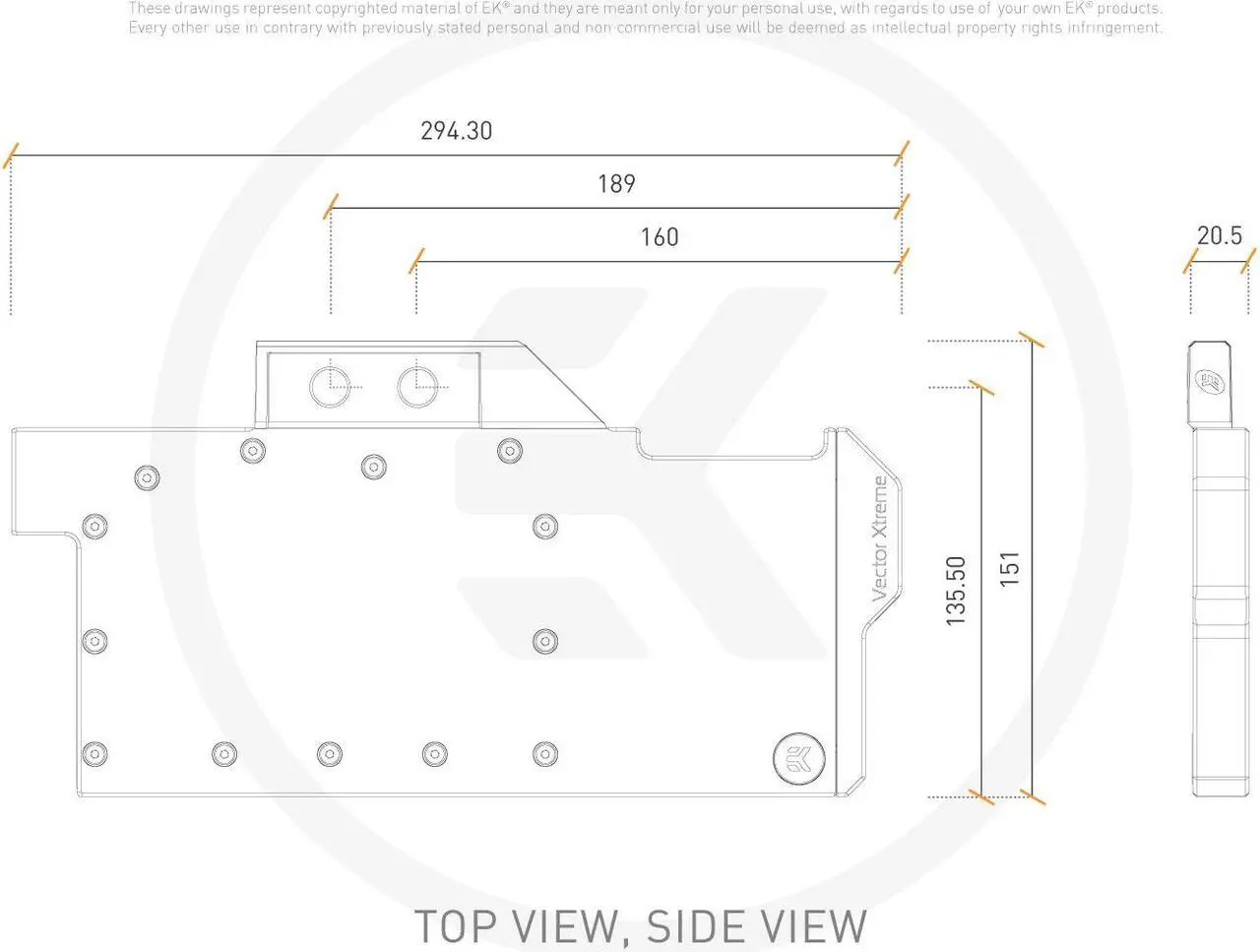

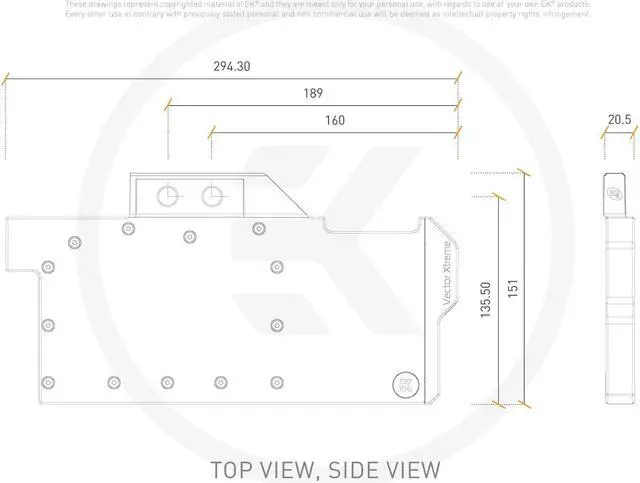

Dimensions: (LxHxW) - 295x150.5x20.5mm
