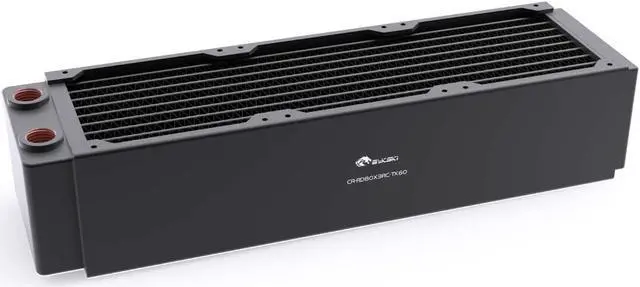

Bykski 80mm x 60mm RC Series Radiator, 80mm x 3, Triple Fan (CR-RD80X3RC-TK60)

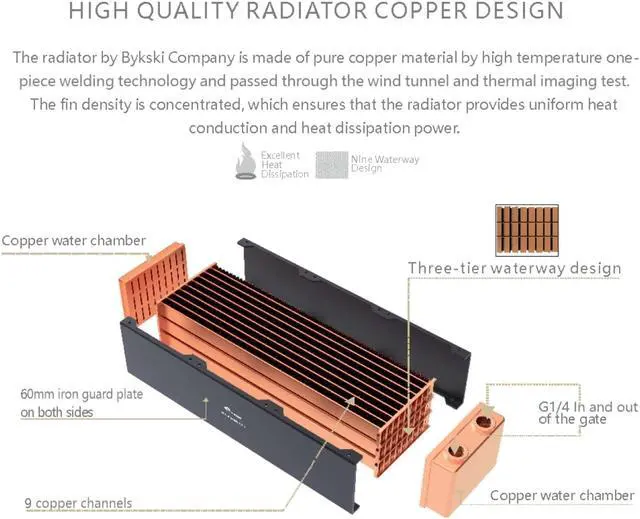

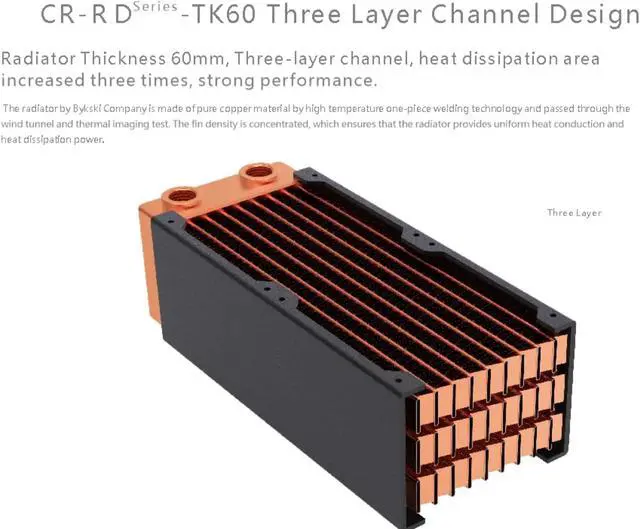

Bykski CR-RD80X3RC-TK60 radiator is designed as a single row of copper channels.KEY_TAB The thickness of the radiator is a massive 60mm whichKEY_TAB gives this radiator superior cooling power.KEY_TAB The water channels and wave fins are made of red copper with a thermal conductivity up to 401 w/(M.K.). There are 9 water channels aligned in a single row.

Features

• 9 Channel Design


• Industry Standard G1/4 Thread


• High Quality Copper Design

Specifications

• Material: Red Copper Channels + Fins / Iron side plates (not in contact with coolant)

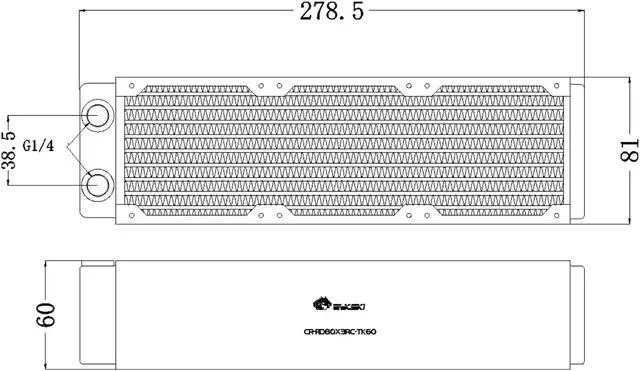

• Dimensions: 278.5mm x 81mm x 60mm


• Ports: 2


• Port Thread: G 1/4


• Mount Thread: M3


• Channels: 9KEY_TAB


• Pressure: 1.5bar

Compatibility

• Fans: 80mm

Included Parts

• 1xKEY_TAB Radiator


• 12x M3 x 30mm Screws
• 12x M3 x 5mm Screws

Warnings

Radiator is formed by a high temperature integrated soldering process. Due to this, there will be a slight color change in the copper, this is a result of the process and not rust.

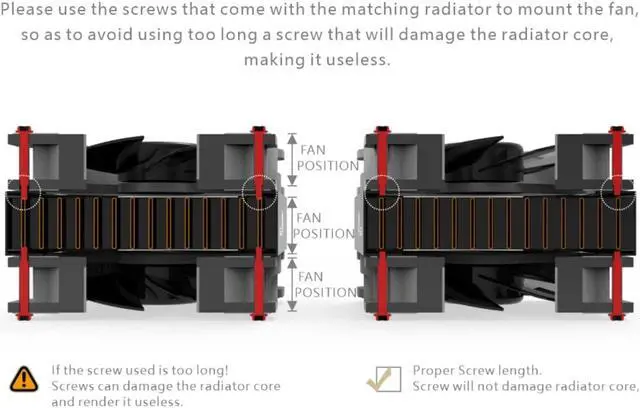

Please pay attention to the length of the screw.
If the screw is too long, it will break through the radiator and cause water leakage, voiding warranty. Radiator comes with M3X30mm screws suitable for fans of 25mm thickness.
If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included)
Not responsible for any hardware damage. Use at your own risk.
