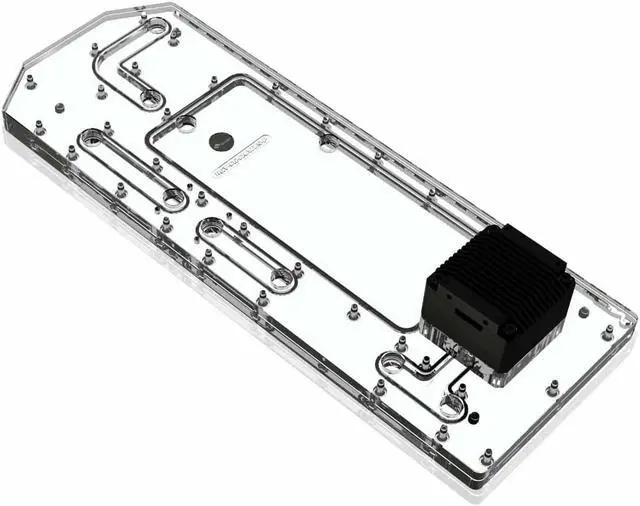

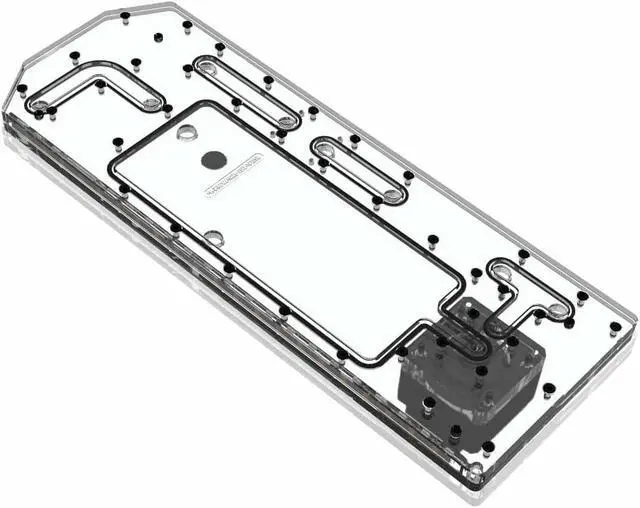

Bykski Distro Plate for COUGAR CRATUS PMMA w/ 5v Addressable RGB(RBW) (RGV-CG-CRATUS-P-K)

Bykski Distro (or Distribution) Plates are a unique way to outfit your loop. They are designed for a case-specific fit that allows for clean, parallel lines and stunning visual appeal.
This Distro plate is engineered to be used with an inline pump (included), allowing you to power your entire loop right from your loop's centerpiece.

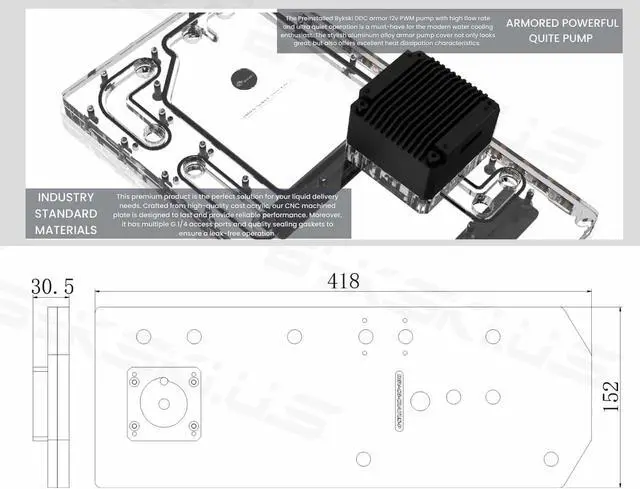

Specifications - Distro Plate

• Material: PMMA
• Thread: G 1/4

Specifications - DDC

• Heatsink Material: Aluminum
• Power: Standard 4-pin power connector and a PWM 4-Pin header
• Voltage Range: 10V - 15V DC
• MTBF (Mean Time Between Failure): 50,000 hours equivalent to 5 years of lifetime
• Maximum discharge:~ 132 GPH (600 LPH)
• Max RPM:5000
• Dimensions:62 x 62 x 58mm
• The performance will vary based on the cooling loop dynamic

Compatibility

• Compatible with (specific)
• Loop: Aluminum or Non-Aluminum
• Radiator: Designed for 30mm thick or less

Included Parts

• 1x Distro plate

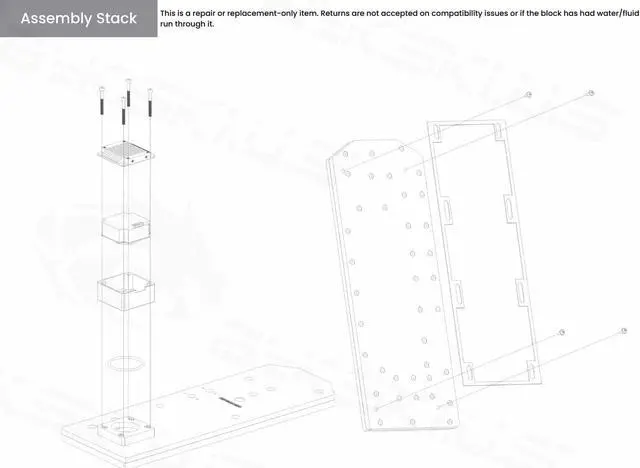

• Mounting Hardware
• DDC Pump w/ Heatsink (Black Color)

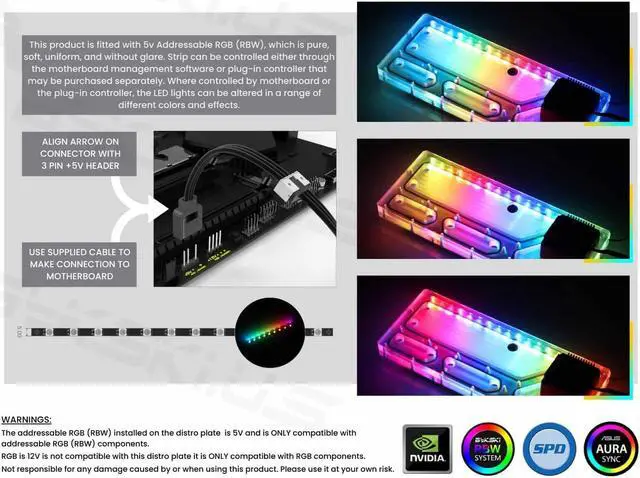

• A-RGB (RBW) LED Strip

Warnings
This block is designed specifically for this case. Depending on the motherboard, blocks, fittings used, and layout, the connecting tubing may not appear as pictured (perfectly horizontal). Not responsible for any hardware damage. Use at your own risk.
