Bykski GPU Water Block and Backplate For ASRock AMD Radeon RX 7900 XTX Taichi 24GB OC (A-AR7900XTX-X)
- FITS THE CARDS LISTED UNDER COMPATIBILITY: Machined only for the cards listed under Compatibility. Compare your bare board's power connectors, memory and mounting holes before ordering.
- COVERS THE CHIP, MEMORY AND POWER STAGES: One nickel-plated copper cold plate cools the GPU chip, memory and power stages through pads and paste, with 0.35 mm copper under the chip.

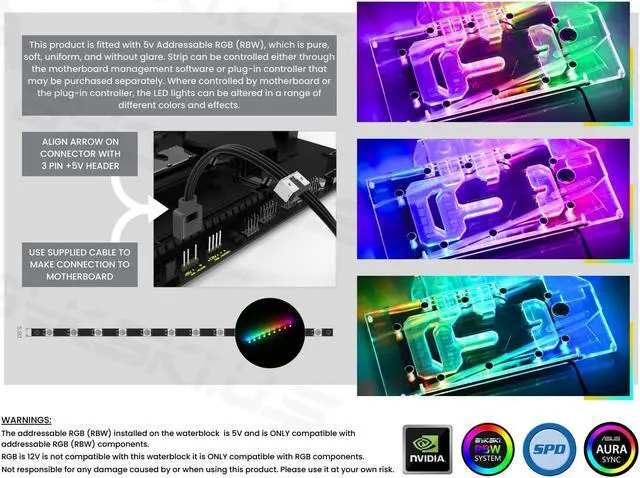

- 5V ARGB LIGHTING: The acrylic top shows a soft, even glow with no glare, controlled from your motherboard's lighting software. It plugs into a 3-pin 5V ARGB header with the supplied cable.
- VISIBLE LOOP, FEWER FANS: The clear acrylic top shows coolant moving through the block, and the card's stock fans drop out of the build. Fine 0.3 mm micro-channels carry heat to your radiator.
- USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Built for the ASROCK RADEON RX 7900 XTX TAICHI 24GB OC and the ASROCK RADEON RX 7900 XTX PHANTOM GAMING 24GB OC, this full-cover block is for custom loops. It covers the GPU chip, the memory and the power stages in one pass, so heat that would otherwise go through the card's fans goes into your coolant.

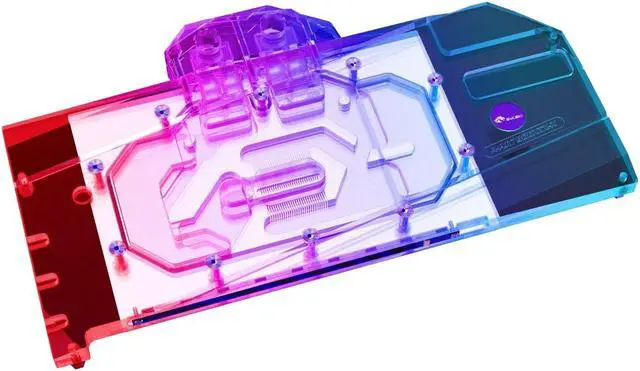

Nickel-plated copper under a clear acrylic top lets you watch the coolant move through the block. With the stock cooler's fans gone from the build, the loop does the cooling you would otherwise hear.
Specifications
- Block Material: Nickel-plated T2 copper, acrylic top

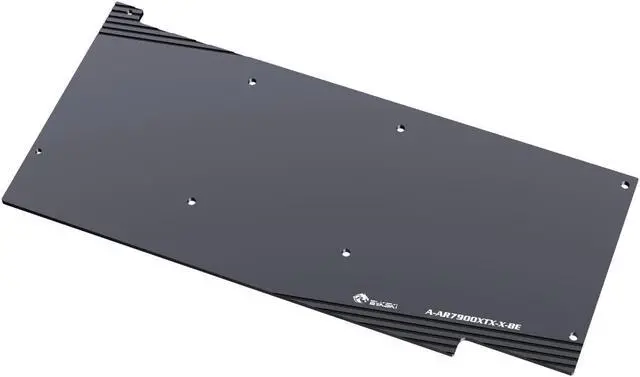

- Backplate Material: Black anodized aluminum (not in contact with coolant)

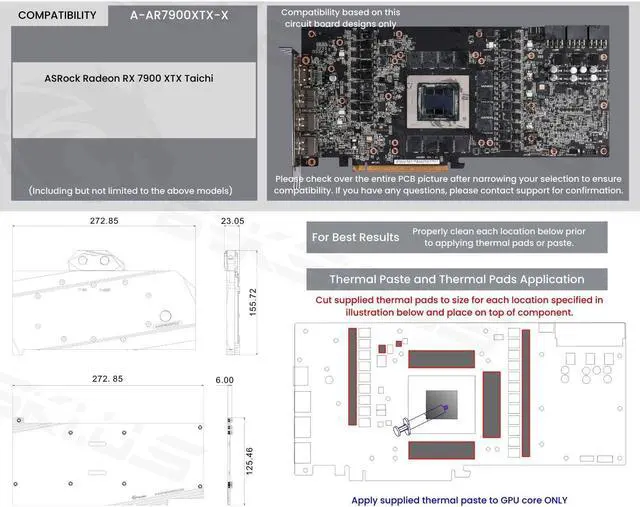

- Dimensions: 272.85 x 155.72 x 23.05 mm (width includes ports)
- Port Thread: G1/4
Compatibility
ONLY Compatible with:
- ASROCK AMD 7900 - RADEON RX 7900 XTX PHANTOM GAMING 24GB OC
- ASROCK AMD 7900 - RADEON RX 7900 XTX TAICHI 24GB OC
Parts Included
- GPU water block with backplate: 1
- Thermal pads: 1.5 mm, cut to size
- Thermal paste
- Set screws (M2 x 5 mm coil spring): 4
- Washers: 0.5 mm
- Backplate screws (M2 x 9.5 mm): 8
- 5V addressable RGB (ARGB) cable
- Small screwdriver: 1
Warnings
Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

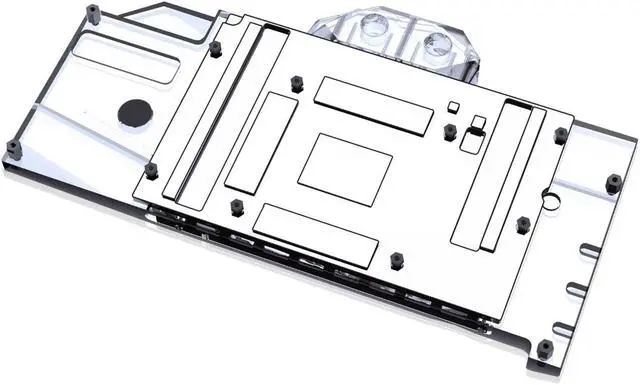

The top is acrylic. Tighten mounting screws evenly and finger tight - over-tightening cracks acrylic, and a cracked top is not covered. Installation removes the card's stock cooler, so never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the GPU chip uses thermal paste.
No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
