Bykski CPU-SR4189-X Full Metal CPU Water Cooling Block for Intel Xeon Scalable (LGA 4189)

The Bykski CPU-SR4189-X is a water cooling block for 3rd Gen Intel Xeon Scalable processors on socket LGA 4189. Server chips run at full load for hours, and a server heatsink only moves heat the chassis fans push through it. This block takes that heat off the IHS into your loop instead.

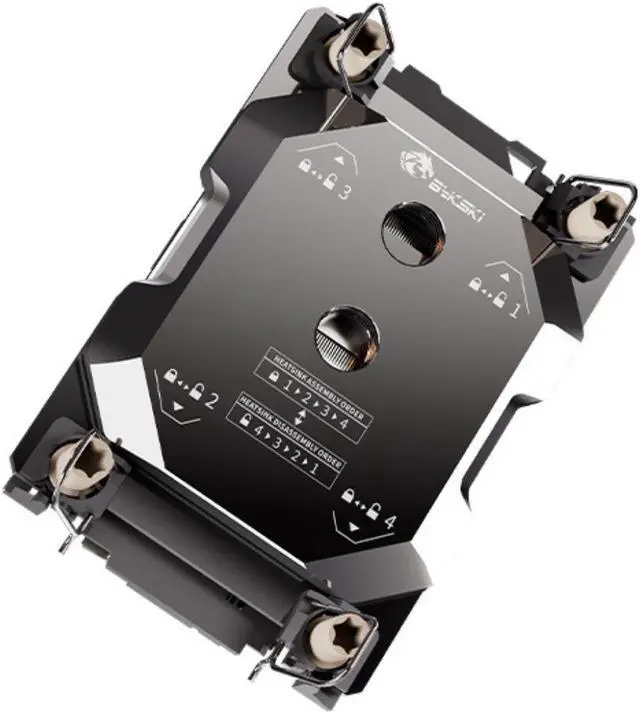

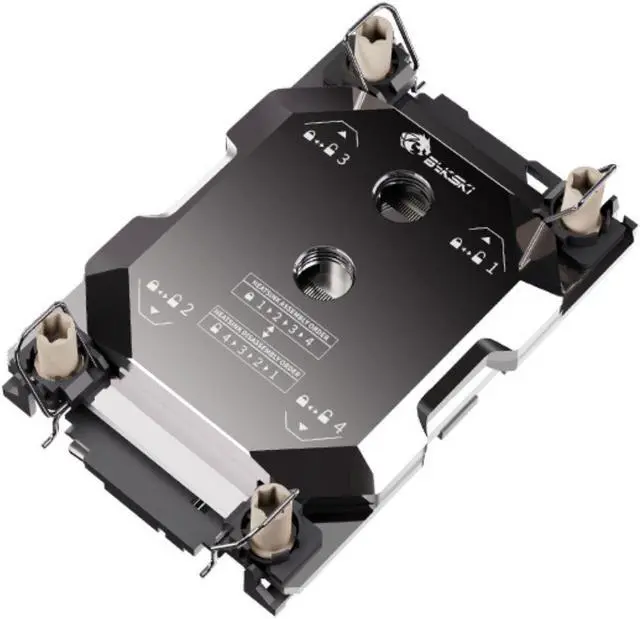

Beneath the all-metal housing sits a nickel-plated copper cold plate with 54 fine micro-channels, giving the coolant more copper to pull heat from. It is built for a machine that never powers down.

Specifications

• Block Material: Nickel-plated T2 copper, brass top

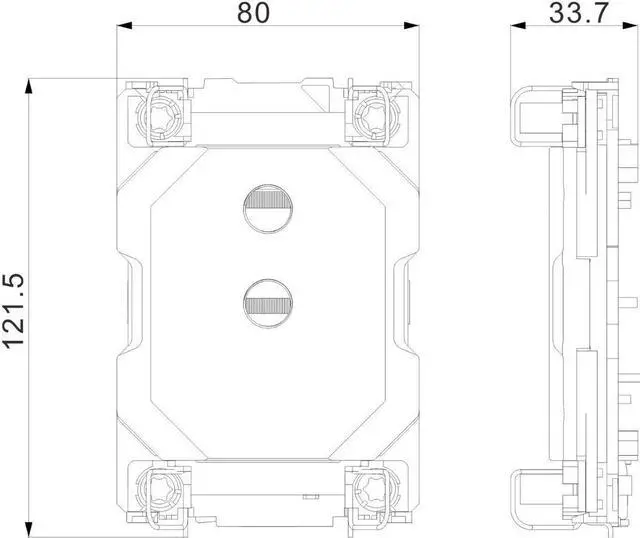

• Dimensions: 121.5 x 80 x 27 mm


• Port Thread: G1/4

Compatibility

ONLY Compatible with:

• INTEL XEON - SCALABLE 3RD GEN

Parts Included

• 1x CPU Water Cooling Block


• 1x Mounting Hardware


• Thermal paste

Warnings

Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.

Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

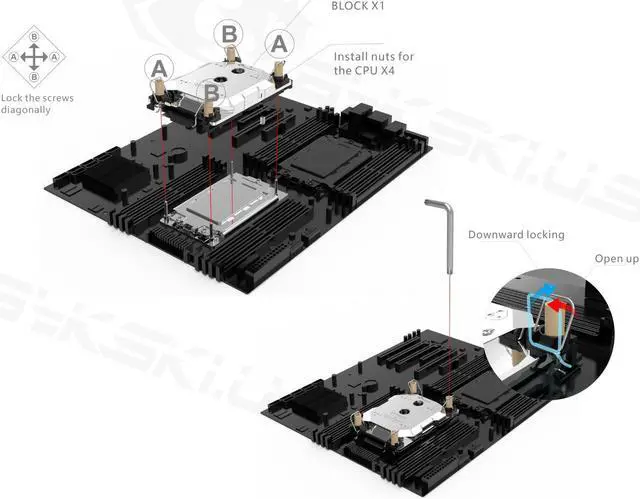

No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
