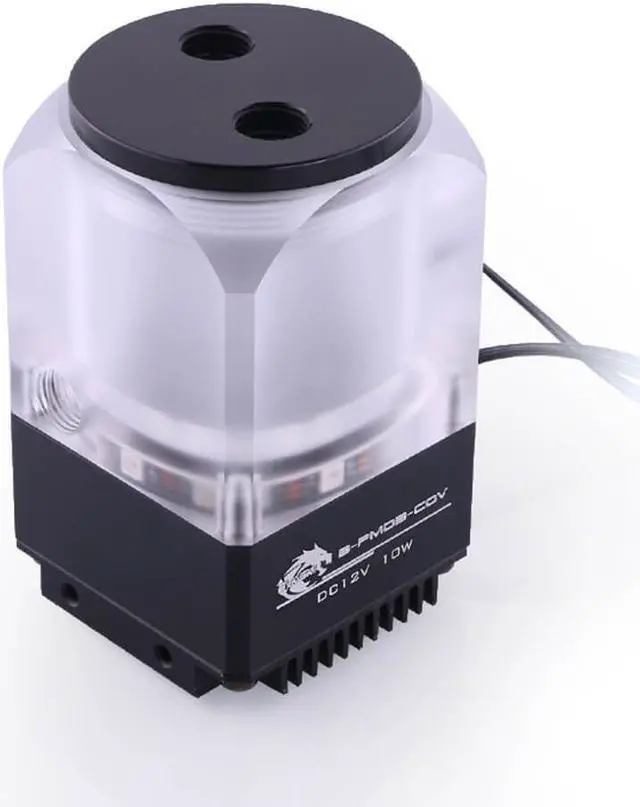

Bykski Mini DDC Pump Reservoir Combo w/ Armor (B-TANK-DDC-MI)

The Bykski Mini DDC Pump Reservoir Combo w/ Armor is a complete pump / reservoir kit. The extreme specifications of this DDC are unmatched and make for a very powerful and compact solution for your liquid cooling loop.KEY_TAB The clear PMMA top allows you to see fluid colors through it.KEY_TAB With industry standard G1/4 ports, this kit can accept most fittings. The pump is powered by a standard 4-pin power connector and monitor line.
Features

• All Black Cables


• PWM Enabled


• Superior 12 Volts DC convenience: plugs into the computer power supply

Specifications

• Top Color: Clear


• Top Material: Clear PMMA


• Heatsink Material: Aluminum


• Pump Model:B-PMD3-X



• Power: Standard 4 pin power connector and a PWM 4-Pin header


• Voltage Range: 10V - 15V DC


• MTBF (Mean Time Between Failure):50,000 hours equivalent to 5 years lifetime


• Maximum discharge:~ 132 GPH (600 LPH)


• Max RPM: 5000
• Temperature: 45°C @ 4000RPM

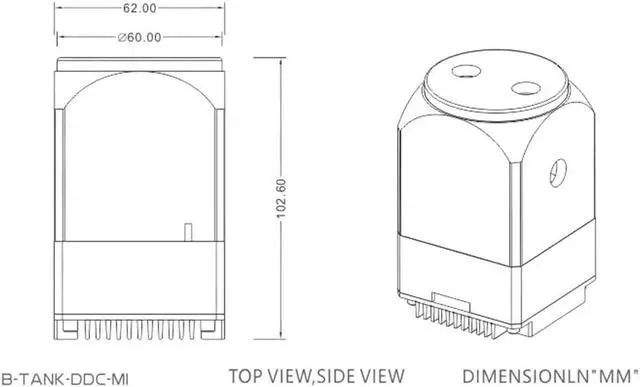

• Dimensions: 62 x 62 x 102.6mm


• Performance will vary based on cooling loop dynamic

Included Parts

• 1x Bykski Mini DDC Pump Reservoir Combo w/ Armor

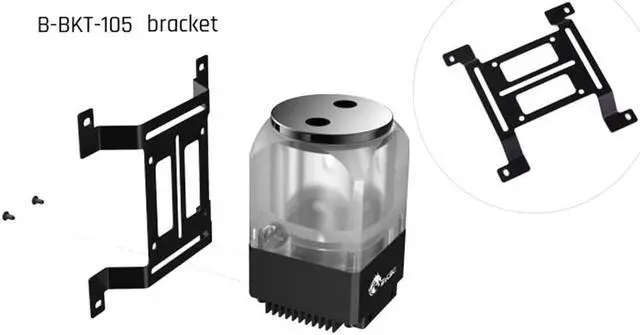

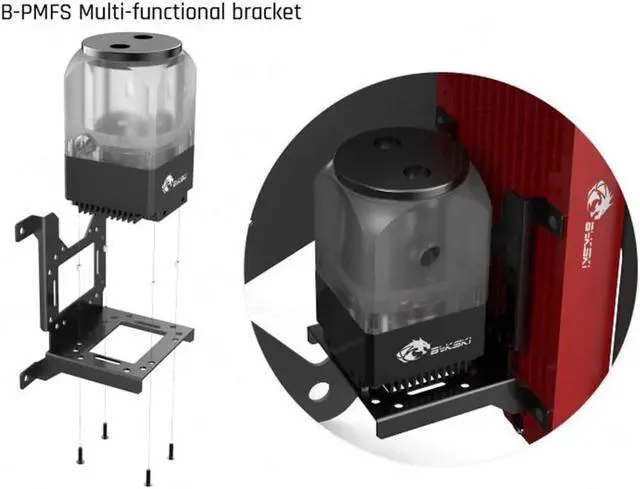

• Secondary Pics show Optional Mounting Solutions (NOT Included)

Warnings
Use of caustic and/or abrasive coolant will void your warranty and may cause your pump to fail.
Not responsible for any hardware damage. Use at your own risk.
