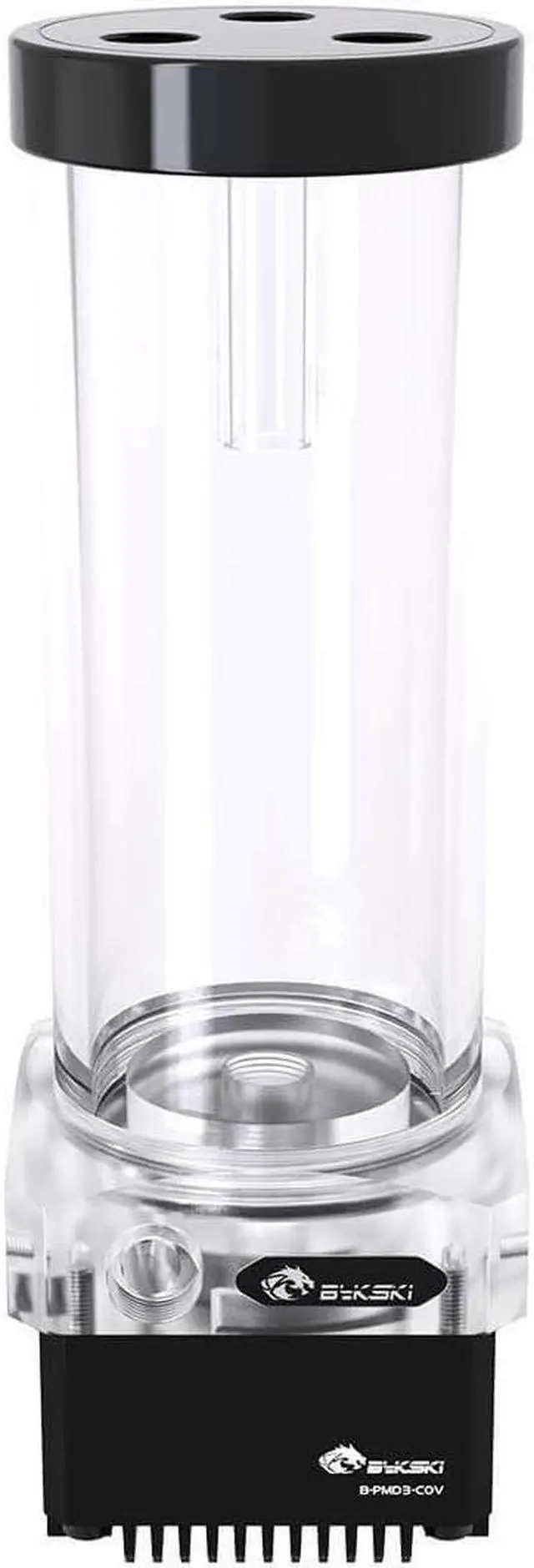

Bykski DDC CP-PMD3COV-X / 150mm PMMA Reservoir Combo - Black w/ 5v A-RGB LED

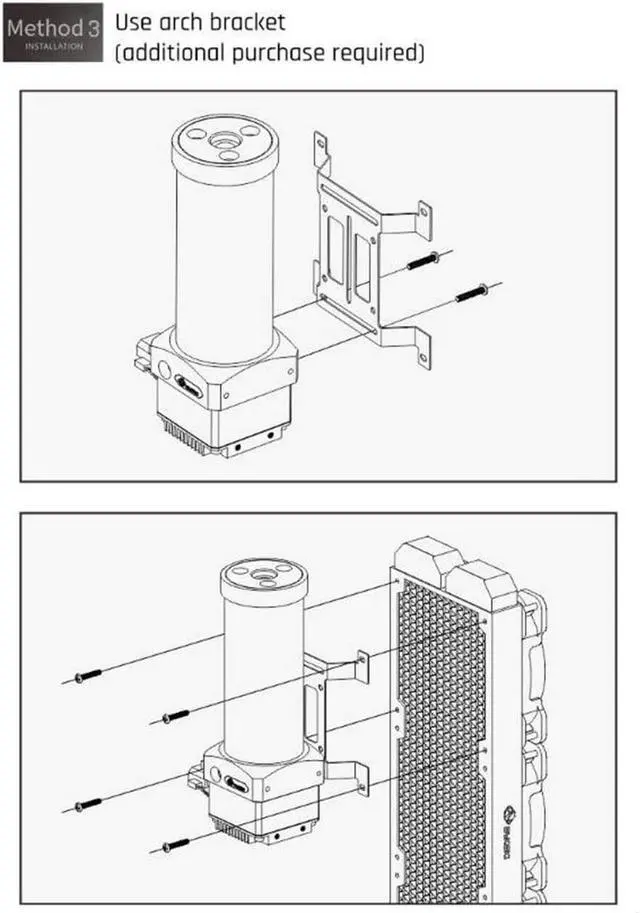

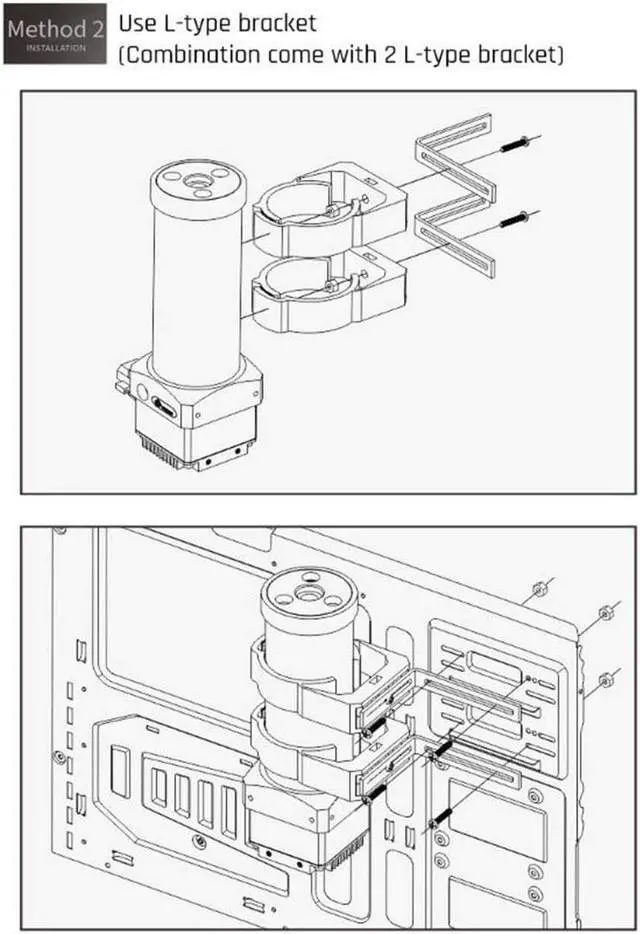

The Bykski DDC CP-PMD3COV-X / 150mm PMMA Reservoir Combo - Black w/ 5v A-RGB LED is a DDC pump with the Bykski Heatsink Armor preinstalled. The top mounted reservoir makes this combo a central unit able to power your entire loop. This latest revision has a redesigned cavity structure that maximizes flow rate and head. A strong DDC pump powers the unit that features 600 L/H and a 6 meter output head making this a great choice for any size loop. You can see from the secondary pictures the pump can be mounted in a variety of ways using included or optional Bykski brackets.

Features

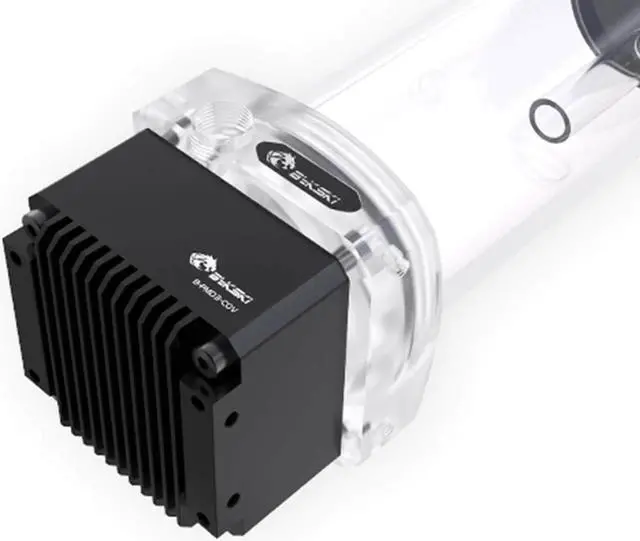

• Aluminum Armor Construction (Not in Contact with Coolant)


• Strong Pump Performance

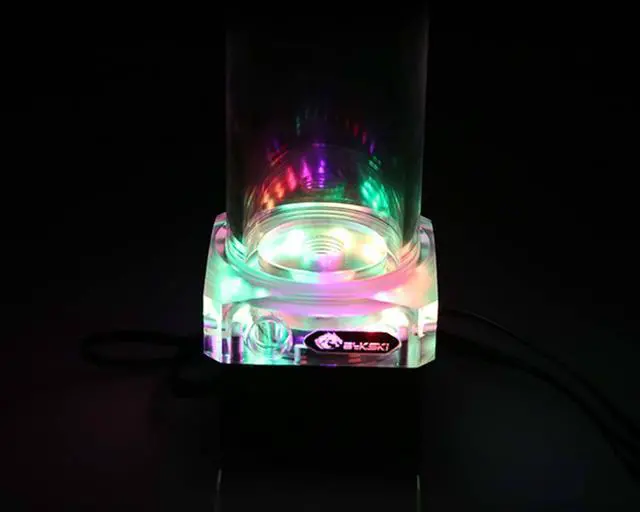

• Integrated 5v A-RGB (RBW) LEDs

Specifications

• Material: ABS Resin + Mitsubishi acrylic + Aluminum alloy (not in contact with coolant)


• RPM: 5000 max


• Power: DC12v, TDP15W


• Voltage Range: 10v-15v


• Flow Rate: 600L/h


• Temperature: 45°C @ 4000RPM


• Connector: 4-Pin Molex and 4-pin fan (Tach+PWM only)

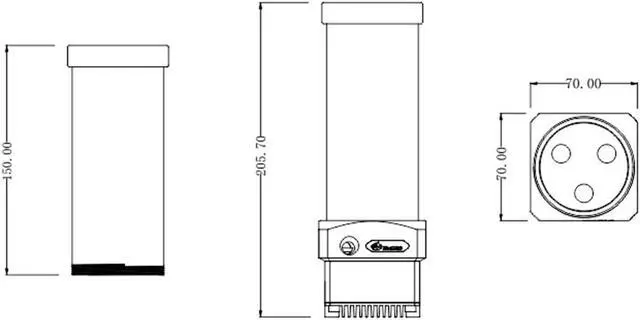

• Height: 202.7mm (total) | 150mm (reservoir only)


• Width: 70mm


• Thread: G 1/4in.

Compatibility

• Loop: Non-Aluminum


• Fitting: G 1/4in. Thread

Included Parts

• 1x Aluminum Pump Housing (installed)


• 1x Aluminum Base Plate(installed)


• 2x Mount Brackets + Screws


• 1x DDC Pump (installed)


• 1x Reservoir + Top

Warnings
Not responsible for any hardware damage. Use at your own risk.
