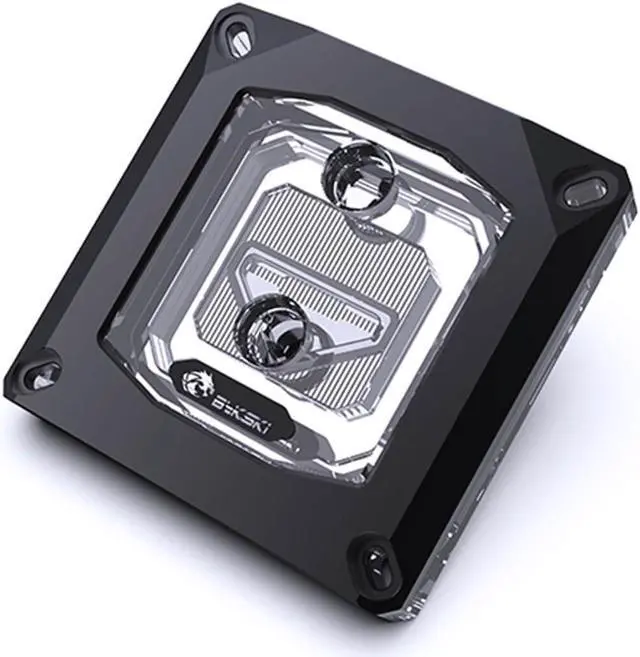

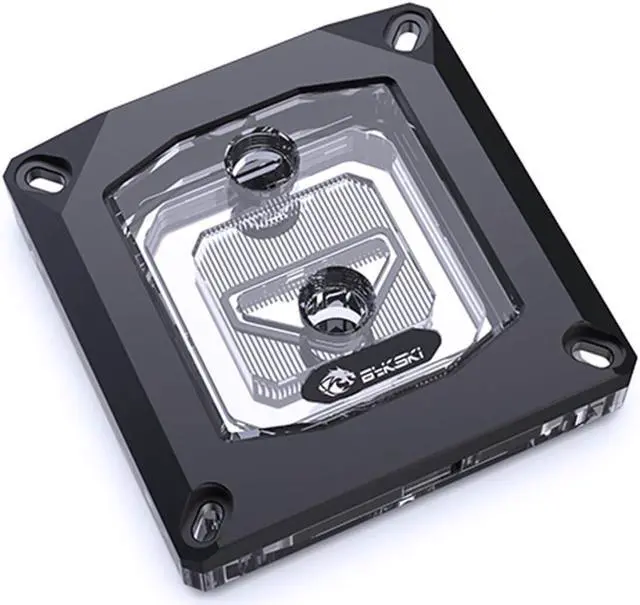

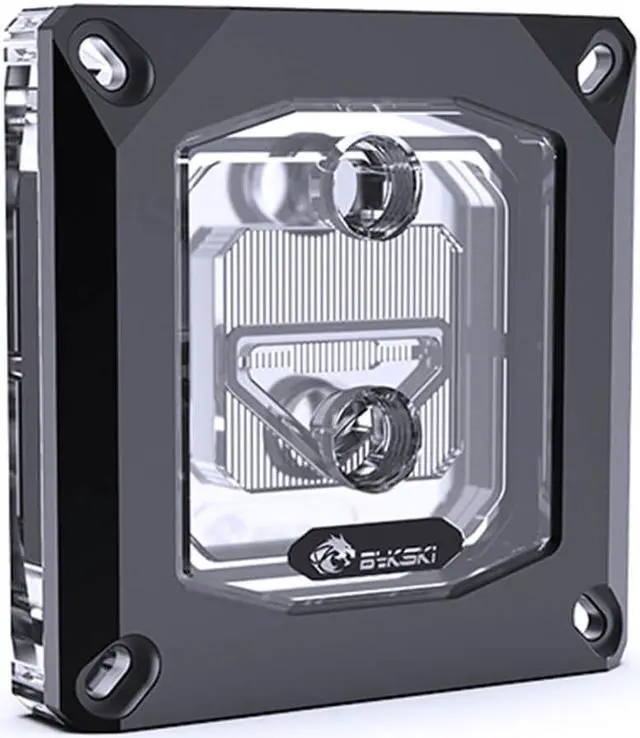

Bykski CPU-XPR-MK-I-V4 CPU Water Block for Intel LGA 1851/1700/1200/115x

The Bykski CPU-XPR-MK-I-V4 is a CPU water block for custom water-cooled Intel PCs. It fits Core Ultra 200S on LGA 1851, 12th, 13th and 14th Gen Intel Core and Core Series 1 on LGA 1700, and older Intel Core generations back to the 1st Gen, Core HEDT, and Xeon E-2400, W-1200 / W-1300 and Xeon 6 6300.

Why it works

• Nickel-plated T2 copper base with 77 micro-channels, each 0.2 mm wide.
• 0.35 mm copper base thickness over the micro-channels.

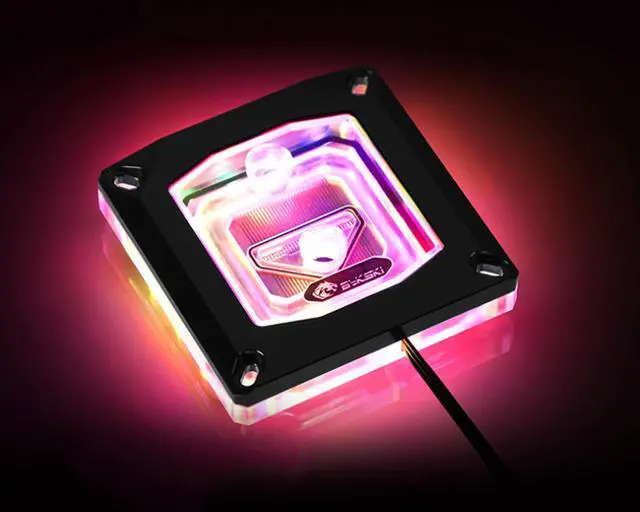

• Clear acrylic top, aluminum trim and 5V addressable RGB lighting.
• Standard G1/4 ports, 33.56 mm apart.
• Compact 92 x 92 x 23 mm block.

Compatibility

• INTEL CORE - 1ST GEN LGA 1156 (i7-870, i5-760)
• INTEL CORE - 1ST GEN LGA 1366 (i7-920, i7-950)
• INTEL CORE - 2ND GEN (i7-2600K, i5-2500K)
• INTEL CORE - 3RD GEN (i7-3770K, i5-3570K)
• INTEL CORE - 4TH GEN (i7-4790K, i5-4690K)
• INTEL CORE - 5TH GEN (i7-5775C, i5-5675C)
• INTEL CORE - 6TH GEN (i7-6700K, i5-6600K)
• INTEL CORE - 7TH GEN (i7-7700K, i5-7600K)
• INTEL CORE - 8TH GEN (i7-8700K, i5-8600K)
• INTEL CORE - 9TH GEN (i7-9700K, i9-9900K)
• INTEL CORE - 10TH GEN (i7-10700K, i9-10900K)
• INTEL CORE - 11TH GEN (i7-11700K, i9-11900K)
• INTEL CORE - 12TH GEN (i5-12600K, i7-12700K)
• INTEL CORE - 13TH GEN (i7-13700K, i9-13900K)
• INTEL CORE - 14TH GEN (i7-14700K, i9-14900K)
• INTEL CORE - SERIES 1 (Core 5 120, Core 5 120F)
• INTEL CORE HEDT - LGA 2011 (i7-3930K, i7-4960X)
• INTEL CORE HEDT - LGA 2011-3 (i7-5960X, i7-6950X)
• INTEL CORE HEDT - LGA 2066 (i7-7820X, i7-9800X)
• INTEL CORE ULTRA - 200S (Ultra 7 265K, Ultra 7 270K)
• INTEL XEON - E-2400 (E-2488, E-2478)
• INTEL XEON - W-1200 / W-1300 (W-1290, W-1390)
• INTEL XEON 6 - 6300 (Xeon 6 6369P)

Specifications

• Block Material: Nickel-plated T2 copper base, PMMA top, aluminum trim
• Dimensions: 92.00 x 92.00 x 23.00 mm
• Port Thread: G1/4
• Backplate Material: Metal (not in contact with coolant)

In the box

• 1x CPU Water Cooling Block
• 1x Mounting Hardware
• 1x 5v Addressable RGB (RBW) lighting
• Thermal paste

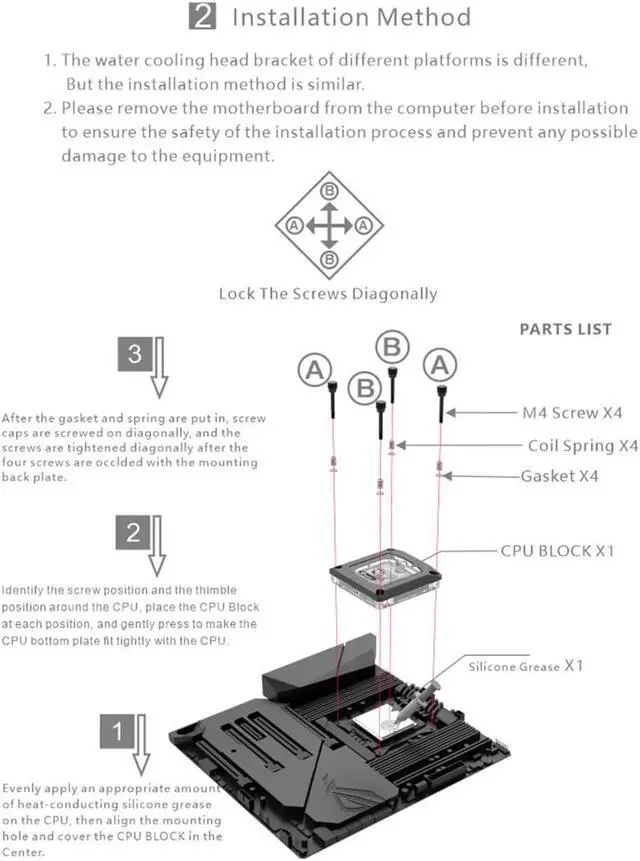

Installation

• Remove the existing CPU cooler and clean the top of the processor.
• Fit the mounting hardware and metal backplate for your socket.
• Apply the included thermal paste.
• Place the block on the CPU and secure it with the mounting screws.
• Connect your loop fittings to the two G1/4 ports.
• Connect the lighting cable.

Warnings

Thermal paste goes on the CPU's integrated heat spreader; never use thermal pads there.

Tighten the mounting screws in a cross pattern, finger tight. Over-tightening can crack the acrylic top or bend the socket retention frame.

The lighting plugs into a 5V 3-pin addressable (ARGB) header or an ARGB controller only. A 12V 4-pin RGB header will damage it.

No printed instructions are included; the installation illustration is in the product images.

Self-installation by users experienced with PC water cooling. The manufacturer may update the design, so the product you receive may differ slightly from the images. The manufacturer is not liable for damage caused by misuse, improper installation, operation outside the stated specifications, or incompatible hardware or fluids. Installing and using this product means you accept these risks.
