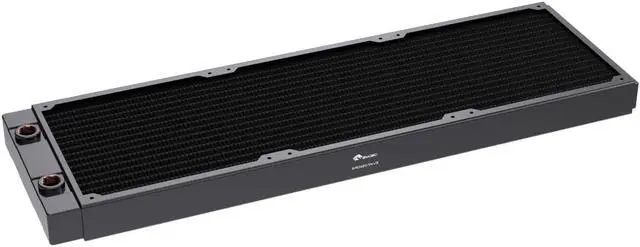

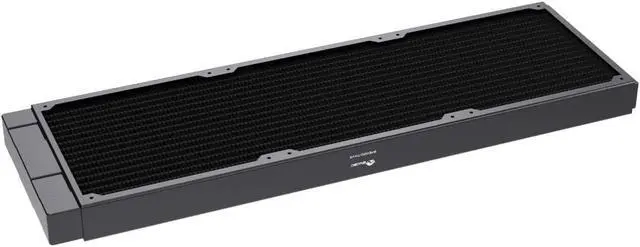

Bykski 420mm x 30mm RC Series Radiator, 140mm x 3, Triple Fan (CR-RD420RC-TN-V3)

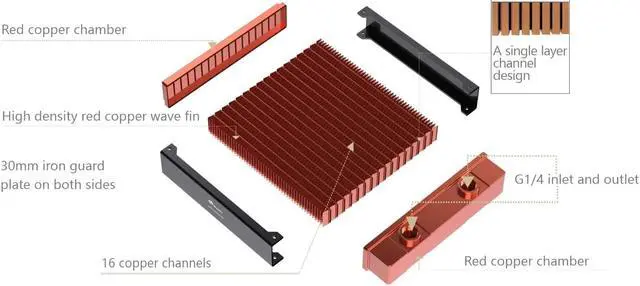

Bykski CR-RDRC-TN-V3 series radiator is designed as a single row of copper channels. The thickness of the radiator is 30mm which allows this radiator to be mounted in smaller profile locations. The water channels and wave fins are made of red copper with a thermal conductivity of up to 401 w/(M.K.). There are 16 water channels aligned in a single row.

Features

• 16 Channel Design
• Industry Standard G1/4 Thread
• High-Quality Copper Design

Specifications

• Material: Red Copper / Iron side plates (not in contact with coolant)
• Dimensions: 140mm x 449mm x 30mm
• Ports: 2
• Port Thread: G 1/4
• Mount Thread: M3
• Channels: 16
• Pressure: 1.5bar
• Weight: 1.1555 Kg
• Fin Density: 16FPI

Compatibility

• Fan: 140mm

Included Parts

• 1x Radiator
• 8x M3 x 30mm Mounting Hardware
• 8x M3 x 6mm Mounting Hardware

Warnings

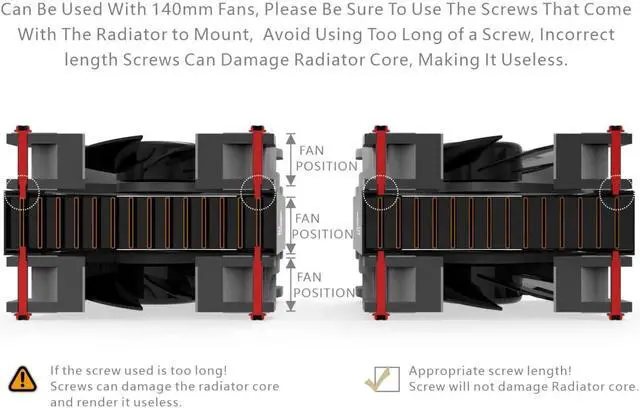

The radiator is formed by a high-temperature integrated soldering process. Due to this, there will be a slight color change in the copper, this is a result of the process, not rust. Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding the warranty. Radiator comes with M3X30mm screws suitable for fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, sold separately). Not responsible for any hardware damage. Use at your own risk.
