Bykski Durable All Metal GPU Water Block and Backplate For GIGABYTE GeForce RTX 4090 WindForce V2 24G (N-GV4090WF-X-V2) - Continuous Usage
- FITS GIGABYTE RTX 4090: Built specifically for GIGABYTE RTX 4090 WindForce V2 24G and TURBO 24G cards. Precision CNC machining matches these exact PCB layouts.
- PRECISION COPPER BASE: The 0.35 mm base plate features 0.001 to 0.002 mm electroless nickel plating. It covers the GPU chip, memory, and power stages in a single pass.
- SERIES-CAPABLE FLOW: Parallel side ports allow multiple water blocks to run in series. The 18.6 mm block thickness maintains clearance for adjacent hardware.
- CONTINUOUS-DUTY BUILD: Crack-resistant POM and T2 copper construction withstand continuous 24/7 operation. The included aluminum backplate reinforces the card against PCB flex.
- USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

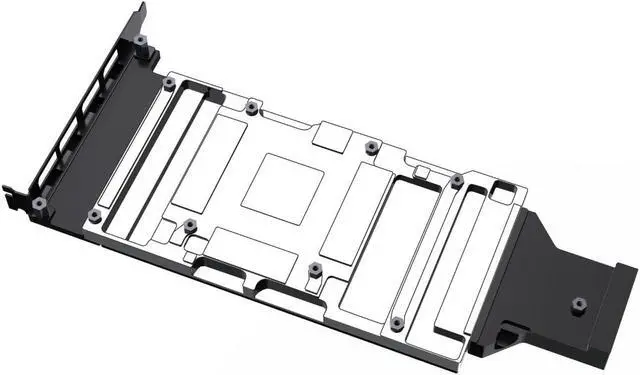

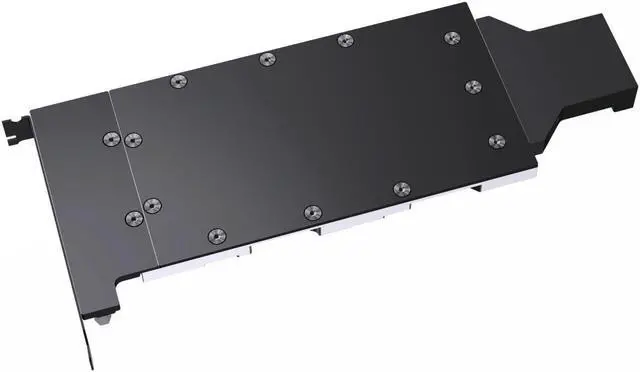

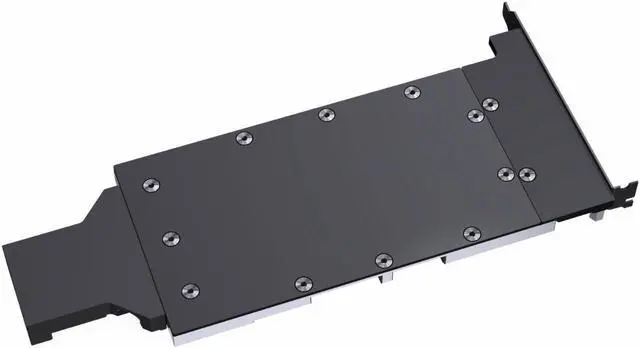

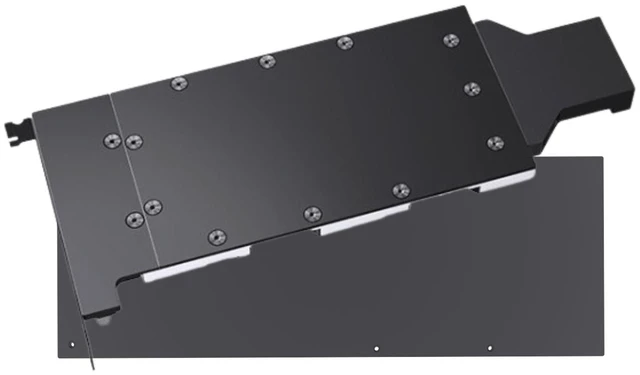

The Bykski N-GV4090WF-X-V2 is a full-coverage GPU water block with backplate for GIGABYTE GeForce RTX 4090 WindForce V2 24G and TURBO 24G graphics cards. It cools the GPU chip, memory, and power stages in one pass, routing heat directly into the liquid loop.

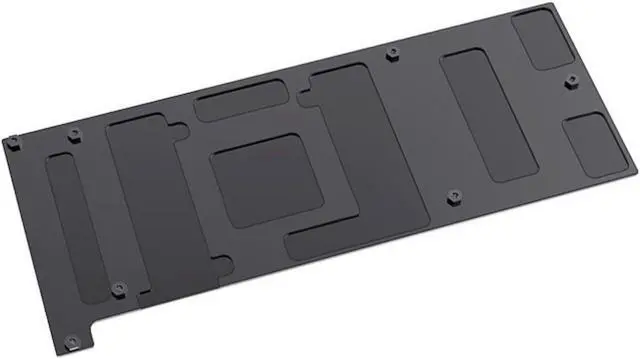

Built for continuous duty, the block features a T2 copper cold plate with a 0.35 mm base thickness and 0.001-0.002 mm electroless nickel plating. The POM terminal provides parallel side ports, while the aluminum backplate braces the circuit board.
Specifications
- Block Material: Nickel-plated T2 copper, POM top
- Backplate Material: Anodized aluminum (not in contact with coolant)

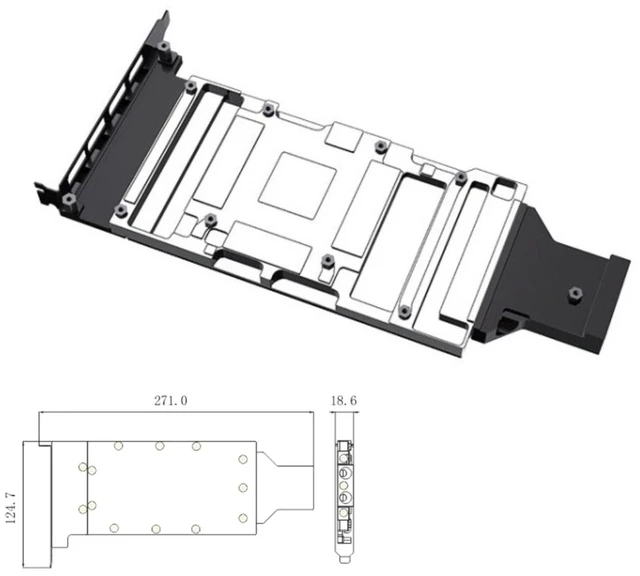

- Dimensions: 271.0 x 124.7 x 18.6 mm
- Port Thread: G1/4

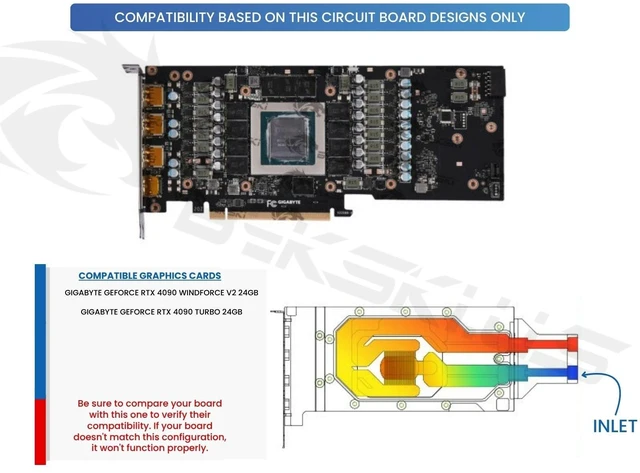

Compatibility
ONLY Compatible with:
- GIGABYTE NVIDIA 4090 - GEFORCE RTX 4090 WINDFORCE V2 24GB
- GIGABYTE NVIDIA 4090 - GEFORCE RTX 4090 TURBO 24GB
Parts Included
- GPU water block with backplate: 1 pc
- Aluminum Backplate: 1 pc
- 1.5mm Thermal Pad: 5 pcs
- 0.5mm Washers: 4 pcs
- M2 x 5mm Coil Spring Screws: 4 pcs
- M2 x 9.5mm Backplate Screws: 7 pcs
- Thermal paste: 1 pc
Warnings
Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

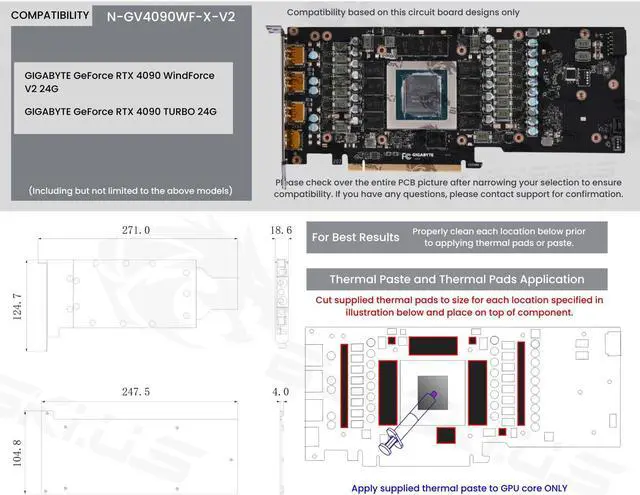

Installation removes the card's stock heatsink, after which it can no longer be cooled by chassis air. Never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the die itself uses thermal paste.

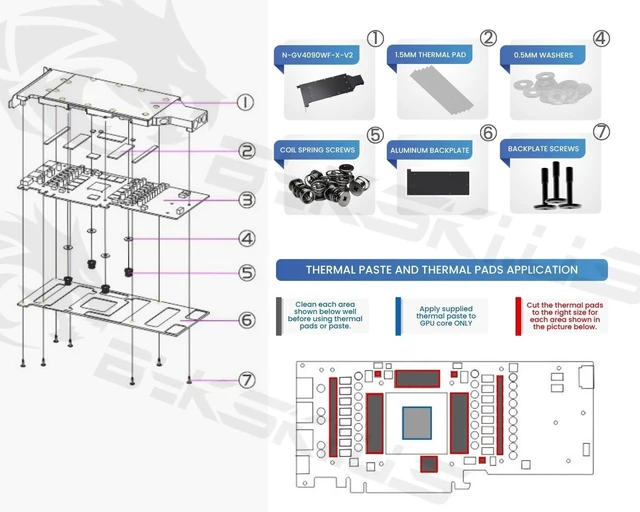

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
