Bykski CPU-XPR-I-V3 CPU Water Block for Intel LGA 1851/1700/1200/115x/1366

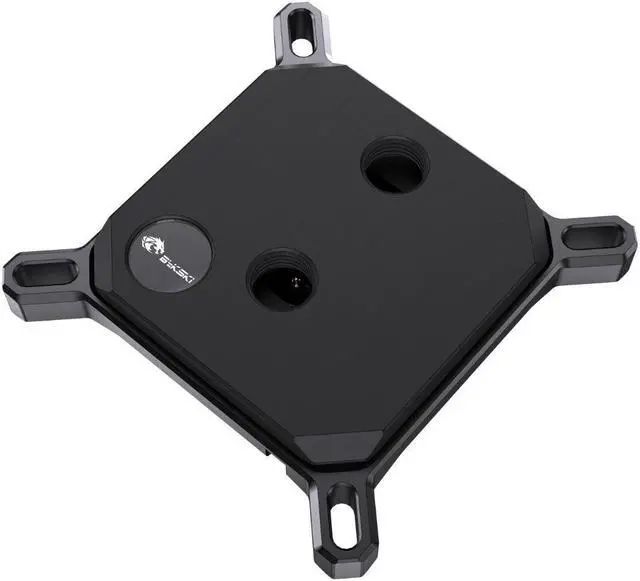

The Bykski CPU-XPR-I-V3 is a CPU water block for custom loop builders cooling an Intel processor. It fits Core Ultra 200S on LGA 1851 and 12th, 13th and 14th Gen Intel Core on LGA 1700, and older Intel Core, Core HEDT and Xeon families. Choose the Black version with an acrylic top and 5V addressable RGB lighting, the Silver version with a metal top, or the Black (POM) version with a POM top.

Why it works

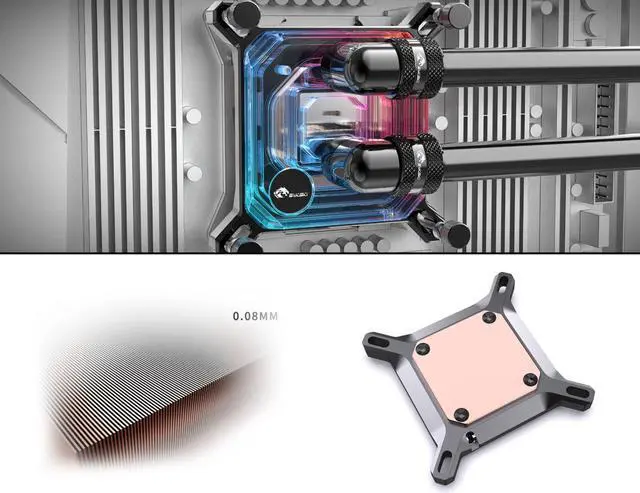

• Nickel-plated T2 copper cold plate with 163 micro-channels, each 0.08 mm wide
• Large channel surface right above the CPU moves heat into your loop quickly
• Mounts on many Intel sockets, so it can move from one build to the next
• Standard G1/4 ports, 33.56 mm apart

Compatibility

• INTEL CORE - 1ST GEN LGA 1156 (i7-870, i5-760)
• INTEL CORE - 1ST GEN LGA 1366 (i7-920, i7-950)
• INTEL CORE - 2ND GEN (i7-2600K, i5-2500K)
• INTEL CORE - 3RD GEN (i7-3770K, i5-3570K)
• INTEL CORE - 4TH GEN (i7-4790K, i5-4690K)
• INTEL CORE - 5TH GEN (i7-5775C, i5-5675C)
• INTEL CORE - 6TH GEN (i7-6700K, i5-6600K)
• INTEL CORE - 7TH GEN (i7-7700K, i5-7600K)
• INTEL CORE - 8TH GEN (i7-8700K, i5-8600K)
• INTEL CORE - 9TH GEN (i7-9700K, i9-9900K)
• INTEL CORE - 10TH GEN (i7-10700K, i9-10900K)
• INTEL CORE - 11TH GEN (i7-11700K, i9-11900K)
• INTEL CORE - 12TH GEN (i5-12600K, i7-12700K)
• INTEL CORE - 13TH GEN (i7-13700K, i9-13900K)
• INTEL CORE - 14TH GEN (i7-14700K, i9-14900K)
• INTEL CORE - SERIES 1 (Core 5 120, Core 5 120F)
• INTEL CORE HEDT - LGA 2011 (i7-3930K, i7-4960X)
• INTEL CORE HEDT - LGA 2011-3 (i7-5960X, i7-6950X)
• INTEL CORE HEDT - LGA 2066 (i7-7820X, i7-9800X)
• INTEL CORE ULTRA - 200S (Ultra 7 265K, Ultra 7 270K)
• INTEL XEON - E-2400 (E-2488, E-2478)
• INTEL XEON - W-1200 / W-1300 (W-1290, W-1390)
• INTEL XEON 6 - 6300 (Xeon 6 6369P)

Specifications

• Block Material: Nickel-plated T2 copper, acrylic top, metal, or POM (based on model)
• Dimensions: 91.35 x 91.35 x 18.55 mm
• Port Thread: G1/4

In the box

• CPU Water Cooling Block
• Installation Hardware, including thermal paste
• 5V Addressable RGB (acrylic version only)

Installation

• Remove the existing cooler and clean the CPU surface.
• Fit the mounting hardware for your socket.
• Place the block on the CPU and secure it with the supplied hardware.
• Connect your loop tubing to the G1/4 ports with G1/4 fittings.
• Fill the loop and check every connection for leaks before powering the PC.

Warnings

Thermal paste goes on the CPU's integrated heat spreader; never use thermal pads there.

Tighten the mounting screws in a cross pattern, finger tight. Over-tightening can crack the acrylic top or bend the socket retention frame.

The lighting plugs into a 5V 3-pin addressable (ARGB) header or an ARGB controller only. A 12V 4-pin RGB header will damage it.

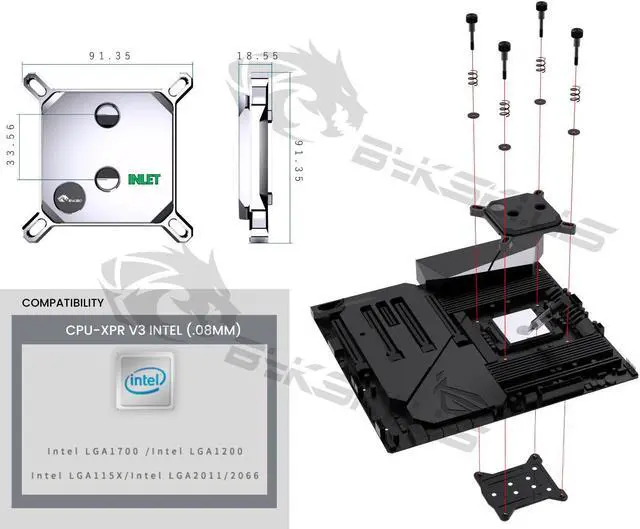

No printed instructions are included; the installation illustration is in the product images.

Self-installation by users experienced with PC water cooling. The manufacturer may update the design, so the product you receive may differ slightly from the images. The manufacturer is not liable for damage caused by misuse, improper installation, operation outside the stated specifications, or incompatible hardware or fluids. Installing and using this product means you accept these risks.
