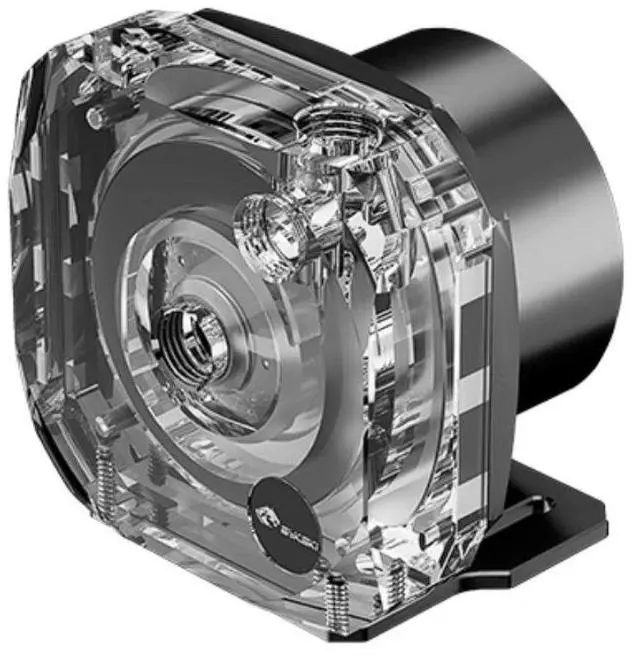

Bykski PMS6 Armored Liquid Cooling 12V Pump - PWM Enabled - PMMA w/ 5v RBW Leds (B-PMS6-NX-X)
- 12V DC/ADVANCED PWM SPEED CONTROL: Connect to your motherboard via the 4-pin PWM connector to adjust pump speed, optimize performance, and reduce noiselike a CPU fan. Powered by a standard 4-pin Molex connector for easy installation and compatibility with most PCs power supplies.
- HIGH PRESSURE, HIGH FLOW DESIGN: Engineered to deliver impressive pressure and a maximum discharge rate of 720 L/H, this pump is ideal for custom or high-flow liquid cooling loops demanding consistent coolant circulation.
- AUTO SHUTDOWN SAFETY FEATURE: Integrates seamlessly with BIOS RPM feedback, allowing for automatic system shutdown if irregular pump speeds are detectedprotecting your valuable hardware.
- COMPACT FOOTPRINT: With dimensions of just 80mm x 83.5mm x 67.90mm, it fits seamlessly into tight spaces while still offering industrial-grade performance for demanding cooling needs.
- USA SUPPORT FRIENDLY AND EXPERIENCED: Tyler Direct provides friendly and knowledgeable customer support in the USA, assi
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Bykski PMS6 Liquid Cooling 12V Pump Motor is a high reliability, high pressure industrial pump, featuring PWM speed control. Like most other PMS6 pumps this reliability is afforded by the same unique design as the original pump, which contains only one moving part: the magnetically driven spherical impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

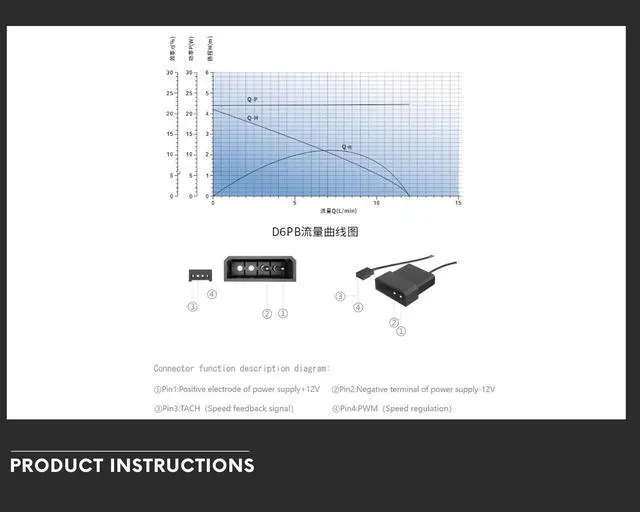

The pumps data and speed control is done using the PWM 4-pin connector. By connecting this the pump speed can be controlled via the computers similar to a CPU fan speed. This also allows the safety feature of auto shut down based on RPM feedback if available in your BIOS.

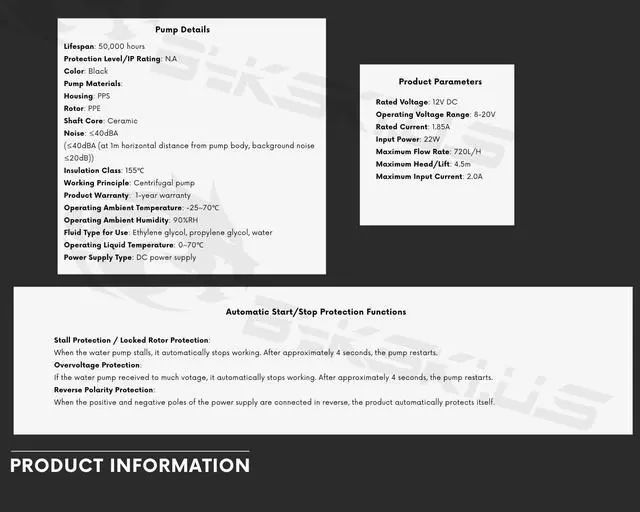

- Superior 12 Volts DC convenience: plugs into the computer power supply
- The high pressure capability of the PMS6 is particularly well adapted to high-flow systems
- Input Power: 22W
- Voltage:8-20V DC
- Power Connector: 4-Pin Molex
- Speed Control/Data: 4-Pin PWM
- Maximum head: 4.5m
- Maximum discharge: 720 L/H
- Top Material: PMMA
- Thread: G1/4
- Dimensions: 80mm x 83.5mm x 67.90mm
- 1x Bykski PMS6 Armored Liquid Cooling 12V Pump - PWM Enabled - PMMA w/ 5v RBW Leds
- 1x Top and Mounting System
Do not run the pump dry. It is designed as self lubricating which means the fluid that the pump is designed to push/create flow is also used to lubricate the internal pump parts and you shouldn't run the pump without fluid for any reason. Running dry creates internal friction between the ceramic bearing and bearing housing and that heat can crack or melt the bearing housing very quickly. Running pumps dry (without fluid) immediately voids the warranty and replacements/refunds will not be issued. Not responsible for any hardware damage. Use at your own risk.
