Bykski CP-D5PB-V2 Pump / 180mm PMMA Reservoir Combo - Black (CT-D5-180-X-V2)

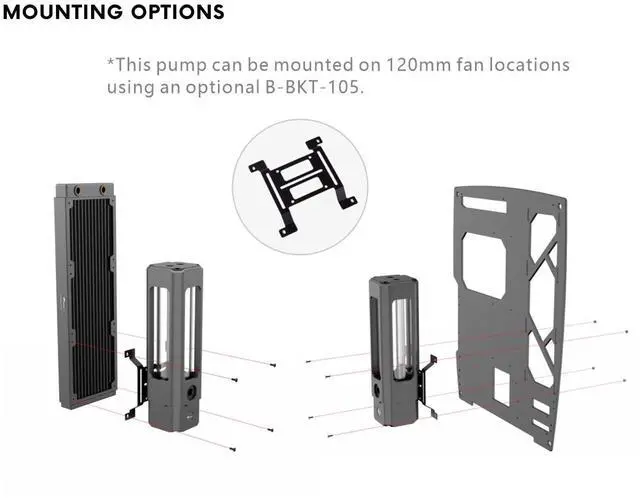

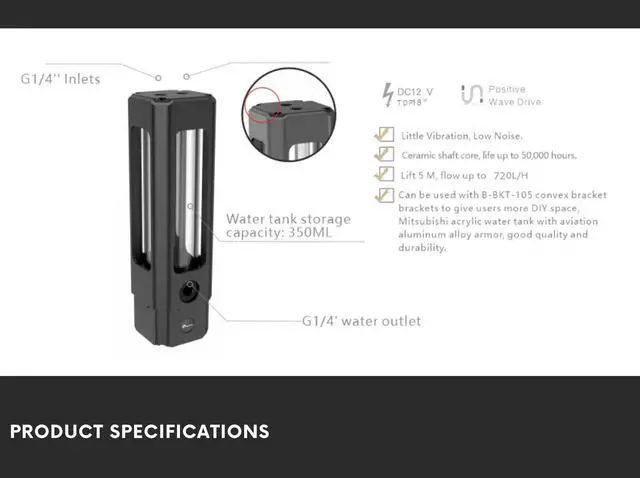

The CT-D5-180-X-V2 is a pump reservoir combo designed for use in liquid cooling loops. The square armor design gives a distinctive look compared to most pump reservoir combos. The unit features a capacity of 350 milliliters and two intake portsone port for the loop return, one for fillingalong with a single port for outputting coolant. It is mountable on any 120mm fan location using an optional bracket (B-BKT-105).

Features

• Aluminum Armor Construction (Not in Contact with Coolant)


• Strong Pump Performance

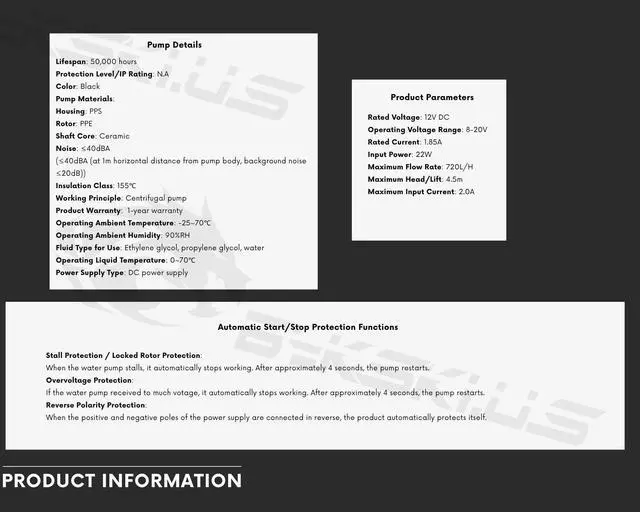

Specifications

• Power Input: DC12v, 1.8A, Range 8-20V, RPM 4400


• Flow Rate: 720L/h


• Lift: 4.5m

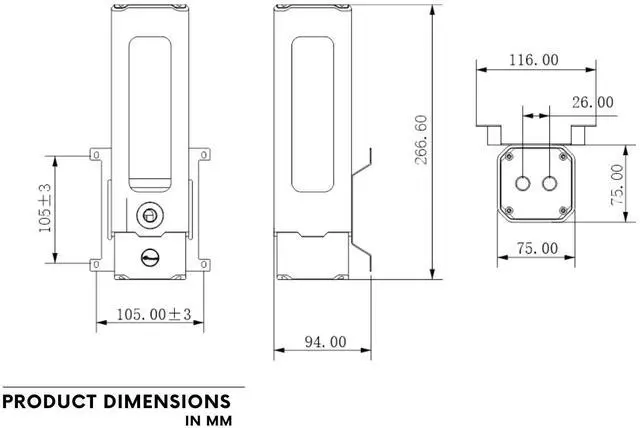

• Height: 266mm (total)


• Width: 75mm


• Thread: G 1/4in.


• Tank Capacity: 350mL

Compatibility

• Loop: Non-Aluminum


• Fitting: G1/4in. Thread

Included Parts

• 1x Aluminum Pump Housing (installed)


• 1x CP-D5PB-V2 Pump (installed)


• 1x Reservoir + Top (installed)

Pump Specific Warnings:

Use of caustic and/or abrasive coolant will void your warranty (see warranty section) and may cause your pump to fail. This pump comes stock without any housing, allowing you to integrate any of your favorite pump tops and accessories. Consequently, the pump cannot be used as a standalone unit. Do not run the pump dry.

The D5 and DDC range of pumps are designed to be self-lubricating, meaning the fluid that the pump is designed to move is also used to lubricate its internal parts. Therefore, you should not run the pumps without fluid for any reason. Running these pumps dry creates internal friction between the ceramic bearing and bearing housing, and that heat can quickly crack or melt the bearing housing.

Running D5 pumps dry (without fluid) immediately voids the warranty. Replacements will not be provided under these conditions.

It is easy for us to determine if your pump has been "run dry" or without fluid:

1. Visual scratches along the inside of the housing. These are created when the bearing housing melts and the impeller spins off-center.
2. The bearing housing has stress cracks or is melted, resulting from heat created when the pump is run dry.
3. The impeller sits too low in the housing, usually indicating that the ceramic bearing is falling through the normal housing location.

Warning:This product is designed for self-installation. The manufacturer is not liable for any damages resulting from misuse, including, but not limited to, improper installation or the use of incompatible hardware or fluids. By using this product, you accept all related risks.
