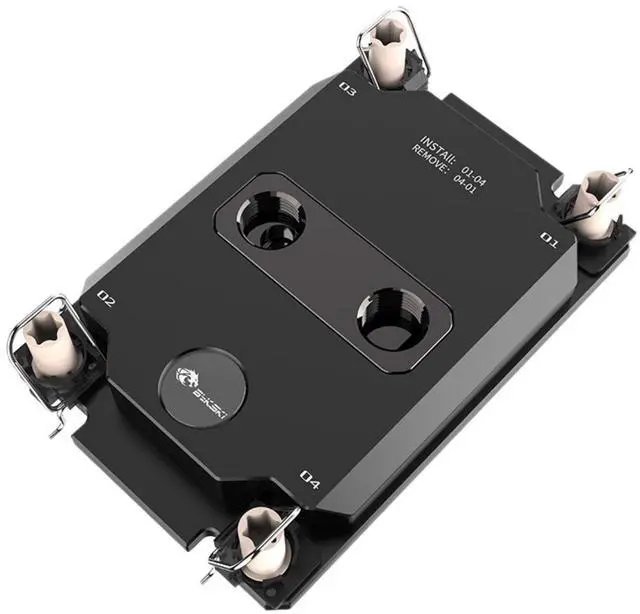

Bykski CPU-4189-SR Durable Metal CPU Water Cooling Block for Intel Xeon (LGA 4189)
- FITS 3RD GEN INTEL XEON SCALABLE (LGA 4189): Fits the 3rd Gen Intel Xeon Scalable processors listed under Compatibility. Check that your socket reads LGA 4189 before you order.
- NICKEL-PLATED COPPER COLD PLATE: Heat passes from the IHS into the coolant through a nickel-plated T2 copper base. That base is 0.35 mm thick, thin enough to keep the path short.
- LGA 4189 MOUNT, HARDWARE IN THE BOX: Installation hardware for the LGA 4189 mount ships with the block, and thermal paste for the IHS is included.

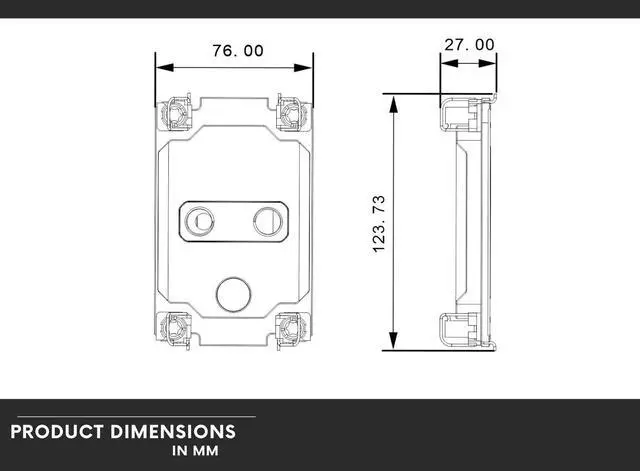

- CHECK THE MOUNT AND CLEARANCE: At 123.73 x 76.00 x 27.00 mm, the block needs room on the LGA 4189 mount, so check the space around the socket before you install.
- USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The Bykski CPU-4189-SR is built for 3rd Gen Intel Xeon Scalable processors on LGA 4189. These chips run heavy jobs for hours, and a server heatsink only moves heat the chassis fans push through it. This block takes that heat off the IHS and into your loop.
The nickel-plated T2 copper cold plate sits on the IHS, with a 0.35 mm base that keeps the path short. Sixty 0.3 mm micro-channels give the coolant plenty of metal to pull heat from. The brass and aluminum top is rated to 6.0 bar.
Specifications
- Block Material: Nickel-plated T2 copper, brass and aluminum top
- Dimensions: 123.73 x 76.00 x 27.00 mm
- Port Thread: G1/4
Compatibility
ONLY Compatible with:
- INTEL XEON - SCALABLE 3RD GEN
Parts Included
- CPU Water Cooling Block
- Installation Hardware, including thermal paste
Warnings
Warranty is repair or replacement. Returns are accepted within 30 days, no questions asked. A restocking fee applies to every return, with a higher fee for items that have been installed or used.
Thermal paste goes on the CPU's integrated heat spreader - do not apply thermal pads to the IHS. Over-tightening the mounting screws can crack an acrylic top or bow the socket retention frame; tighten in a cross pattern, finger tight.

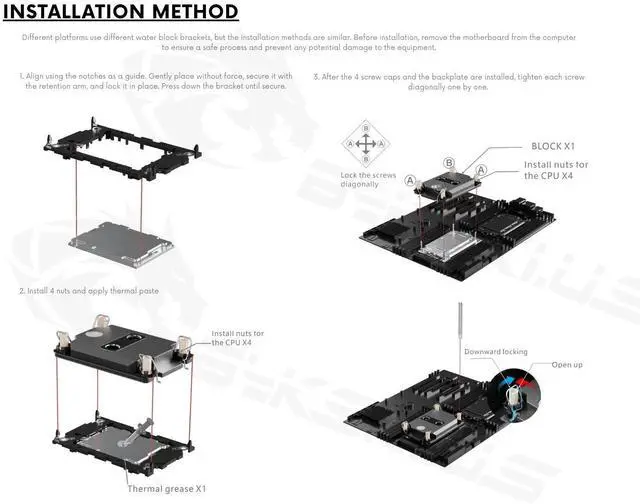

No printed instructions are included; the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
