    Bykski CPU-4677-SR CPU Water Block for Intel LGA 4677/4710

    • FITS INTEL XEON: Fits Intel Xeon Scalable 4th and 5th Gen and Intel Xeon 6 6500 and 6700 processors. Made for these sockets (LGA 4677, LGA 4710).
    • FINE-CUT COLD PLATE: Nickel-plated T2 copper is cut with 60 micro-channels, each 0.3 mm wide. More copper surface lets the coolant pull heat away from the CPU faster.
    • COMPLETE MOUNTING KIT: Mounts with four CPU mounting nuts and four retention clips. The box includes the block, installation hardware with thermal paste, and a backplate.
    • WHAT HAS TO FIT: The block measures 123.73 x 76.00 x 27.00 mm and uses G1/4 ports, so check the room around the socket and memory. A backplate ships with it.
    • USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

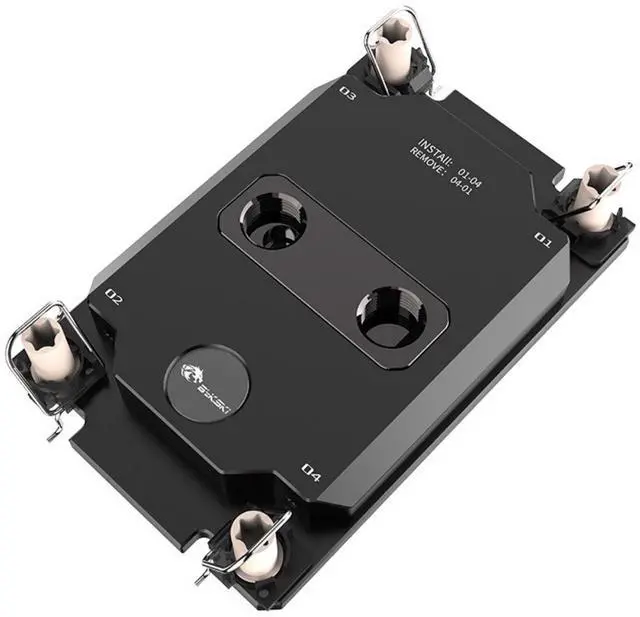

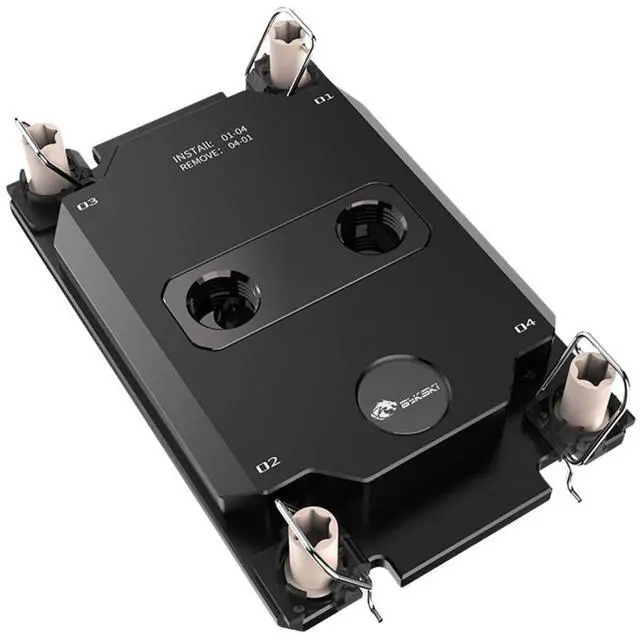

    The Bykski CPU-4677-SR is a metal CPU water block for custom water-cooled Intel Xeon workstations and servers. It fits Intel Xeon Scalable 4th and 5th Gen processors on LGA 4677 and Intel Xeon 6 6500 and 6700 processors on LGA 4710, carrying the heat of a high core-count chip straight into your loop.

    Why it works

    • Nickel-plated T2 copper cold plate with 60 micro-channels, each 0.3 mm wide
    • Heat dissipation area of 23,662.47 mm2 over a 0.35 mm copper base
    • Brass and aluminum top for an all-metal build, rated for 6.0 bar working pressure
    • Standard G1/4 ports, with backplate, mounting hardware and thermal paste in the box

    Compatibility

    • INTEL XEON - SCALABLE 4TH / 5TH GEN (Gold 6448Y, Platinum 8480+)
    • INTEL XEON 6 - 6500 / 6700 (Xeon 6 6530P, Xeon 6 6787P)

    Specifications

    • Block Material: Nickel-plated T2 copper, brass and aluminum top

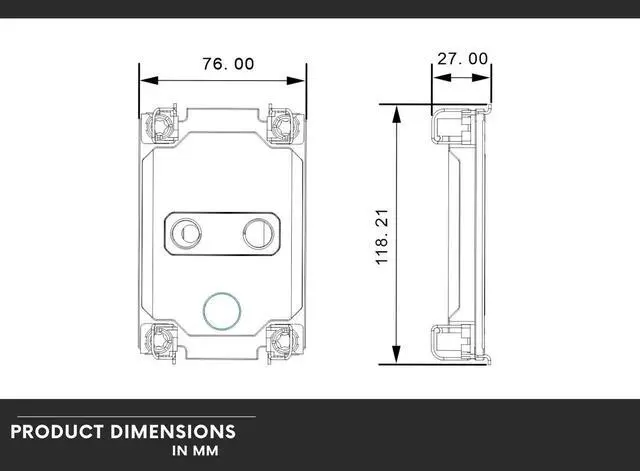

    • Dimensions: 123.73 x 76.00 x 27.00 mm
    • Port Thread: G1/4

    In the box

    • CPU Water Cooling Block
    • Installation Hardware, including thermal paste
    • Backplate

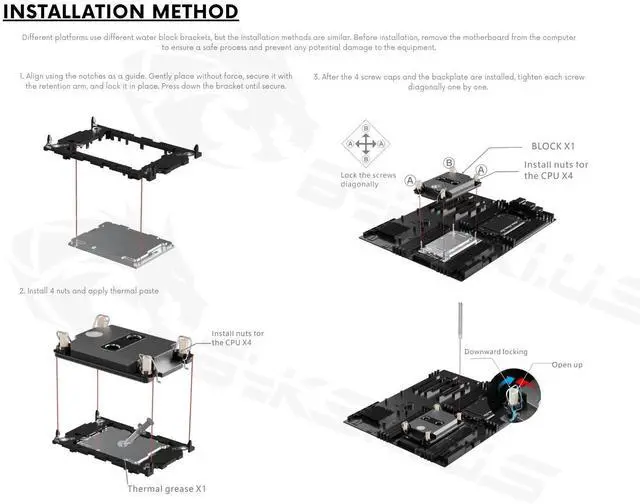

    Installation

    • Power down the system and remove the existing CPU cooler.
    • Clean the CPU surface and apply the included thermal paste.
    • Install the included backplate and mounting hardware for your socket.
    • Set the block on the CPU and secure it with the mounting screws.
    • Install G1/4 fittings, connect the block to your loop, then leak test before powering on.

    Warnings

    Thermal paste goes on the CPU's integrated heat spreader; never use thermal pads there.

    Tighten the mounting screws in a cross pattern, finger tight. Over-tightening can bend the socket retention frame.

    No printed instructions are included; the installation illustration is in the product images.

    Self-installation by users experienced with PC water cooling. The manufacturer may update the design, so the product you receive may differ slightly from the images. The manufacturer is not liable for damage caused by misuse, improper installation, operation outside the stated specifications, or incompatible hardware or fluids. Installing and using this product means you accept these risks.
