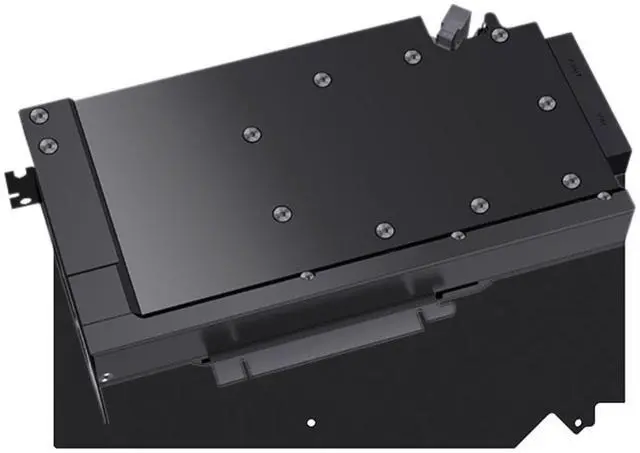

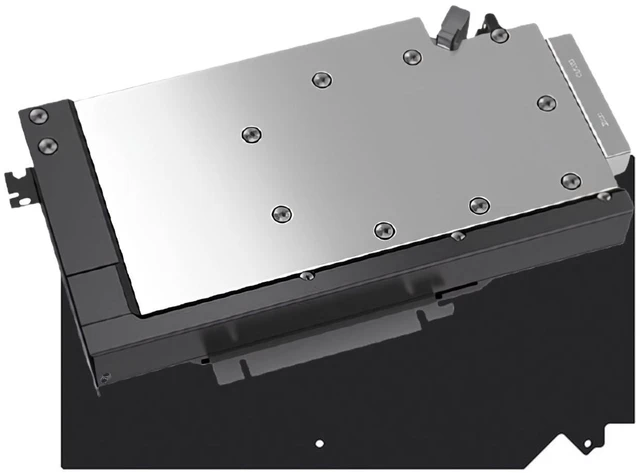

Bykski Durable All Metal GPU Water Block and Backplate For NVIDIA RTX PRO 6000 Blackwell Workstation Edition (N-RTXPRO6000-WS-SR) - Continuous Usage

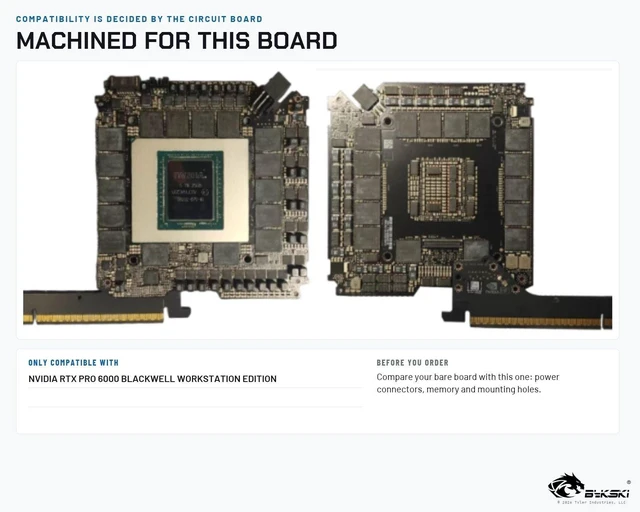

- FITS NVIDIA RTX PRO 6000: Custom designed for the NVIDIA RTX PRO 6000 Blackwell Workstation Edition circuit board. Direct mounting matches original component locations across the board layout.
- FULL COVERAGE COPPER BASE: A 9.5 mm T2 copper cold plate covers the GPU chip, memory, and power delivery stages. Thin 0.35 mm base thickness under the core maximizes direct heat transfer.
- JET MICRO-CHANNEL DESIGN: Features 56 micro-channels at 0.3 mm width yielding 15565 mm2 of heat dissipation area. High-flow routing supports running several workstation blocks in series.
- CONTINUOUS-DUTY BUILD: Built with 304 stainless steel and electroless nickel plating to prevent corrosion. An aluminum backplate protects the board during 24/7 continuous workstation use.
- USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

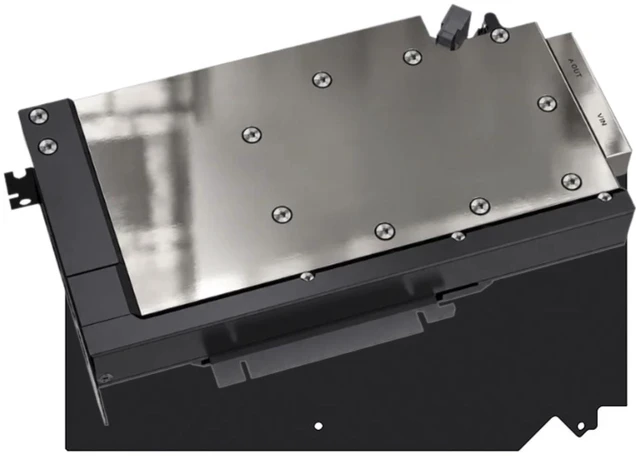

The Bykski water block cools the NVIDIA RTX PRO 6000 Blackwell Workstation Edition graphics card, covering the GPU chip, the memory, and the power stages in one pass.
Workstation cards run at board power continuously, requiring dedicated liquid heat transfer. The block utilizes a 9.5 mm T2 copper base with 0.35 mm core thickness, 56 micro-channels measuring 0.3 mm, and electroless nickel plating between 0.001 mm and 0.002 mm. A 304 stainless steel top panel and aluminum backplate provide structural rigidity for multi-card compute environments.
Specifications
- Block Material: Nickel-plated T2 copper, 304 stainless steel top
- Backplate Material: Anodized aluminum (not in contact with coolant)

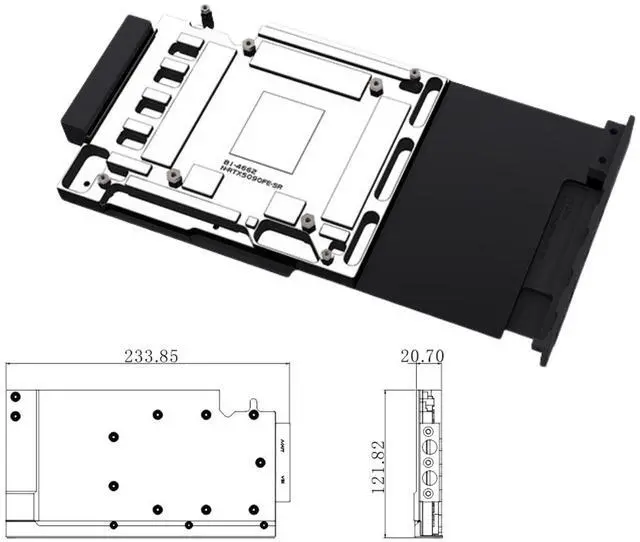

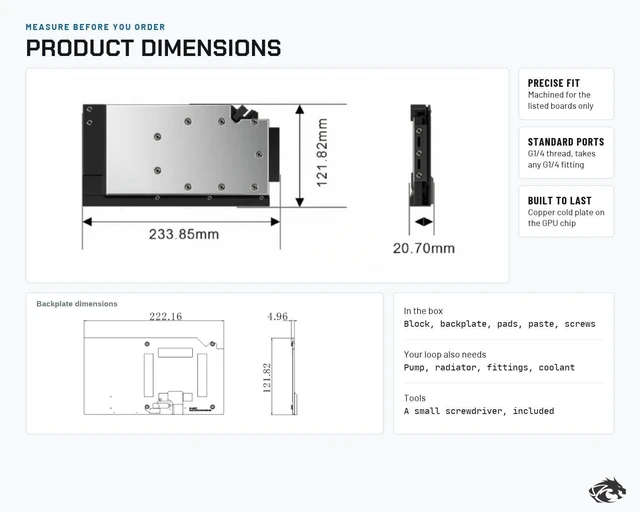

- Dimensions: 233.85 x 121.82 x 20.70 mm (width includes ports)
- Port Thread: G1/4

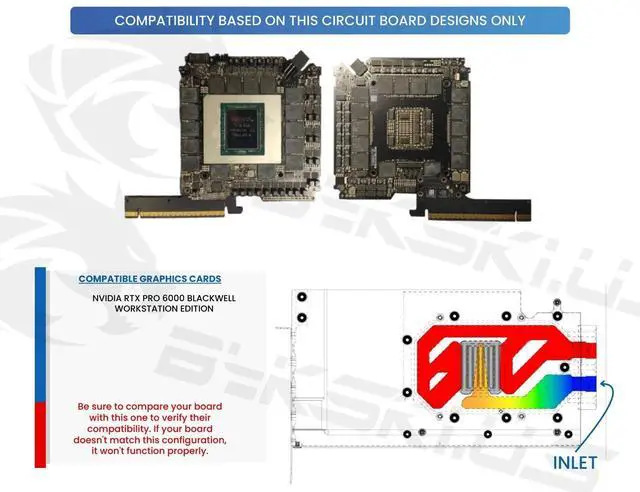

Compatibility
ONLY Compatible with:
- NVIDIA NVIDIA 6000 - RTX PRO 6000 BLACKWELL WORKSTATION EDITION
Parts Included
- GPU water block with backplate: 1
- Thermal pads: 1.5 mm
- Thermal paste: 1

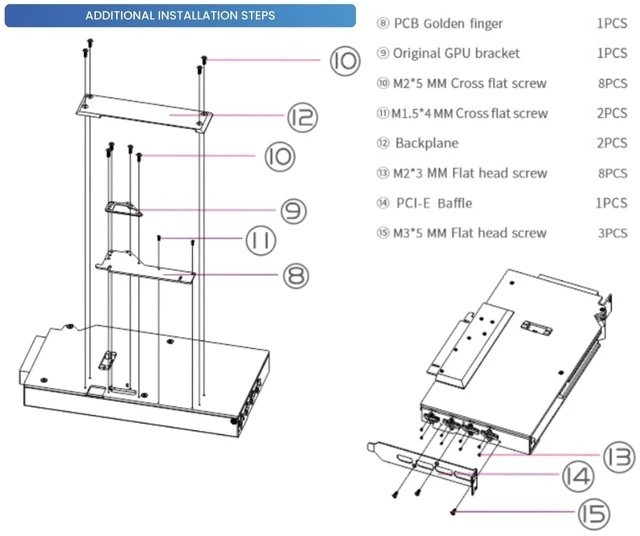

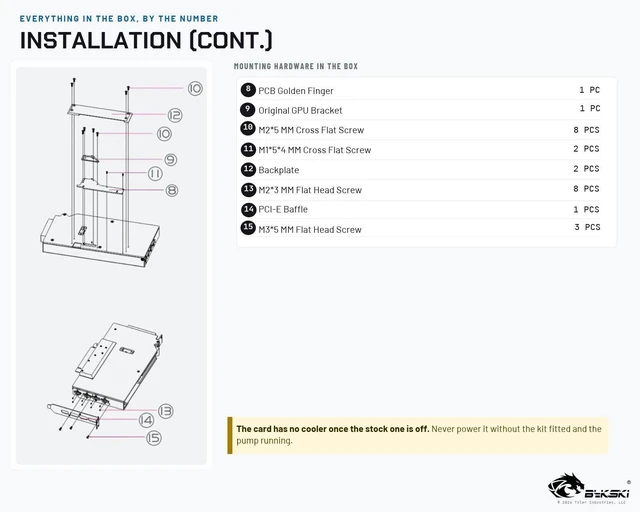

- Mounting hardware
Warnings
Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

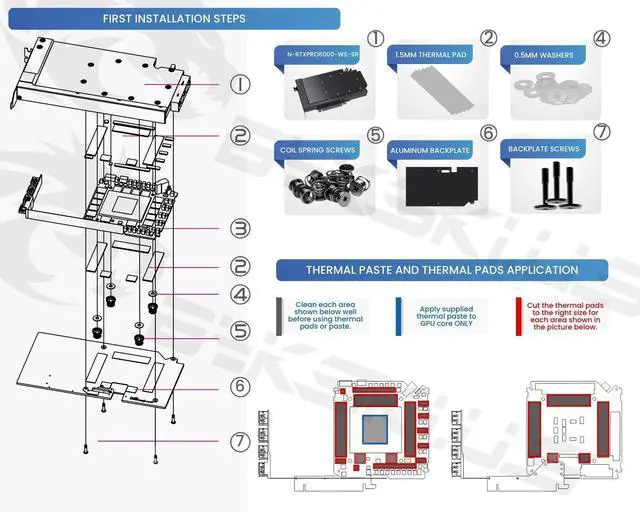

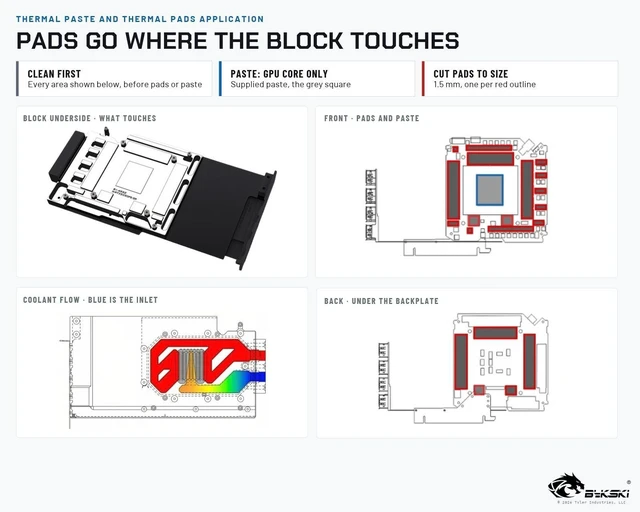

Installation removes the card's stock heatsink, after which it can no longer be cooled by chassis air. Never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the die itself uses thermal paste.

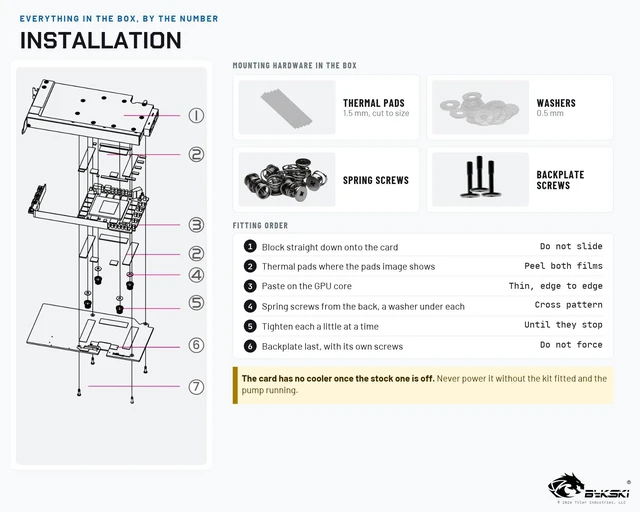

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
