Bykski CPU-7529-SR CPU Water Block for Intel LGA 7529
- FITS: Built for Intel Xeon 6 6900-series processors, such as the Xeon 6 6980P. It mounts directly on the server socket (LGA 7529).
- COLD PLATE: A nickel-plated T2 copper plate with 65 micro-channels draws heat off the processor. The fine channels give the loop a large metal surface to work through.

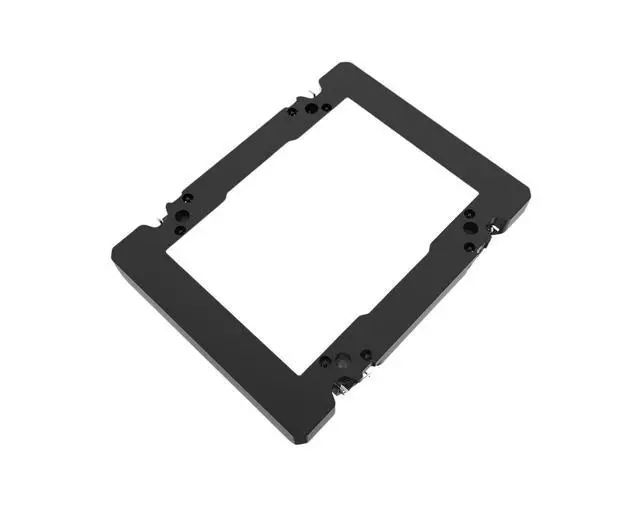

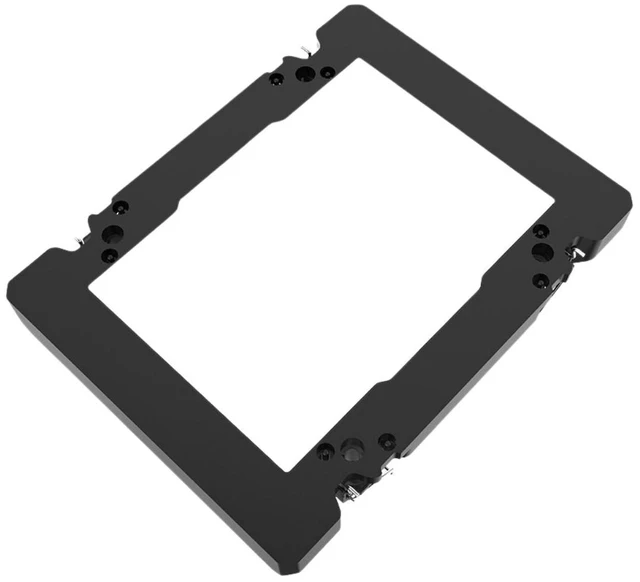

- MOUNTING: LGA 7529 mounting hardware ships with the block, along with thermal paste. Everything needed to seat the block on the socket comes in the box.

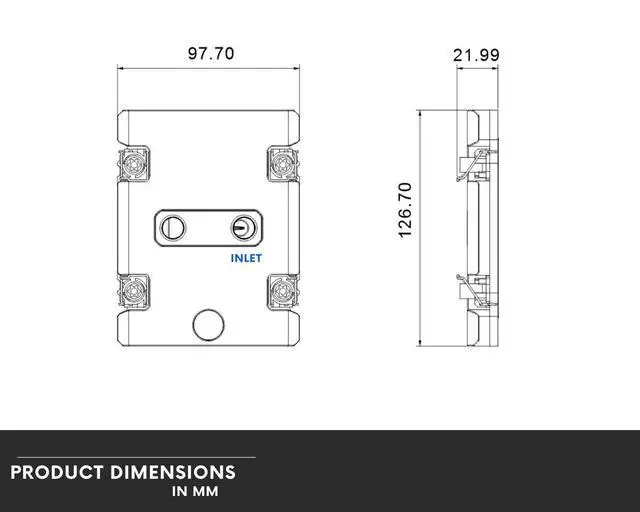

- WHAT HAS TO FIT: It uses the LGA 7529 mounting pattern and measures 126.70 x 97.70 x 21.99 mm, ports included. Check the room around the socket for memory modules and tubing.
- USA SUPPORT, FRIENDLY AND EXPERIENCED: Tyler Direct provides knowledgeable US-based support for troubleshooting and compatibility questions. Every purchase carries a 1-year warranty covering defects.
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

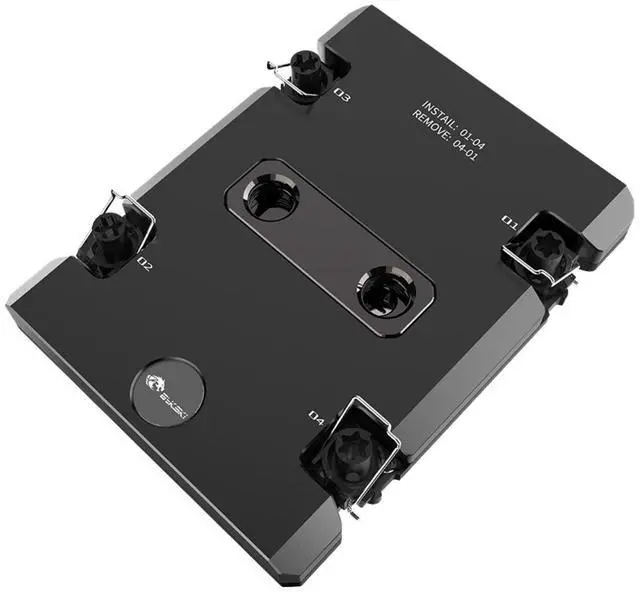

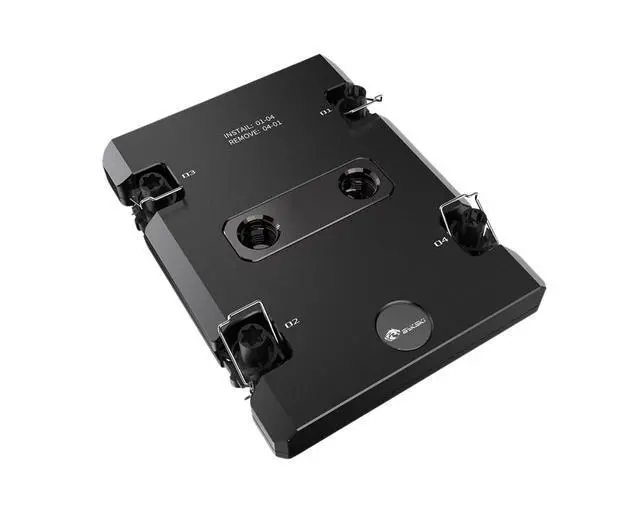

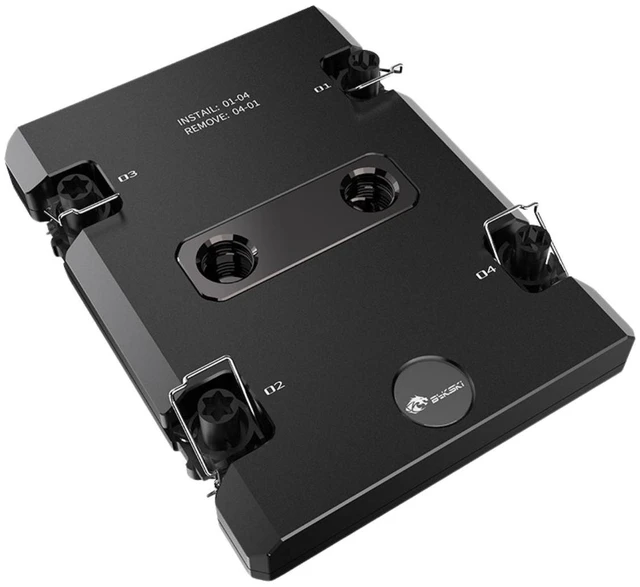

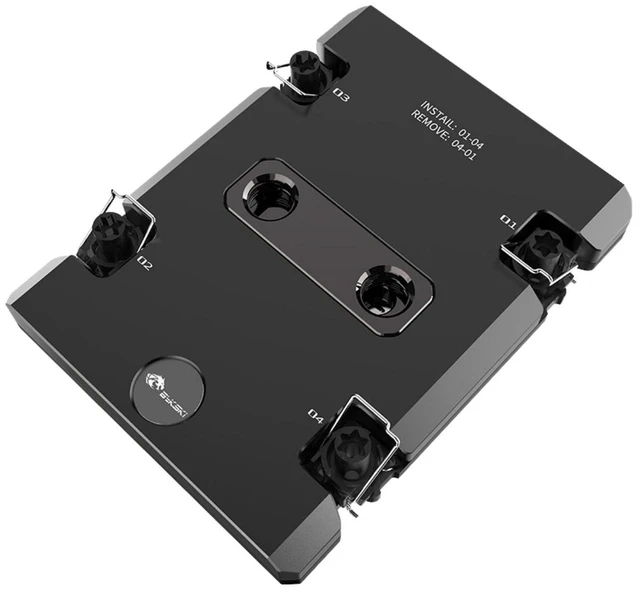

The Bykski CPU-7529-SR is a CPU water block for Intel Xeon 6 6900-series processors, such as the Xeon 6 6980P, on the LGA 7529 socket. It is made for workstation and server builders who want these processors in a custom loop. A nickel-plated T2 copper cold plate sits under a black anodized brass and aluminum top.
Why it works
- T2 copper cold plate with 65 micro-channels, each 0.3 mm wide
- Electroless nickel plating on the cold plate
- All-metal housing for machines that run around the clock
- G1/4 ports, rated for a working pressure of 6.0 bar
- LGA 7529 mounting hardware and thermal paste in the box

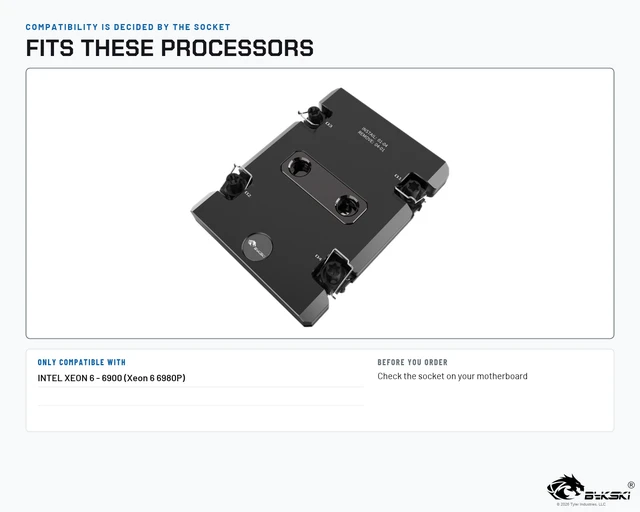

Compatibility
- INTEL XEON 6 - 6900 (Xeon 6 6980P)

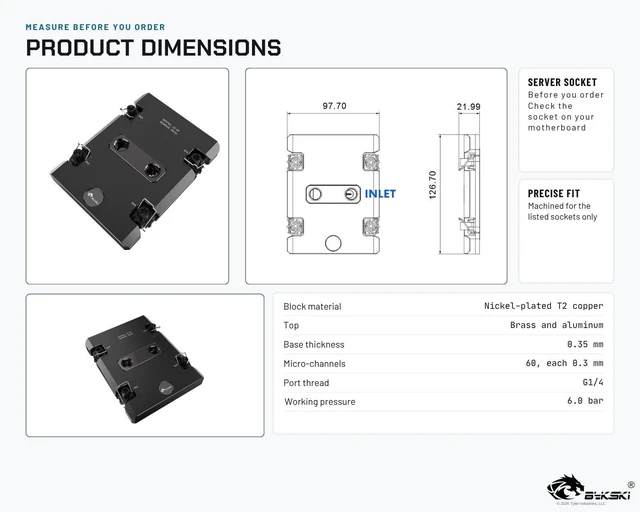

Specifications
- Block Material: Nickel-plated T2 copper, aluminum and brass top
- Dimensions: 126.70 x 97.70 x 21.99 mm (width includes ports)
- Port Thread: G1/4
In the box
- CPU Water Cooling Block
- Installation Hardware, including thermal paste

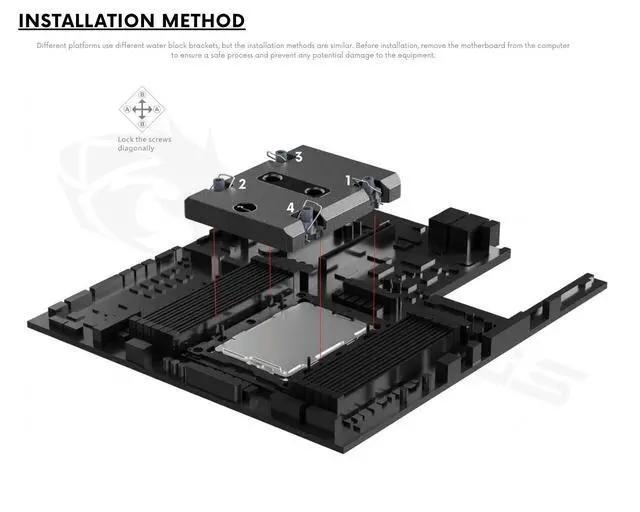

Installation
- Remove the existing cooler from the LGA 7529 socket.
- Fit G1/4 fittings to the block's ports.
- Seat the block on the processor using the included LGA 7529 mounting hardware.
- Connect the block to your loop, fill it, and check every connection before powering on.
Warnings
Thermal paste goes on the CPU's integrated heat spreader; never use thermal pads there.
Tighten the mounting screws in a cross pattern, finger tight. Over-tightening can bend the socket retention frame.

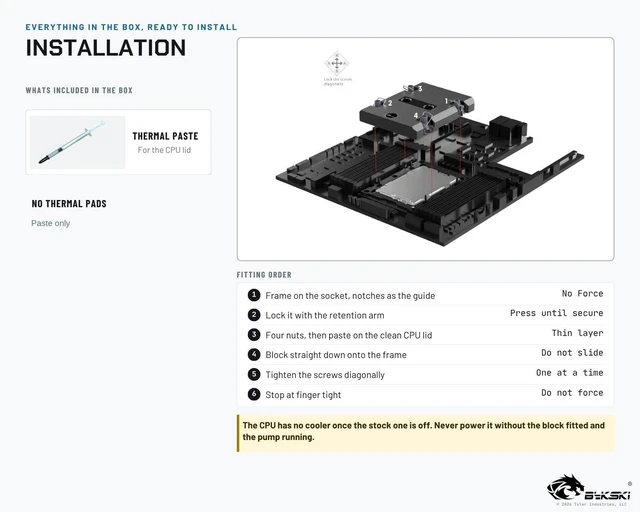

No printed instructions are included; the installation illustration is in the product images.
Self-installation by users experienced with PC water cooling. The manufacturer may update the design, so the product you receive may differ slightly from the images. The manufacturer is not liable for damage caused by misuse, improper installation, operation outside the stated specifications, or incompatible hardware or fluids. Installing and using this product means you accept these risks.
