Bykski Durable All Metal GPU Water Block and Backplate For NVIDIA GeForce RTX 4080 SUPER 32GB (N-RTX4080S-SR) - Continuous Usage

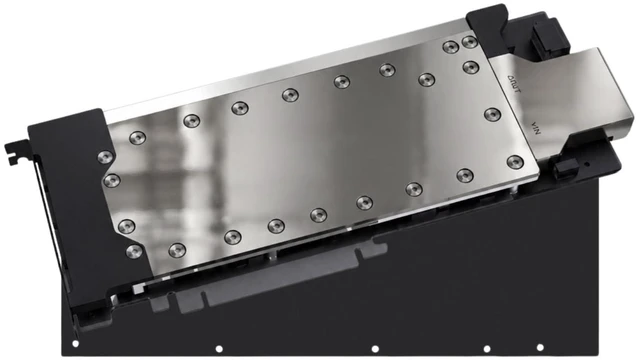

The Bykski N-RTX4080S-SR is a continuous-duty liquid cooling block for NVIDIA GeForce RTX 4080 SUPER 32GB graphics cards. It covers the GPU chip, memory, and power stages in one pass. Removing the stock heatsink transfers the card's thermal load directly to the liquid cooling loop.

Machined from T2 copper with 0.001-0.002 mm electroless nickel plating, the 9.5 mm cold plate features a 0.35 mm base over the GPU core and 56 micro-channels that are 0.3 mm wide. The nickel-plated copper top and EPDM seal are rated for up to 4 bar working pressure, and an aluminum backplate supports the circuit board.

Specifications

• Block Material: Nickel-plated T2 copper, nickel-plated copper top


• Backplate Material: Aluminum (not in contact with coolant)

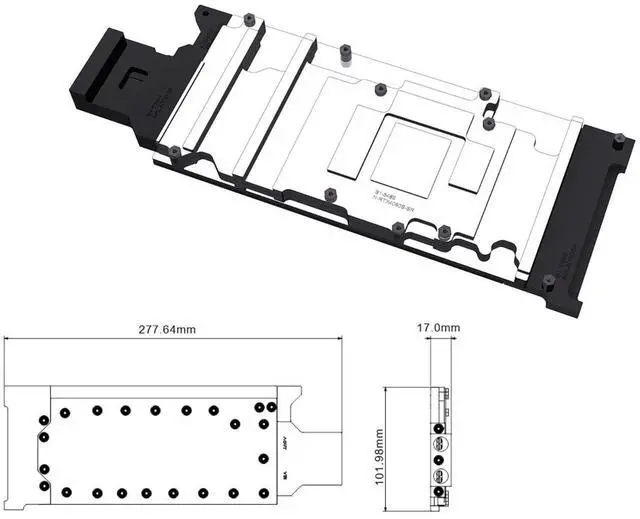

• Dimensions: 277.64 x 101.98 x 17.0 mm


• Port Thread: G1/4

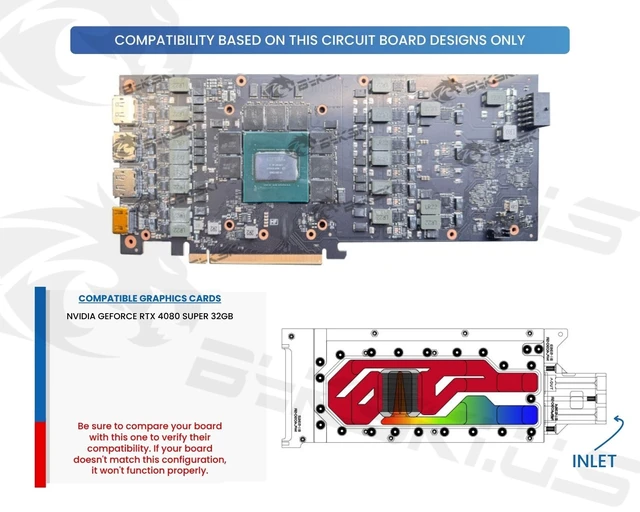

Compatibility

ONLY Compatible with:

• NVIDIA NVIDIA 4080 - GEFORCE RTX 4080 SUPER 32GB

Parts Included

• GPU water block with backplate: 1


• 1.5 mm thermal pads: 5


• 0.5 mm gaskets: 4


• M2 x 5 mm spring screws: 4


• M2 x 10.3 mm backplate screws: 8

Warnings

Warranty is repair or replacement. All returns are accepted within 30 days, no questions asked. An installed or used item comes back at a higher restocking fee.

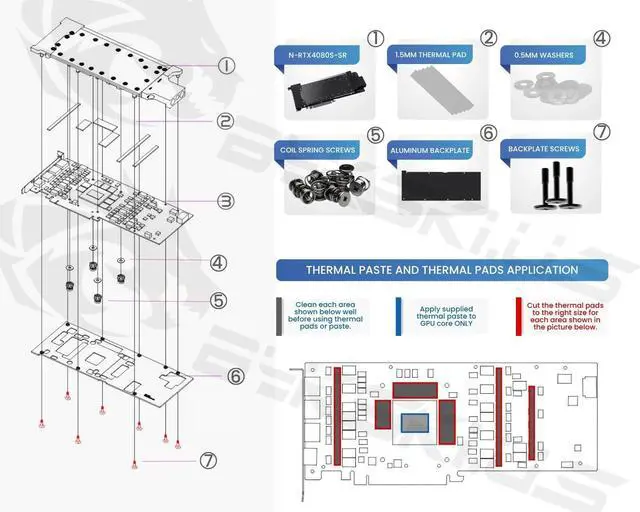

Installation removes the card's stock heatsink, after which it can no longer be cooled by chassis air. Never power the card without the loop installed and the pump running. Thermal pads go where the block has corresponding raised contact points; the die itself uses thermal paste.

No instructions are included, the installation illustration is in the gallery images. The manufacturer may modify the design, so the delivered product may differ from the images. Qualified users must install it themselves. The manufacturer isn't liable for damage caused by misuse, improper installation, noncompliant operation, or incompatible hardware or fluids. Use constitutes acceptance of these risks.
