Bitspower Summit Revo Mk.II AMD Edition

Bitspower Summit Revo Mk.II AMD Edition

SKU: BPM-CPURVA-MP

Redefining Stealth Cooling.

The Summit Revo series, a distinct collaboration between Bitspower and ModdingCafe, established a new standard for minimalist liquid cooling. With the arrival of the Summit Revo Mk.II, that standard is elevated once again. Designed specifically for the AMD platform, this updated block combines a streamlined architectural overhaul with a sophisticated new look, delivering a premium cooling solution for modern Ryzen builds.

Engineered for the perfectionist, the Summit Revo Mk.II routes all coolant flow through the rear of the motherboard, completely eliminating hoses and fittings from the main chamber. This unique design allows for the hardware itself to become the sole focus of the build. Combined with a re-engineered high-flow cooling engine and a seamless, flush-mounted magnetic faceplate, the Summit Revo Mk.II stands as the definitive choice for the ultimate clean aesthetic.

Features

1. Bitspower x ModdingCafe Collaboration A joint design project bringing together Bitspowers manufacturing excellence and ModdingCafes visionary approach to stealth computing.
2. Rear-Routing "Floating" Design By positioning inlet and outlet ports behind the motherboard tray, the block creates a tube-free aesthetic in the main chassis chamber that traditional blocks cannot achieve.
3. Enhanced Hydraulic Performance The internal structure features a completely revised flow engine. Simplified and straightened water channels create a direct, high-velocity path to the copper coldplate, optimizing heat extraction for high performing AMD processors.

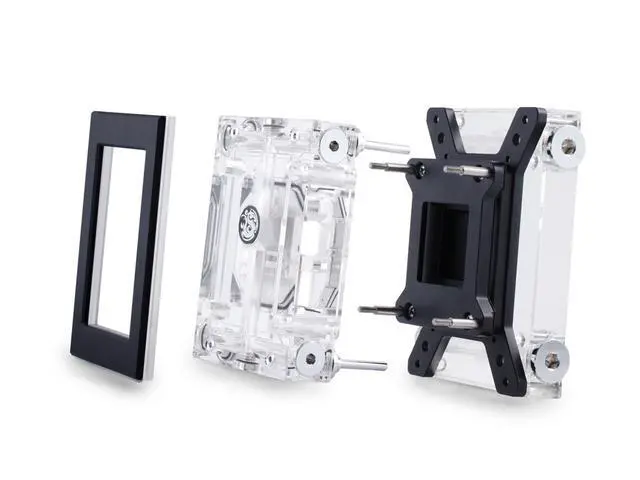

4. Seamless Magnetic Faceplate Frame A new, removable faceplate frame attaches magnetically for effortless maintenance. Unlike the previous generation's top-mounted overlay, this frame sits flush with the block surface, creating a cohesive, unibody profile.
5. Visually Unobstructed Gone is the reflective "window pane" from the previous design. The flush, pane-less design removes visual clutter, offering a clear, edge-to-edge view of the coolant flowing through the acrylic top.
6. Integrated Frame Lighting Digital RGB (DRGB) illumination is built directly into the faceplate frame, providing a refined, integrated glow that accentuates the block's design without the need for external strips.
7. Premium Construction Built to last with a crystal-clear acrylic top and a heavy-duty nickel-plated copper base plate for superior thermal conductivity.

Specifications

1. Product Name: Bitspower Summit Revo Mk.II AMD Edition
2. SKU: BPM-CPURVA-MP
3. Top Material: High-Quality Acrylic
4. Base Material: Nickel-Plated Copper
5. Lighting: Integrated Digital RGB (DRGB)
6. Thread: G1/4" x 6 (Rear Accessible)

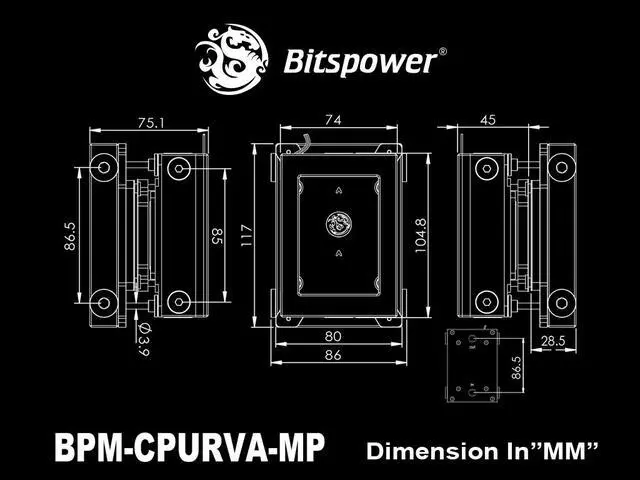

7. Dimensions (LxWxH) : 117x86x75.1MM

Compatibility

CPU Sockets:

1. AMD Socket AM5

Motherboard Requirement:

1. Requires a chassis and motherboard combination that supports rear-side cooling access

Included Items

1. 1x Bitspower Summit Revo Mk.II AMD Edition CPU Block
2. 1x Magnetic Faceplate Frame with Integrated DRGB
3. 1x Mounting Hardware Set (Mounting Bracket, Backplate, Screws)
4. 1x Thermal Paste
5. 1x Installation Guide
