Thermal Grizzly AM5 Mycro Direct-Die ARGB (TG-MY-DD-AM5-RGB)

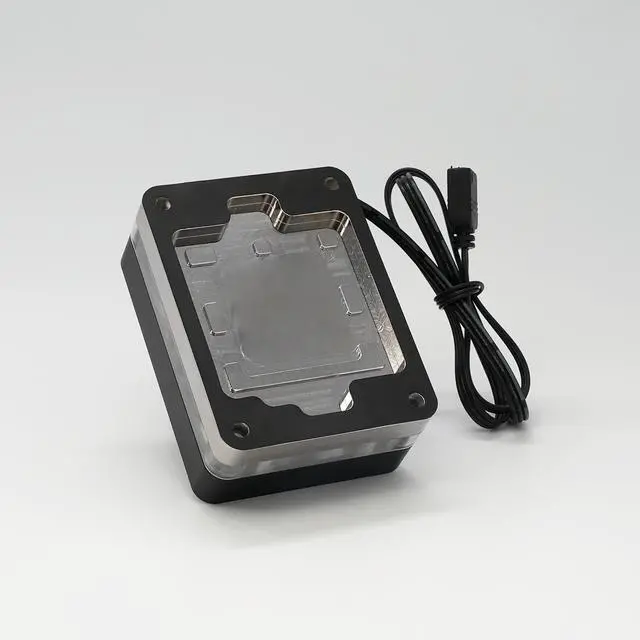

The AM5 Mycro Direct-Die RGB from Thermal Grizzly is a direct-die water cooler for AMD's Ryzen 7000 processors. As the name suggests, the water cooler lies directly on the chiplets of the delidded CPU. Micro fins on the top of the nickel-plated copper cooler are used for optimal transfer of waste heat. Via G1/4-inch connections, the AM5 Mycro Direct-Die RGB is integrated into the circuit of a custom water cooling system. A visually sophisticated appearance is provided by the anodized aluminum cover. Addressable RGB LEDs under the cover visually round off the high-performance water cooler.

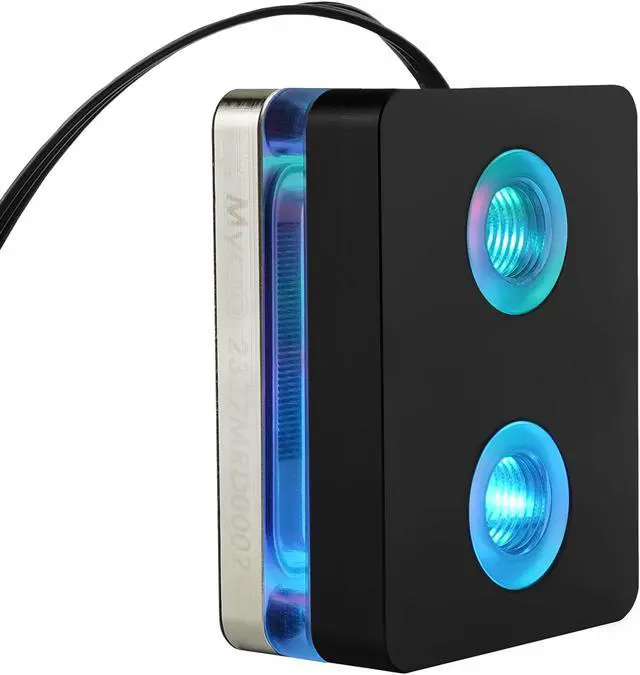

Nickel-plated copper radiator with microfin structureThe AM5 Mycro Direct-Die RGB replaces both the motherboard's Socket Actuation Mechanism (SAM) and the heatspreader of the Ryzen 7000 processor. Thus, the processor has to be delidded. On the significantly larger surface of the nickel-plated copper heatspreader compared to the stock heatspreader, there are optimized microfins that dissipate the waste heat extremely effectively into the water circuit of the custom cooling. At the same time, an optimal contact pressure of the CPU into the socket is enabled. Water cooler for direct die mountingMicrofin cooler made of nickel-plated copperReplaces SAM and heatspreaderAnodized aluminum coverAddressable RGB lightingG1/4 inch connectionsOnly for delidded CPUs! Addressable RGB lighting & stylish coverOn top of the copper cooler, the Mycro Direct-Die RGB has a block of acrylic glass in which the G1/4-inch connections are located.

The acrylic glass is subjected to an annealing process after milling. This frees the acrylic glass from internal surface stresses. This ensures that no stress cracks form in the acrylic glass even after a long period of use, as can happen with tempered acrylic glass. The RGB LED lighting is located under the anodized aluminum cover and consists of 13 addressable LEDs. The cable plugs into the 3-pin ARGB header (+5V/- DATA/GND) of the motherboard. T
