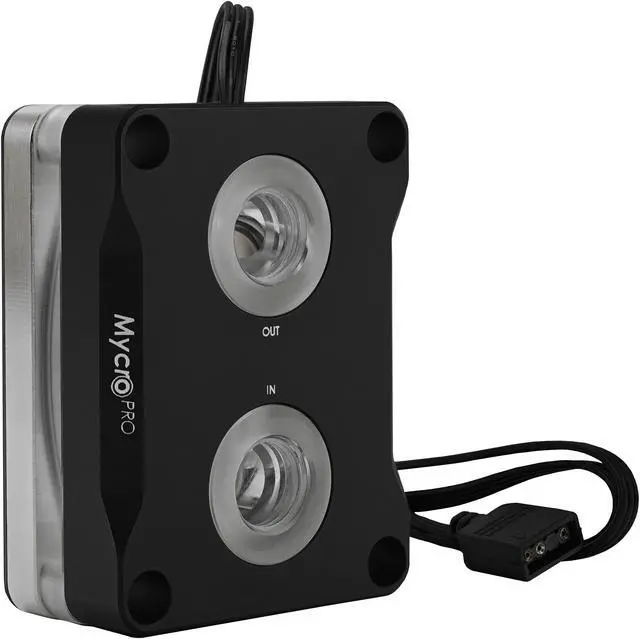

Thermal Grizzly â AM5 Mycro Direct-Die PRO ARGB V1

The AMD Mycro Direct-Die Pro RGB V1 features a hybrid structure with two different sizes of microfins and a jet plate for optimized flow. The cooler's cold plate is made of nickel-plated copper and is mounted directly on the CPU chip. For this, the Socket Actuation Mechanism (SAM) of the motherboard is removed, and the processor must be delidded. The nickel plating of the cooler plate creates a barrier layer, preventing gallium-based liquid metal from diffusing into the copper, making multiple applications of liquid metal usually unnecessary. Water cooler for direct-die mountingMicrofin cooler made of nickel-plated copperReplaces SAM and heatspreaderAcrylic and aluminum coverG1/4-inch connectionsCPU compatibility list available onlineFor delidded CPUs only!
Caution: voids warranty! Between the cold plate and the anodized aluminum cover, there is acrylic glass, which undergoes an annealing process after milling to relieve internal stress. This ensures that no stress cracks form in the acrylic glass over time, unlike hardened acrylic glass. RGB LEDs are located under the aluminum cover and are controlled via a 3-pin ARGB header (+5V/DATA/GND) through the motherboard. The LEDs illuminate the acrylic glass under the cover and the G1/4-inch connectors on the cover.
Attention: Removing the heatspreader (“ delidding” ) of a processor is at your own risk! The manufacturer's warranty expires when the CPU is delidded! Damage caused by delidding the CPU is not covered by the manufacturer's warranty! Removing the Socket Actuation Mechanism (SAM) of the mainboard may invalidate the manufacturer's warranty of the mainboard manufacturer! Ryzen 8X00G
Compatibility:
Attention: The Mycro Direct-Die RGB isNOT COMPATIBLEwith the APUs of the Ryzen 8000G series! For more information on the compatibility of the AMD Ryzen 5 8500G, AMD Ryzen 5 8600G and AMD Ryzen 7 8700G with our products, please
watch the following video: “ AMD Ryzen 8000 Delidded - Liquid Metal Chan
