Thermal Grizzly Kapton Insulation Sheet - Black Edition (TG-KIS-B-10-60-50)

Thermal Grizzly's Kapton Insulation Sheet Black Edition is an electrically insulating adhesive film for masking the components around a CPU or GPU die before an electrically conductive thermal interface material (TIM) goes on. It is the thinner, stronger version of the standard yellow sheet.

Properties

• Amount: 50 adhesive strips
• Strip size: 10 x 60 mm
• Thickness: 30 µm
• Material: Polyimide (PI), matte black
• Max temperature: 260 °C short term, 180 °C long term
• Breakdown voltage: 5 kV

What it is for

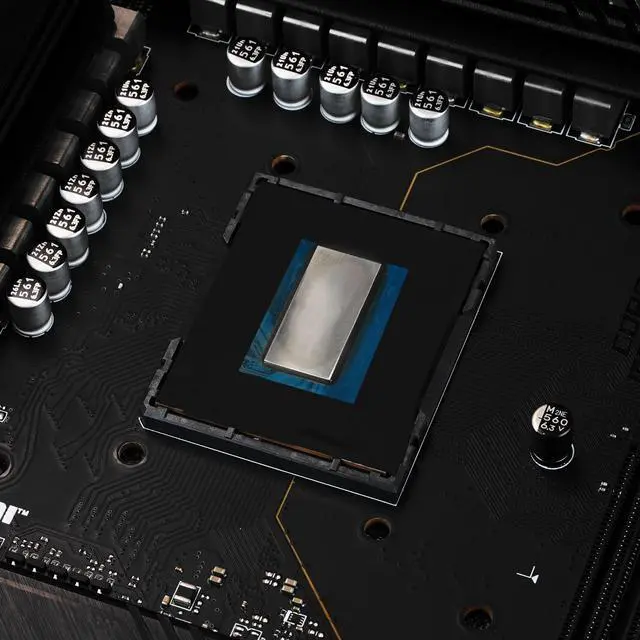

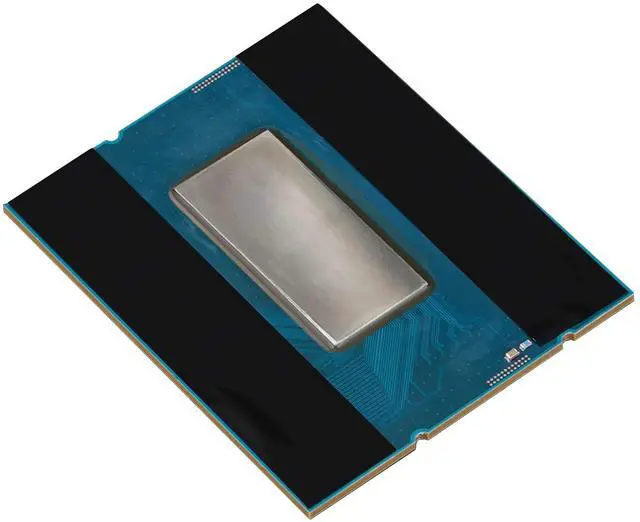

The film can be used at high temperatures and serves as an installation aid for TIM materials that conduct electricity, such as Conductonaut liquid metal, Carbonaut, or KryoSheet. When using these materials it is ideal for precise masking of parts such as SMDs. The data sheet gives the RAM components on a graphics card as another example.

Black Edition against the standard sheet

Compared to the standard sheet, this one is slightly thinner (30 µm instead of 40 µm) and offers a significantly higher breakdown voltage. Its short-term temperature limit is a little lower, 260 °C against 280 °C.

• Kapton Insulation Sheets comparison Standard Black Edition
• Material Polyimide (PI) Polyimide (PI)
• Color Yellow Black, matte
• Total thickness 40 µm 30 µm
• Long-term temperature resistance 180 °C 180 °C
• Short-term temperature resistance 280 °C 260 °C
• Breakdown voltage Over 1 kV 5 kV
• Electrically insulating Yes Yes

Strips and applying them

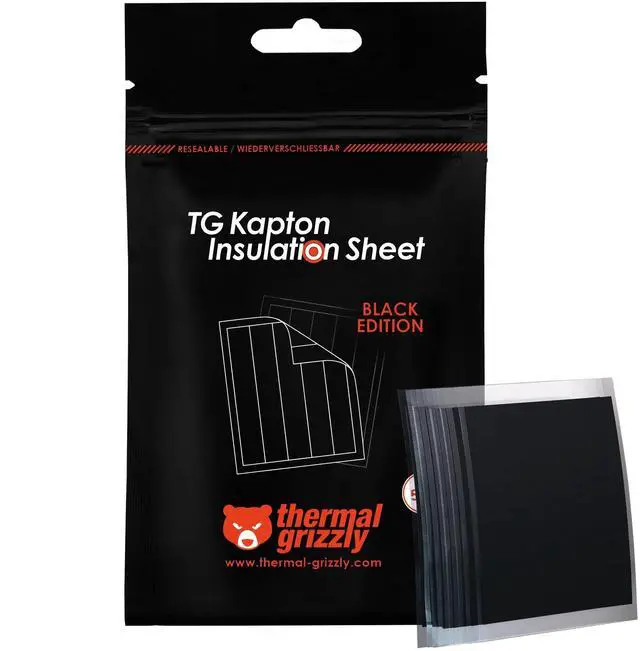

The scope of delivery is 10 carrier sheets, and the film is supplied on them with each sheet containing 5 Kapton strips. Each strip measures 10 mm in width and 60 mm in length. Clean the adhesive surface beforehand! It is recommended to clean the contact surfaces thoroughly before applying a strip, e.g., using isopropyl alcohol.

Not for High Performance Heatspreaders or Direct-Die coolers

Thermal Grizzly says the strips should not be combined with a High Performance Heatspreader (HPHS) or a Direct-Die cooler, because both rest directly on the CPU package. Their internal structure may end up sitting on the film, which prevents contact between the CPU die and the HPHS or cooler. To protect the electronic components in those builds, apply a thin layer of TG Shield instead.

In the box

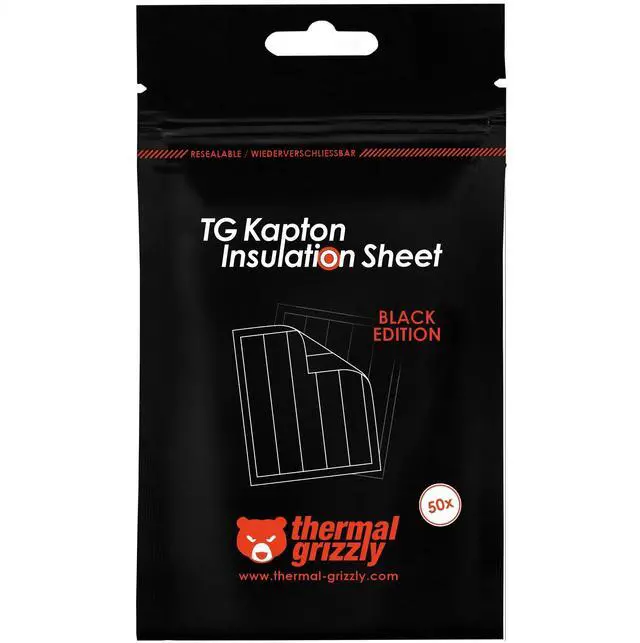

• 10x carrier foil with 5 strips each (50 strips in total)
