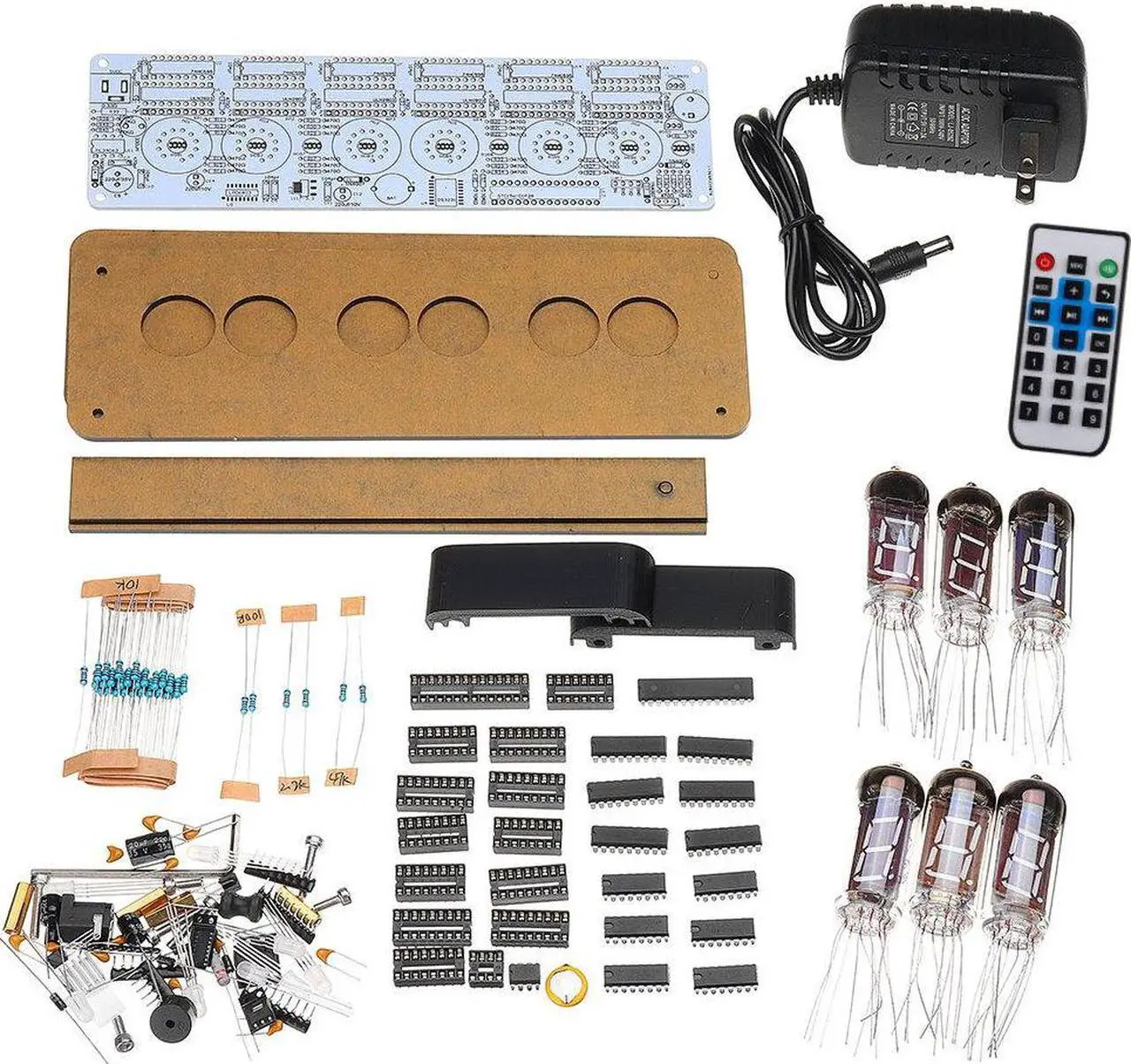

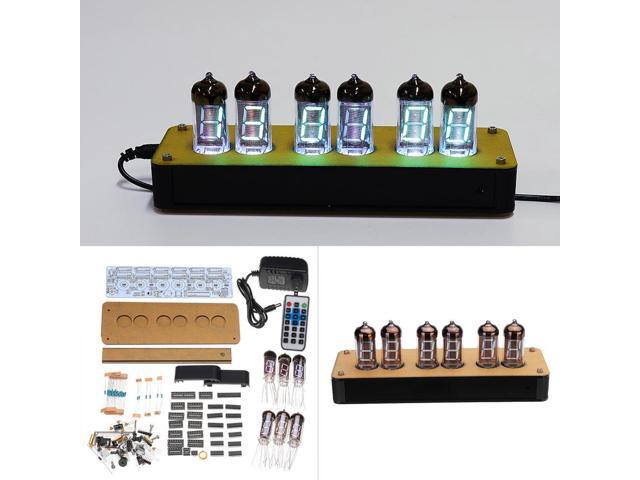

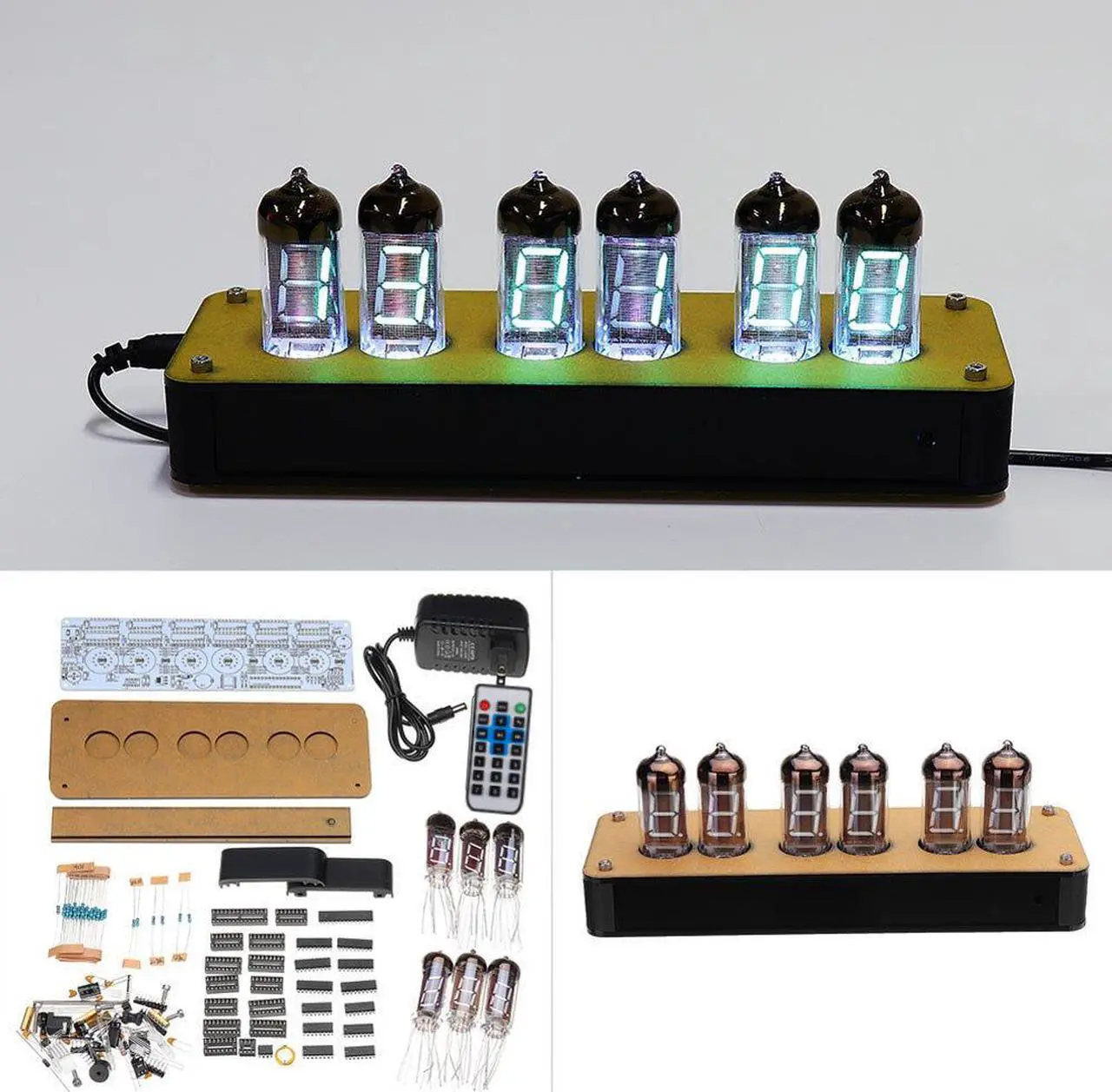

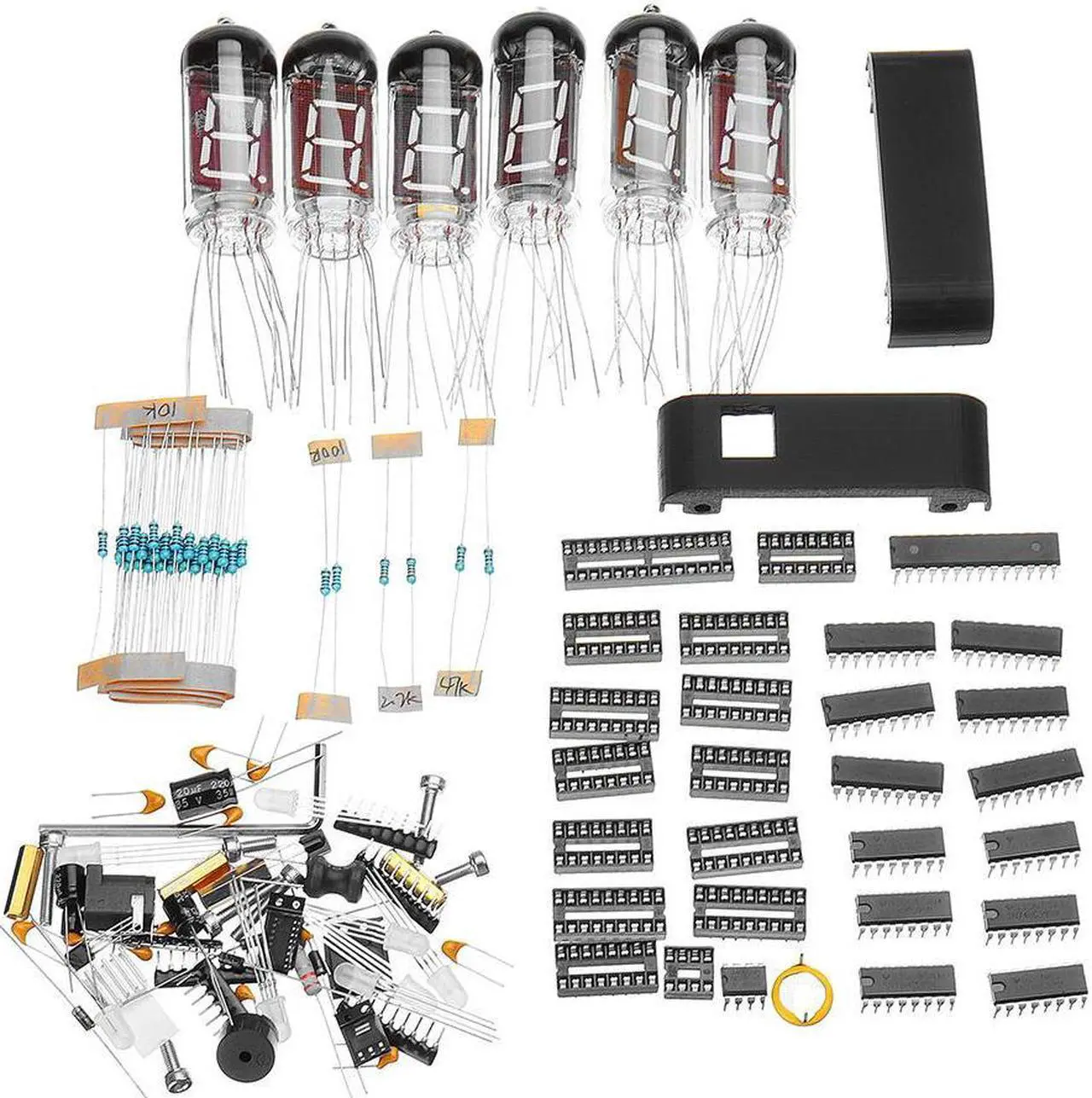

DIY NB-11 Fluorescent Tube Clock IV-11 Kit VFD Tube Kit VFD Vacuum Fluorescent Display

Description:

This is a DIY kit, need to assemble it yourself, if you need to buy finished one, please go to

1369844

.

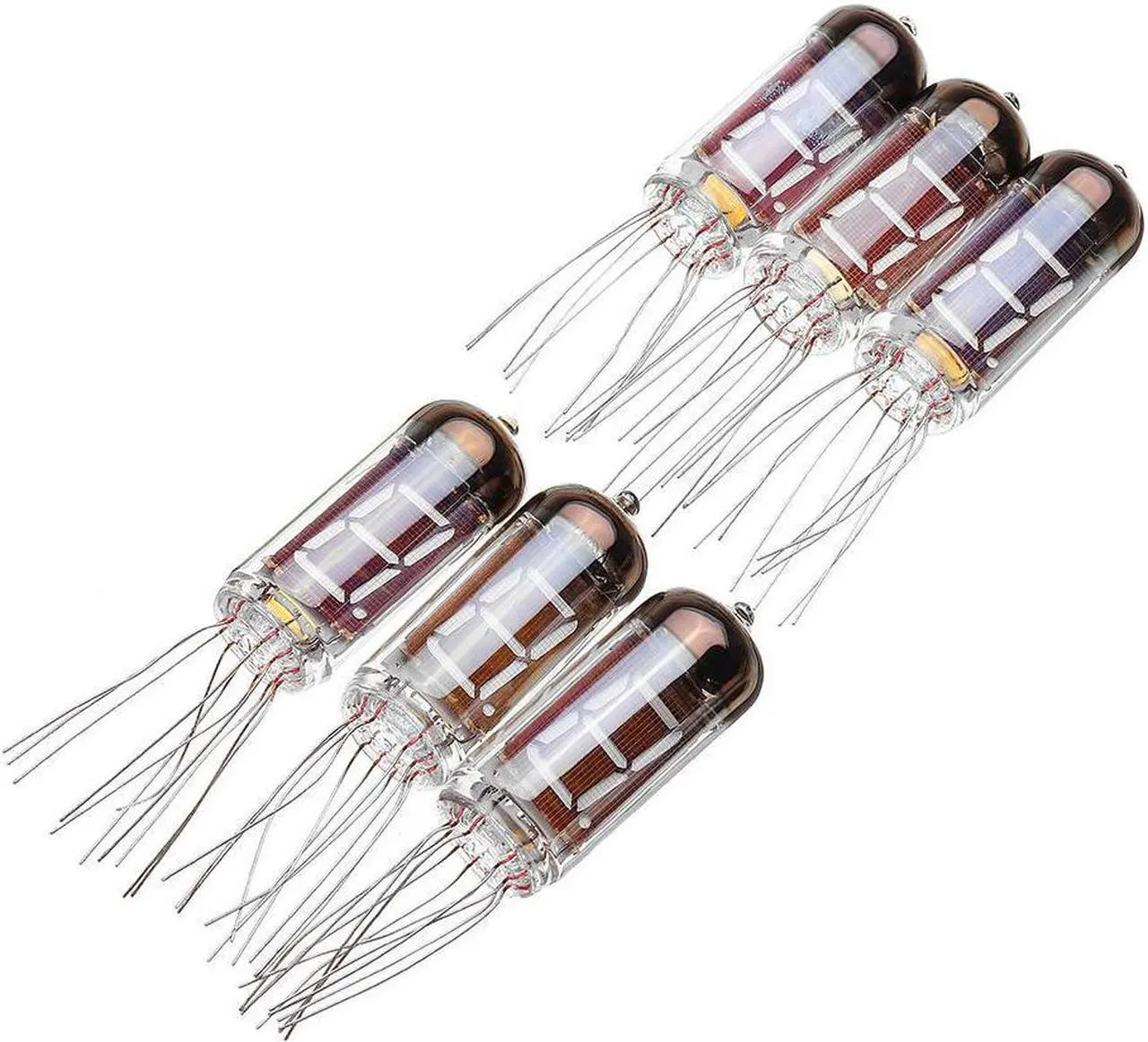

Type: IV-11

RGB full-color background lamp

Using a 5VDC power supply

Soldering tips.

Function:

1. The use of high precision clock chip display time (upgrade: support 12/24 hours display);

2. The use of high precision clock chip display date (Upgrade: Support year, month, day/month, day, year/day, month, year format);

3. Automatic switch setting;

4. With a timing alarm clock that can be switched off and adjusted;

5. Using interrupt mode to read the DS18B20 temperature code, read the temperature value is accurate, does not beat. Unlike regular reading of the DS18B20 code, the code handles things a little more and is not normal;

6. Can be switched automatically alternately display time, date, temperature (Duration can be set);

7. Two breathing lamps in the center, the color can be adjusted by remote control;

8. Under the electronic tube with

RGBled

, the effect can be closed. Display mode controllable (Breath 5 times, Automatic color switching).

IV11 fluorescent tube clock infrared remote control button protocol

Button marking

Function

Power button

Turn on/off the automatic switch function

Back button

Display time mode

12/24 hour switching

Display date mode

Year Month

Day/Day Month Year/Month Day Mode Switch

Display temperature mode

Celsius °C / Fahrenheit F mode switching

Time switch mode

3 kinds time period switching

Switching time mode

Turn automatic display on/off

- button

In adjustable mode (when the tube value is flashing), the value is reduced

+ button
