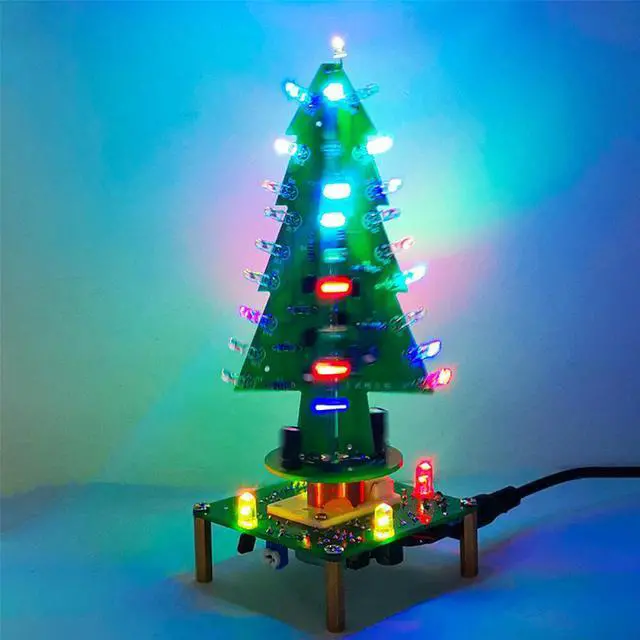

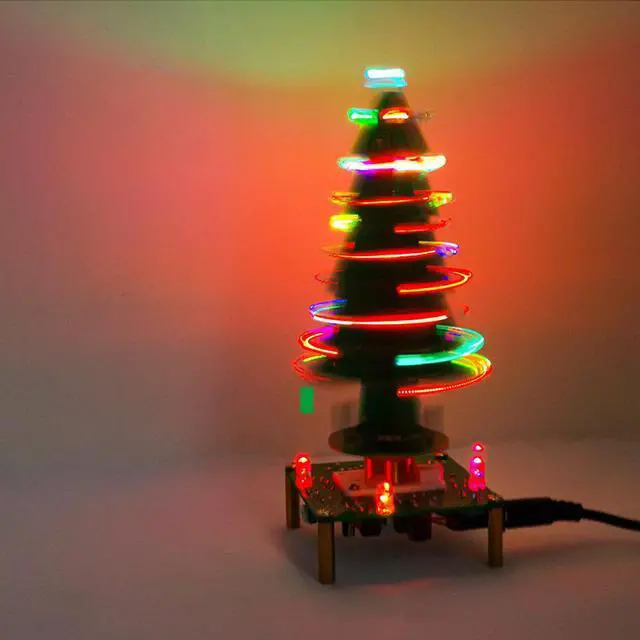

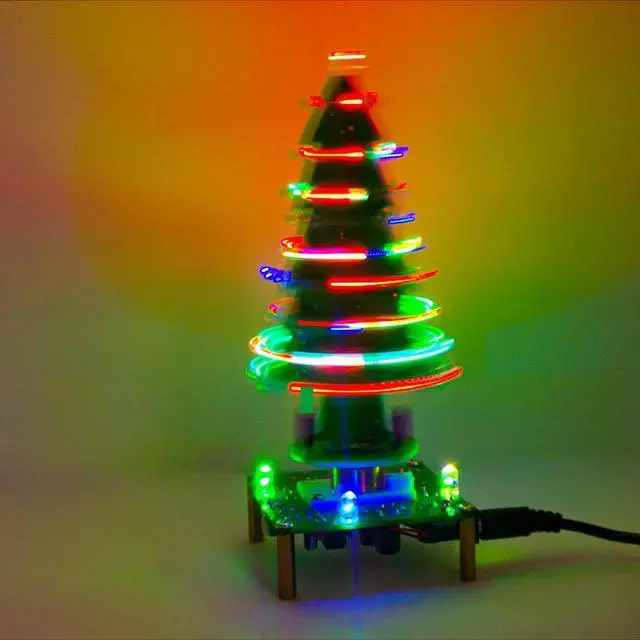

Music LED Three-Dimensional Rotating Christmas Tree DIY Holiday Gift Fun Kit Electronic Production Parts Welding Training
- Good Quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
>>>Manual: Click here to open<<<
Description:

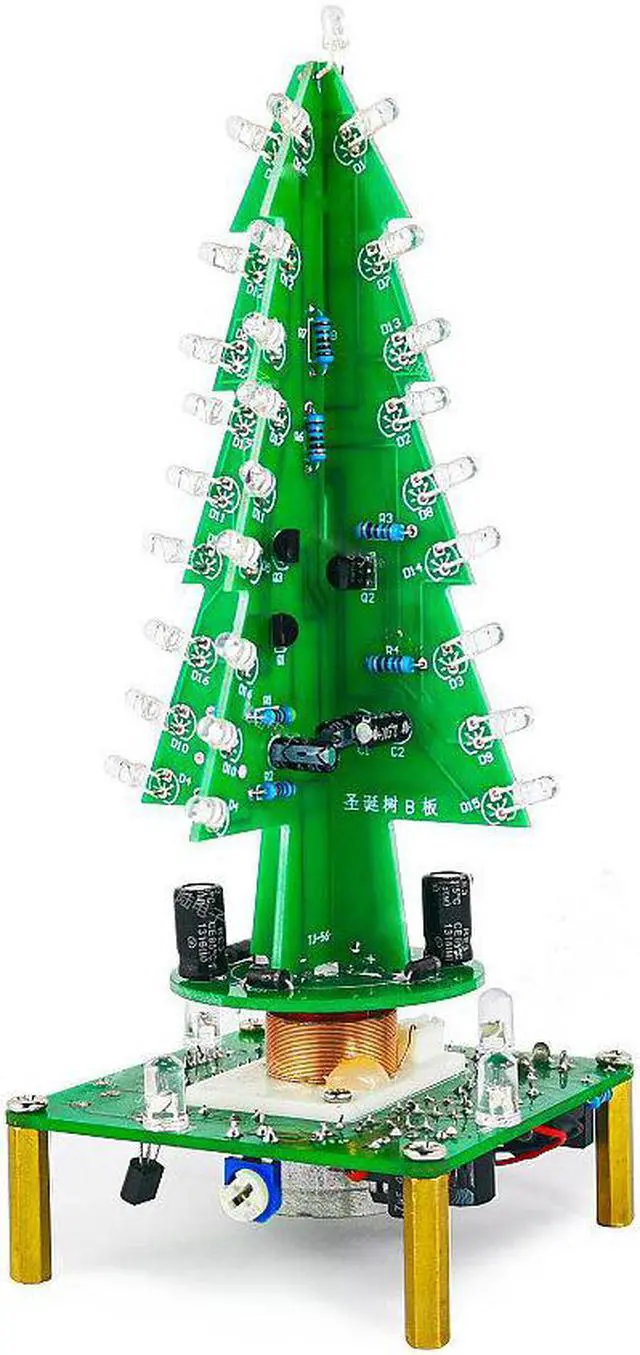

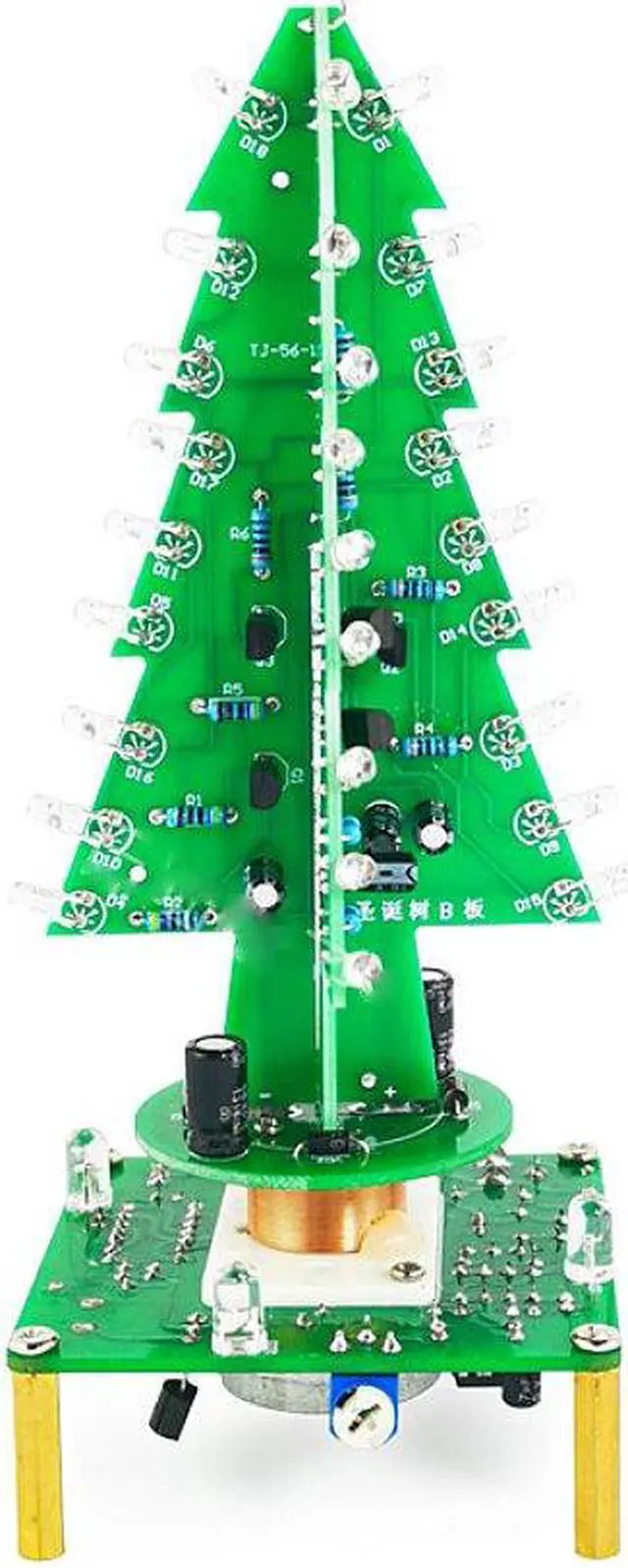

DC 5V, power supply with DC power plug, positive inside and negative outside. The circuit is mainly composed of a wireless power supply board, a wireless receiving board, and two Christmas tree ccircuit boards. The wireless power supply part is mainly composed of a NE555 oscillating circuit that outputs a ssquare wave signal of about 50kHz to drive the field effect tube IRF530. The primary coil and the secondary coil on the receiving board and the magnetic ring form a switching transformer. The FET is used to control the primary coil to generate a high-speed alternating magnetic field, thereby inducing alternating current on the secondary coil and providing it to the three-dimensional Christmas tree after full-wave rectification. use.
Parameter:
Supply voltage:
Base 5V DC power supply (5.5*2.1mmDC power supply seat)
Main body: powered by wireless power supply module
size:
Base: 61*61mm
Main body: 128*61mm
Package Included:
1 x Music LED Three-Dimensional Rotating Christmas Tree DIY Kit
