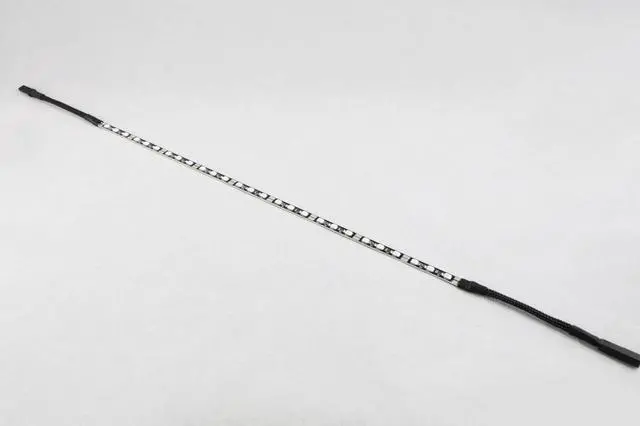

Darkside DUAL CONNECT Extension â 12â³ (30cm) Dual-Ended LED Strip â UV PRO (DS-1155)

You can connect multiple 12 LED strips together. However, we do not recommend linking more than four LEDs directly to one motherboard header. Also note that many motherboard default fan headers voltages to 5v which is not enough for UV light to lit, you need to ensure that voltage is 12v in BIOS.

Modular power extension cable design allows the most suitable power cable type to a Modders need. It also makes it easy to change to another power cable without replacing or modifying the LED itself.

We have a wide range of DarkSide Connect cables to help reduce cable clutter in your custom computer systems. It will help you with building your unique computer to perfection. A full list of power extensions can be found here: CABLES FOR MODULAR LED

Rev G2-Pro Specifics:

The G2-Pro model is the successor of Rev 4.1, it has a wavelength similar to Rev 4.1 and will match the older model well.

Having said that, G2-Pro utilizes a new generation LED IC module that has a noticeably higher light output and a wider beam of light. The Rev 4.1 has a 90-degree beam of light, while G2-Pro has a 120-degree beam of light that covers a larger surface inside a computer case. Those improvements make the G2-Pro Model the most powerful UV LED we ever made.

The G2-Pro continues to utilize an Aluminium PCB design, that provides excellent heat dissipation and offers an extremely low 2mm LED profile well suited for many modding situations (stealth mounting, waterblock lights replacement, etc).

Specification:

•



  • LED Color: UV DARKSIDE CUSTOM WAVELENGTH REV G2-VER1.0



  • PCB: Custom 30cm, Rev 3.1


  • LED count: 27


  • Operating voltage: ~6v-12v (min-to-max brightness)


  • Power consumption: 2.7W


  • Power Wire Type: 7cm, modular (CONNECT)


  • Connector Type-A (DS-0608) and Type-B


  • Sleeving: DarkSide Jet Black sleeving
