    Stealkey Customs UNI Mounting Bracket 28mm (120mm Fan) (SW10135)

    • The SK-UNI mounting bracket 28 mm (120 mm fan) is a steel bracket. It is used to mount all SK-UNI Distroplates/Reservoirs and CubeTube Distroplates to all 120 mm (105 mm hole spacing) mounting holes on the radiator grille/radiator/fan.
    • The distance of 28mm allows the installation of a DDC pump. This means that distroplates/reservoirs with or without a pump on the back can be easily installed in front of fan grilles/radiators/fans. In addition, our spacer bracket "SK-UNI mounting
    • Made of folded, 1.5mm thick, black painted steel, our SK-UNI mounting bracket ensures a stable installation.
    • SK-UNI 80 Pump Combo - Acrylic SK-UNI 120 Pump Combo - Acrylic SK-UNI 240 Pump Combo - Acrylic SK-UNI 120D Distroplate - Acrylic Black Edition SK-UNI 120D Distroplate - Acrylic White Edition SK-UNI 360D Distroplate - Acrylic Black
    • Product dimensions (WxHxD): 115x28x13 mm Color: Black Material: Steel
    • Included in delivery
    +
    +
    Overview
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    The Stealkey Customs SK-UNI Mounting Bracket 28 mm is a pair of black steel brackets that hold a Stealkey distro plate or reservoir 28 mm in front of any 120 mm fan mount (105 mm hole spacing). The gap leaves room for a DDC pump on the back of the plate and lets air flow freely through the fan or radiator behind it.

    Properties

    • Type: Mounting bracket pair for distro plates and reservoirs
    • Fan mount: 120 mm (105 mm hole spacing)
    • Distance: 28 mm
    • Material: Steel, 1.5 mm, black painted
    • Color: Black
    • Pieces in the pack: 1 pair

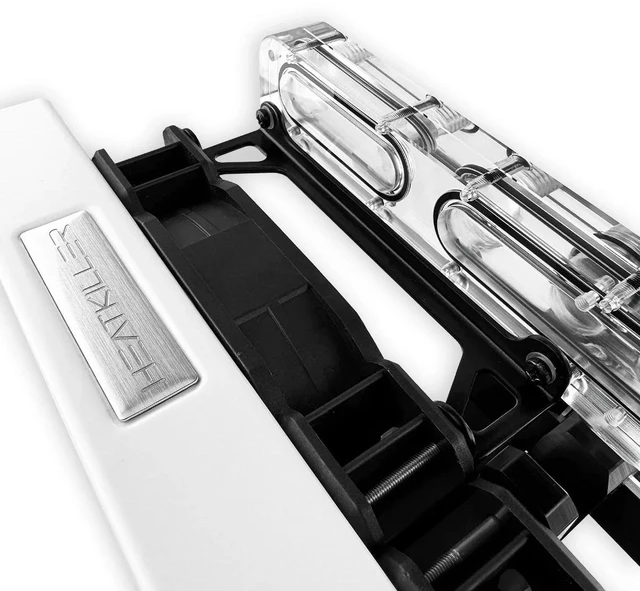

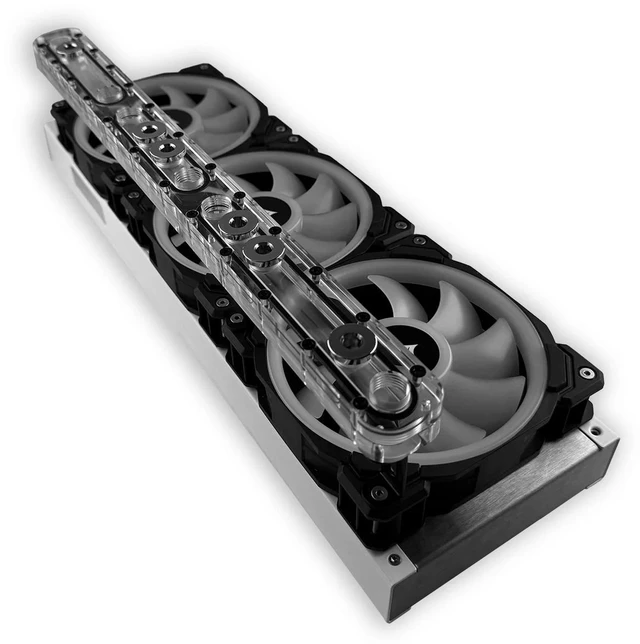

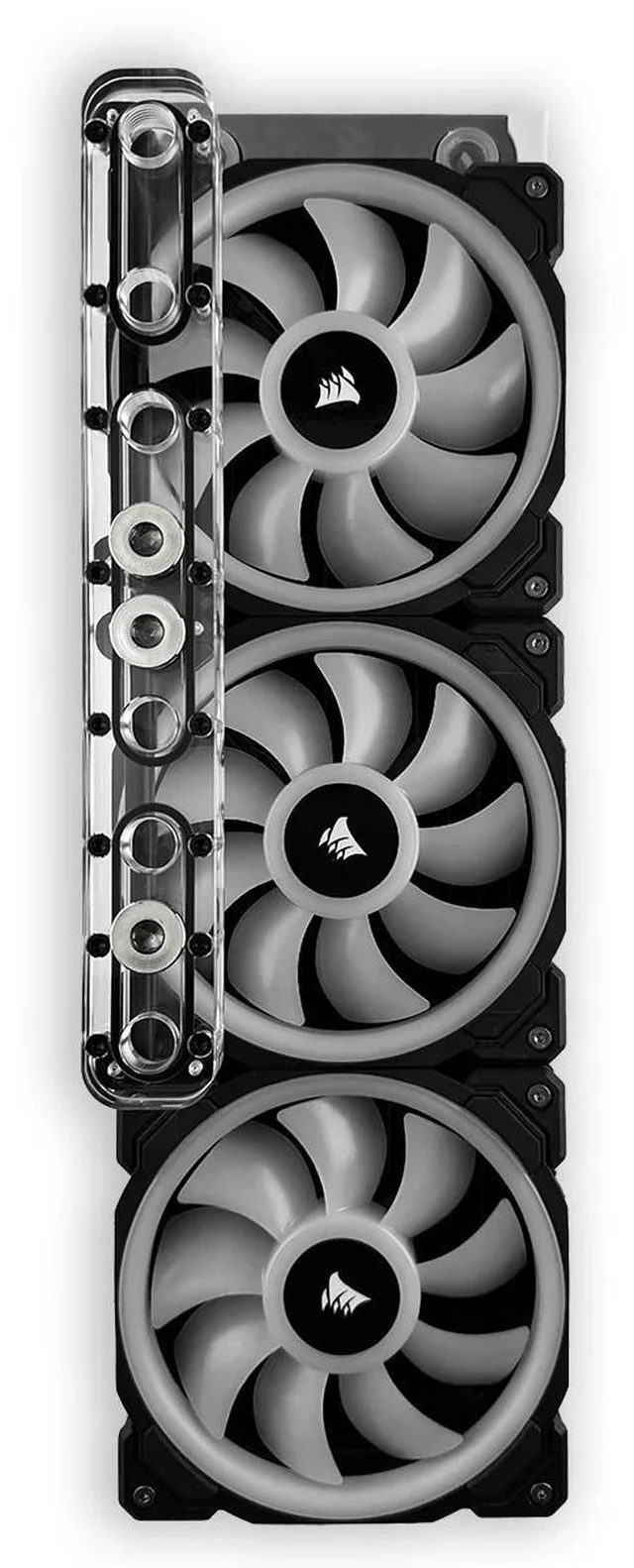

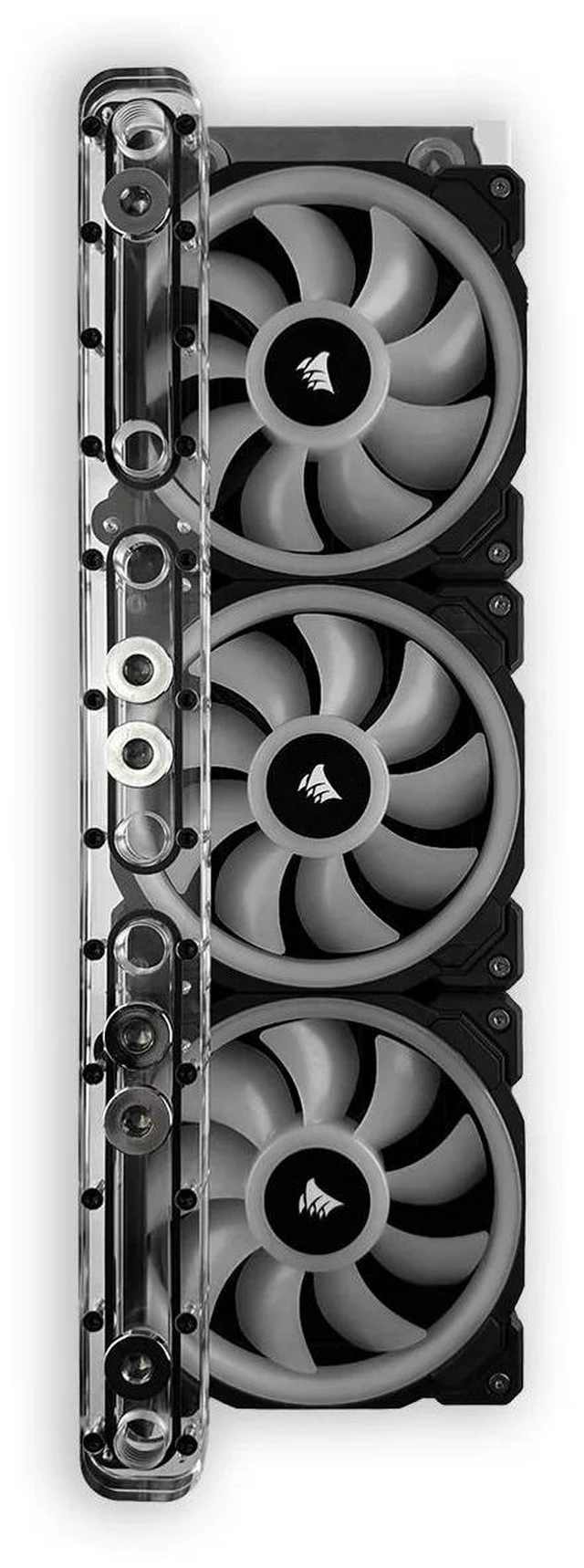

    Mount in front of a fan, grill or radiator

    The brackets fix all SK-UNI distro plates and reservoirs and the CubeTube Distroplates to the 120 mm mounting holes of a fan grill, radiator or fan. The plate sits on the brackets, and the brackets are screwed through the fan holes.

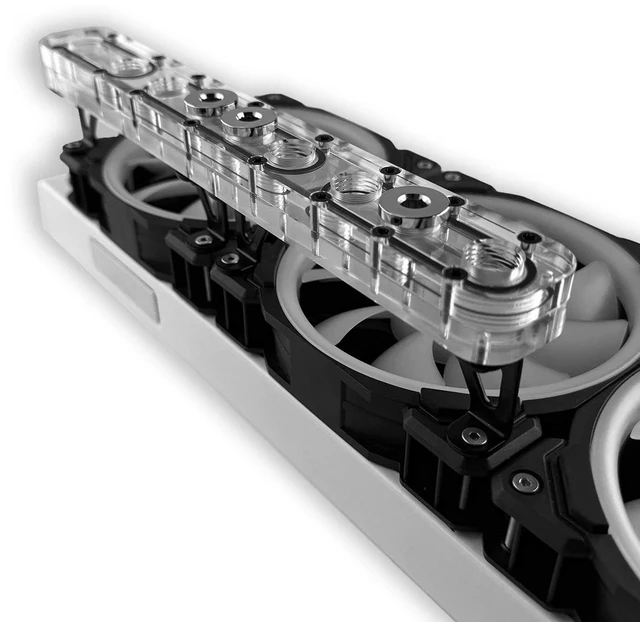

    Room for a DDC pump

    The 28 mm distance is enough for a DDC pump on the back of the plate, so distro plates and reservoirs with or without a pump can be fitted in front of a fan grill, radiator or fan. Stealkey adds that the gap gives a larger, unhindered airflow through the case.

    Folded steel

    Each bracket is folded from 1.5 mm steel and painted black, which Stealkey says gives a stable mount.

    Compatible Stealkey parts

    • SK-UNI 80 Pump Combo - Acrylic
    • SK-UNI 120 Pump Combo - Acrylic
    • SK-UNI 240 Pump Combo - Acrylic
    • SK-UNI 120D Distroplate - Acrylic Black Edition
    • SK-UNI 120D Distroplate - Acrylic White Edition
    • SK-UNI 360D Distroplate - Acrylic Black Edition
    • SK-Crossflow Distroplate - Acrylic - Lian Li O11D XL EVO
    • SK-120 Light Distroplate 120 mm - Acrylic D-RGB
    • Stealkey CubeTube Distroplate 240 mm - Acrylic
    • Stealkey CubeTube Distroplate 360 mm - Acrylic

    Technical data

    • Article number: SW10135
    • Dimensions per bracket (W x H x D): 115 x 28 x 13 mm
    • Fan mount: 120 mm (105 mm hole spacing)
    • Distance to the mount: 28 mm
    • Material: Steel, 1.5 mm thick, folded
    • Finish: Black paint
    • Color: Black

    Notes

    • For CubeTube Distroplates that you want to mount vertically or horizontally with adjustable position, Stealkey also makes the SK-FLEX Mounting Bracket 28 mm with rails.

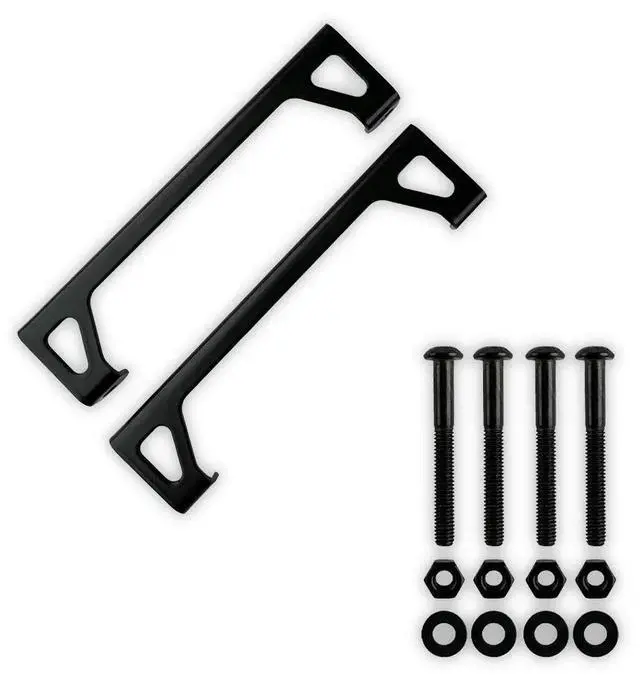

    In the box

    • 1x pair of SK-UNI mounting brackets 28 mm (120 mm fan)
    • 4x M4 washers
    • 4x M4 x 35 mm mounting screws
    • 4x M4 x 6 mm mounting screws
    • 4x M4 nuts
