Stealkey Customs 120 Light D-RGB Distroplate (SW10164)

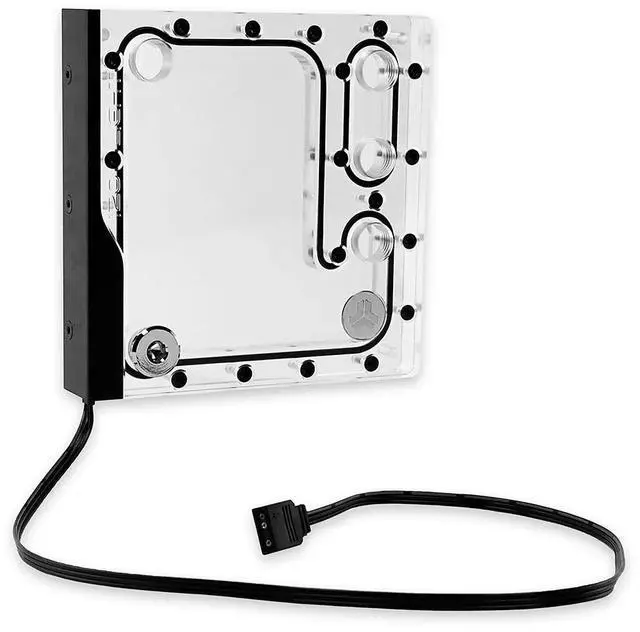

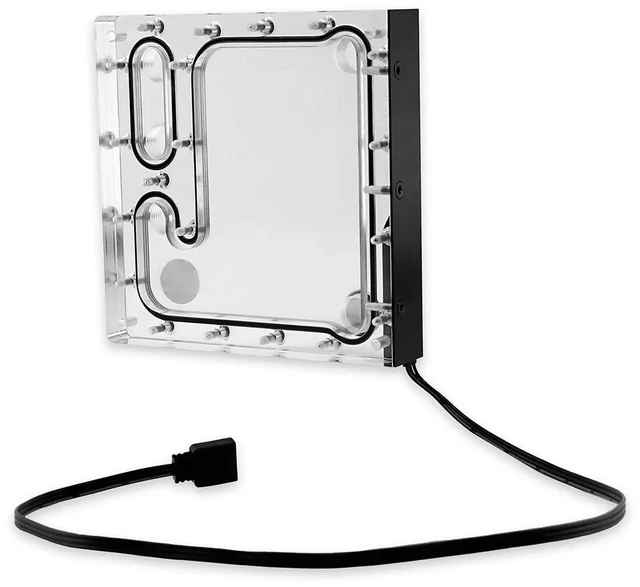

The SC 120 Light Distroplate D-RGB is a compact and functional distribution plate that fits effortlessly into any rear 120 mm fan slot with its slim dimensions of 120 × 120 × 23 mm. Inside, it features a chamber and a channel with a total fill volume of approximately 60 ml. It allows direct connection to the CPU water block, and additional ports enable integration with a GPU water block or radiators. In total, 5 × G1/4 ports are available (1 × CPU IN, 1 × CPU OUT, 2 × FILL/GPU/RAD, 1 × DRAIN). The distance between CPU IN and CPU OUT is exactly 28 mm, allowing straight tubing with compatible CPU coolers.

For easy installation, four M4 screws are included. On the left side, a powder-coated steel plate conceals the D-RGB stripe and makes a subtle visual statement with its design. A fine engraving with the inscription 120 Light completes the look. Illumination is controlled via a 3-pin 5V header on the motherboard, and the included D-RGB cable has a length of 500 mm.

We mill the distroplate to be as transparent as possible. The inner milling marks remain visible intentionally and are not polished. This emphasizes the high-quality CNC machining and allows a clear view of the flowing coolant.

Design Details of the Distroplate

• Powder-coated steel plate covers the RGB stripe


• Fine 120 Light engraving on the acrylic plate

Coolant Notice

For safe and long-lasting operation, only suitable coolant should be used. This protects the distroplate from material damage and reliably prevents corrosion, deposits, and leaks in all water cooling components. A compatibility list of recommended coolants is available for reference.

Technical Specifications of the SC 120 Light Distroplate

• CNC-milled and hand-assembled in Germany


• Product dimensions (W x H x D): 120 x 120 x 23 mm


• Color: Transparent, steel plate in matte black


• Material: Acrylic glass, powder-coated steel plate


• Reservoir volume: approx. 60 ml (chamber + channel)


• D-RGB cable length: 500 mm


• Integration of a radiator, CPU water block


• Connections: 5 x G1/4" ports


• Port distance CPU IN CPU OUT: 28 mm (for straight tubing)


• Mounting: 4 × M4 screws for installation in a 120 mm fan slot

Scope of Delivery

• 1 x SC 120 Light Distroplate D-RGB


• 4 x M4 x 5 mm mounting screws with hex socket


• 1 x SK-Plug G1/4 inch sealing plug - silver

Information

Installation Manual
Coolant Compatibility List

Important Notice

• The use of incompatible coolants can damage acrylic components.


• Only hand-tighten fittings into the distroplate.


• Do not use alcohol-based cleaners or solvents to clean the reservoir or distroplate, as they can damage the acrylic.
