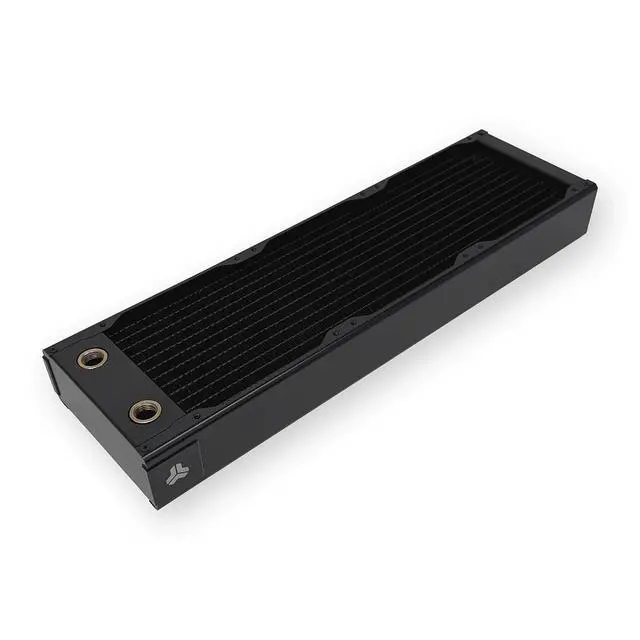

Stealkey Customs RadPro L360 H48 Radiator â Black (11483)

The SC RadPro L360 H48 Black combines uncompromising cooling performance with a sleek, modern design. Perfect for gamers, overclockers, and demanding workstation users looking to take their PC to the next level.

• Logo plug swap system
  Each side of the radiator features a removable logo plate (Logo Plug). Depending on installation orientation, the logo can be re-positioned so that it's always upright, even in top- or bottom-mounted setups.


• Compact dimensions
  With dimensions of 404 × 122 × 48 mm, the radiator remains space-efficient despite its thicknessideal for cases that support 360 mm radiators.

High-quality material combination

The brass-made end chambers, in combination with copper channels, ensure fast and even heat distribution and effectively reduce hotspots in the cooling loop.

All side and end panels are made of coated stainless steel, providing reliable corrosion protection, a stable structure, and a high-quality, consistent appearance.

Powerful and quiet across the entire RPM range

The optimized core structure delivers excellent cooling performance even at low fan speeds. As RPM increases, performance scales almost linearly:

• Low RPM: Efficient cooling with minimal noise


• Medium RPM: Balanced noise and temperature levels


• High RPM / Push-Pull: Maximum heat dissipation with up to six 120 mm fans in a push/pull setup

Thanks to low air and water resistance, the radiator puts minimal strain on the pump or other loop components. Multiple SC RadPro radiators can be daisy-chained without overloading the pump (D5 or DDC).

Easy integration into any water cooling loop

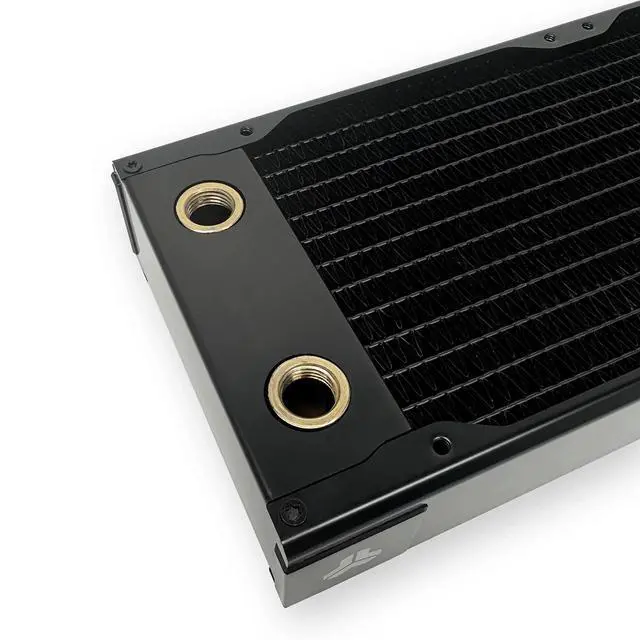

Two standardized G1/4 ports allow for flexible and hassle-free integration into the loop no special adapters required.

The SC RadPro L360 H48 Black comes with black M4 screws and is compatible with all 120 mm fans. If longer screws are accidentally used, only the fin core will be touched the structural integrity remains unaffected.

With a depth of only 122 mm, the radiator fits easily into all cases with standard 120 mm fan mounts no additional modifications needed.

Modular for DIY modding enthusiasts

The SC RadPro L360 H48 Black is designed as a modular system. Each component can be disassembled easily:

• Remove logo plates: Simply pull off without tools.


• Detach side panels: Remove screws to access the copper core.


• Remove the core: Ideal for custom painting, engraving, or expansions.

This lets you customize your radiator as desired and integrate it into any custom loop configuration.

Technical Details 360 mm Radiator

• Fan compatibility: 120 x 120 x 25 mm fans


• High-quality copper fins (99.9%)


• End chambers made of brass


• Sides and end caps made of black coated stainless steel


• Product dimensions (W x H x D): 404 x 122 x 48 mm


• Weight: 1.4 kg


• Fan configuration: Up to 6 × 120 mm (Push / Pull)


• Fan mounting: M4 screws (for 25 mm fan thickness)


• Color: Black


• Ports: 2x G1/4"


• Logo plug dimensions: 31.50 x 30.50 mm customizable surface for laser engraving (sold separately in the shop)


• Pressure tested: 1 bar

Scope of Delivery

• 1 x SC RadPro L360 H48 - Black


• 12 x M4 x 30 mm for 25 mm thick fans


• 12 x M4 x 5 mm for direct mounting to the case/fan grill
