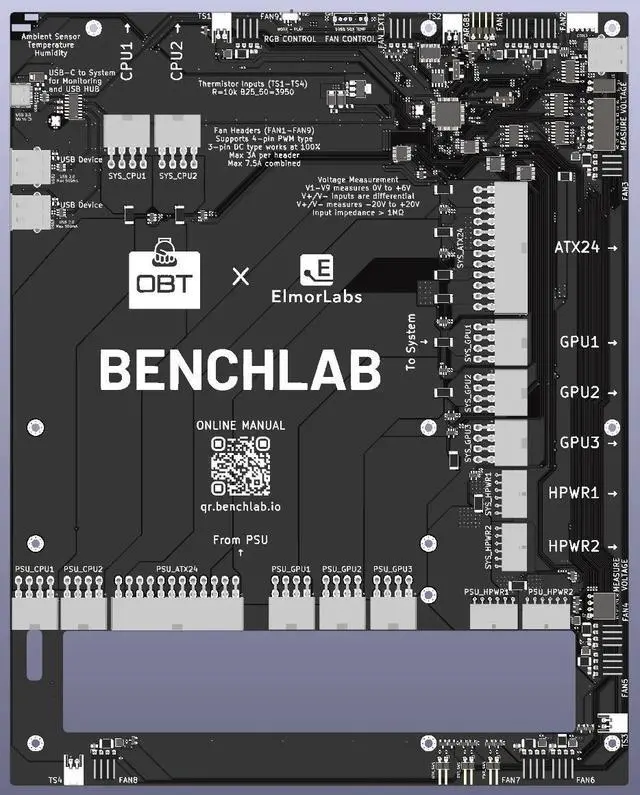

BENCHLAB Testing & Monitoring PCB (BENCHLAB-04)

BENCHLAB is a cutting-edge, compact real-time system telemetry solution engineered for PC DIY enthusiasts. It allows you to effortlessly monitor critical system metrics, including temperature, power usage, and voltage levels, as well as conveniently manage system fan speeds. The telemetry data is displayed in the BENCHLAB software which also allows you to log the data to a file or export directly to HWiNFO. BENCHLAB empowers you to make informed decisions when fine-tuning your system’ s performance. It helps identify potential hardware issues before they escalate, and optimise your hardware configurations seamlessly.

Its intuitive design makes it an indispensable tool for both seasoned overclockers or PC DIY enthusiasts, simplifying the complexities of PC DIY system monitoring. Package Content1x BENCHLAB PCBPower Measurement1x 24-pin ATX plug to 24-pin ATX plug, 20cm (black) 2x 4+4-pin EPS plug to 8-pin EPS plug, 20cm (black) cable of 32A on each channel, 64A for EPS1 and EPS23x 6+2-pin PCIE plug to 8-pin PCIE plug, 40cm (black) 2x 12+4-pin 12VHPWR plug to 12+4-pin 12VHPWR plug, 40cm (black) Voltage Input4x 1-pin dupont male with test hook, 30cm (red, green, yellow, blue)Fan Ext1x 4-pin to 4-pin fan header receptacle, 30cm (black) Thermistor2x thin film tip B=3950 to 2-pin JST XH 100cm (black) 2x waterproof tip B=3950 to 2-pin JST XH 100cm (black) RGB1x 3-pin to 3-pin, 30cm (black) I/O Connector3x 2-pin dupont female to female 20cm (black) 1x USB Type-A to Type-C, 100cm (black) Standoffs10x 25+6mm M3 nickel-plated copperBENCHLAB FeaturesPower Measurement1x 24-pin ATX (12V, 5V, 3.3V, 5VSB)2x 8-pin EPS (12V) 3x 6+2-pin PCIE (12V) 2x 12+4-pin 12VHPWR (12V) Voltage Measurement1x ± 18V differential8x 0-4V single ended (MB) 4x 0-4V single ended (VGA) Temperature MeasurementAmbient temperatureAmbient humidity4x thermistorFan Control
