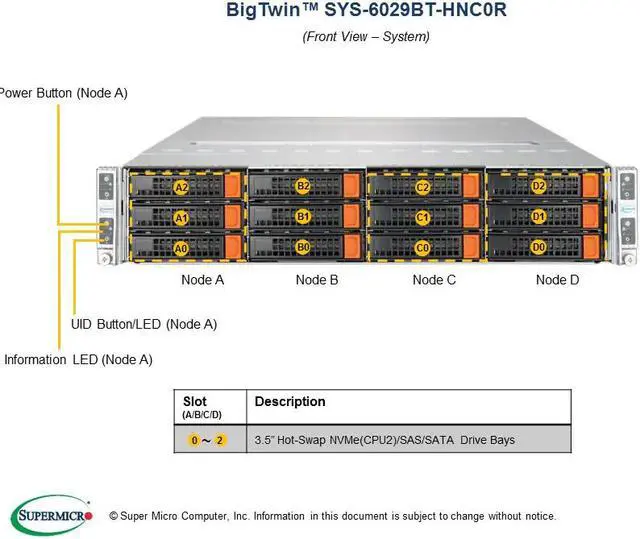

Supermicro SuperServer 6029BT-HNC0R Barebone System - 2U Rack-mountable - Intel C621 Chipset - 4 Number of Node(s) - Socket P LGA-3647 - 2 x Processor Support - Black

The Supermicro BigTwin™ is the first and only 2U multi-node system supporting the highest performance processor, memory, storage, I/O and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.

• Performance: Supporting the 2nd generation Intel® Xeon® Scalable processors up to 205W, the BigTwin achieves incredible performance in a 2U multi-node platform. Each node of the BigTwin supports up to 6TB DDR4-2933MHz in 24 DIMM slots for dramatically faster and increased memory capacity compared to previous generations of Twin systems, as well as support for Intel® Optane™ DC Persistent Memory. With up to 12 hot-swappable 2.5" drive bays per node, storage performance is accelerated with options for All-Flash NVMe, SAS or SATA drives.

• Density: BigTwin systems boast incredibly high density with up to 4 hot swappable nodes in a 2U form factor, and double the I/O capacity of competitive 2U solutions. Support for Supermicro I/O Module (SIOM) enables flexible networking options of 1G, 10G, 25G, or 100G Ethernet or 100G InfiniBand/Omni-Path and frees up 2 low-profile PCI-E 3.0 x16 expansion slots per node.

• Efficiency: Supermicro's Twin architecture is designed with power and cost efficiency in mind. The BigTwin reduces power consumption with shared cooling and power design, leveraging redundant 2200W high efficiency (96%) power supplies. Maximum compute in a 2U system enables data center footprints to be reduced by 50% compared to standard 2U servers with equivalent performance.

Features

* Package Contents: <ul> <li>SuperServer 6029BT-HNC0R (Black)</li> <li>4 x Super X11DPT-B Motherboard</li> <li>1 x 2U Chassis</li> <li>4 x Big Twin 1U hybrid ADP supporting 6x SAS3 and 4x NVMe</li> <li>1 x 2U 12-Port 4-Node Hybrid Backplane Supports 3x3.5</li> <li>2 x PWCD,US,IEC60320 C14 TO C13,3FT,14AWG</li> <li>12 x Black gen 8 hot-swap 3.5</li> <li>1 x SC827B BigTwin type I (Impact) BPN retention bkt assy</li> <li>4 x Bigtwin air box for X11DPT-B(4pcs/set)</li> <li>4 x Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB</li> <li>1 x 6029BT-HNC0R Quick Reference Guide</li> <li>4 x RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS</li> <li>4 x 1U RHS TwinPro Riser card with one PCI-E x16 slot</li> <li>4 x 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism</li> <li>4 x 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism</li> <li>2 x 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48</li> </ul><br /> * Product Type: Barebone System<br /> * Maximum Memory: 6 TB<br /> * Product Type: Barebone System<br /> * Input Voltage: 230 V AC<br /> * Maximum M
