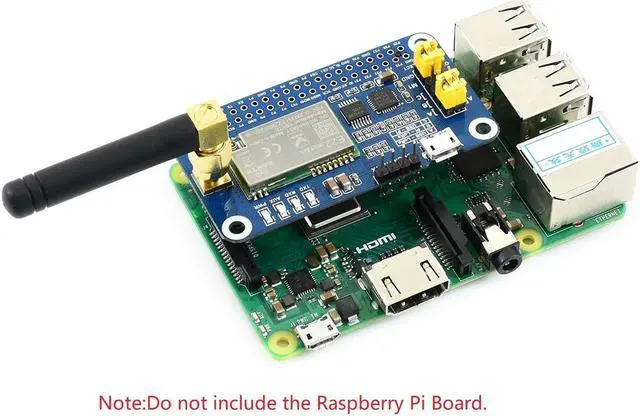

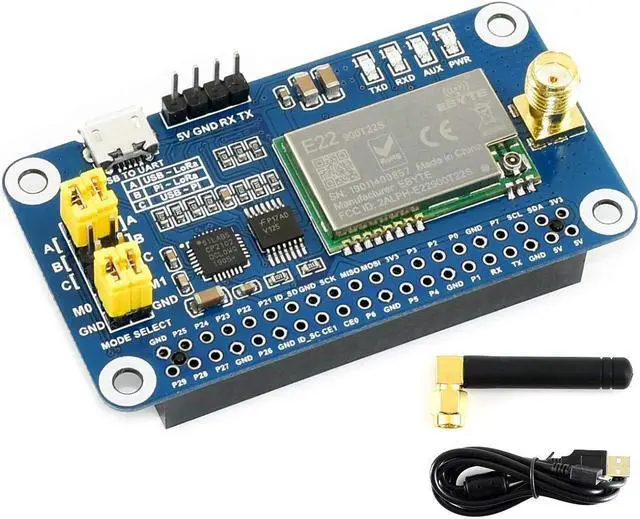

SX1262 LoRa HAT for Raspberry Pi Series Boards 915MHz Frequency Band,Support Data Transmission up to 5km,Wake on Radio,Wireless Config, Carrier Sensing, Communication Key

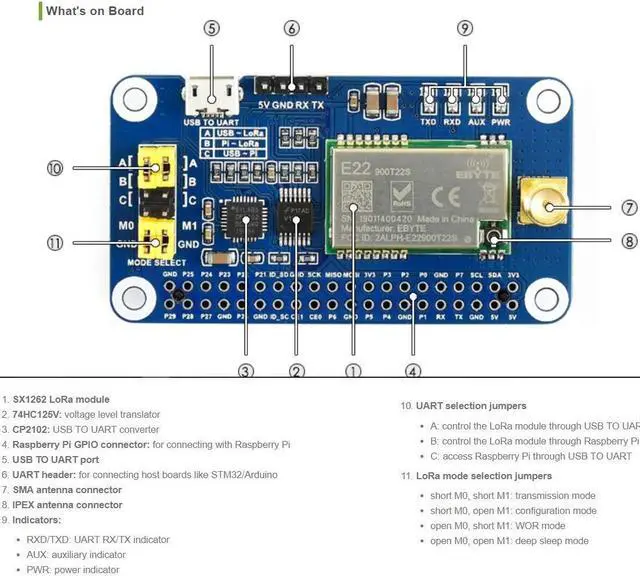

SX1262 LoRa HAT for Raspberry Pi, Spread Spectrum Modulation, 915MHz Frequency Band, only used in America, Oceania, Asia Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard CP2102 USB TO UART converter, for serial debugging Brings the UART control interface, for connecting host boards like Arduino/STM32 4x LED indicators, easy to check the module status LoRa spread spectrum modulation technology, up to 81 available signal channel, longer communication distance, more robust to interference Auto multi-level repeating, suit for ultra long range communication, allows multi network on the same region Low power consumption features like deep sleeping and Wake on Radio, ideal for battery-powered applications Customizable communication key which won't be retrieved, greatly improves the security of user data Supports LBT, monitoring the signal channel noise before transmitting, greatly improves the success ratio under extreme environment Supports RSSI signal intensity indicating, for evaluating signal quality, tuning the network Supports wireless parameter configuration, by sending wireless command/data packet, remotely configure or retrieve the module parameter Supports fixed-point transmission, broadcast, signal channel monitor Comes with development resources and manual (examples for Raspberry Pi/STM32) Package Content SX1262 915M LoRa HAT x1 USB type A plug to micro plug cable x1 915MHz antenna x1 Note More resources and support you need, please contact us via message to get, thanks.
