8 Ports 10/100M Industrial Ethernet Enhance Switch 8 Port RJ45 VLAN Signal increased to 250 meters
- Chipset:IP178GHI.; Port number:8 port 10/100M Auto MDI-MDIX RJ45.; LED Indicator:10/100Mbps(Link/Act, speed),Power, enhance Indicator.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features: 8 Ports 10/100M Industrial Ethernet Enhance Switch 8 Port RJ45 VLAN Signal increased to 250m
Model number: TXE036
Chipset: IP178GHI
Port number: 8 port 10/100M Auto MDI-MDIX
RJ45 Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: 10/100Mbps(Link/Act, speed), Power, enhance
Indicator Dimension: 141*98*42mm
Power Input: DC9V-58V
Power Consumption: Max 1.5W
Environment Operating Temperature: -40? -85?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing)
Other function:

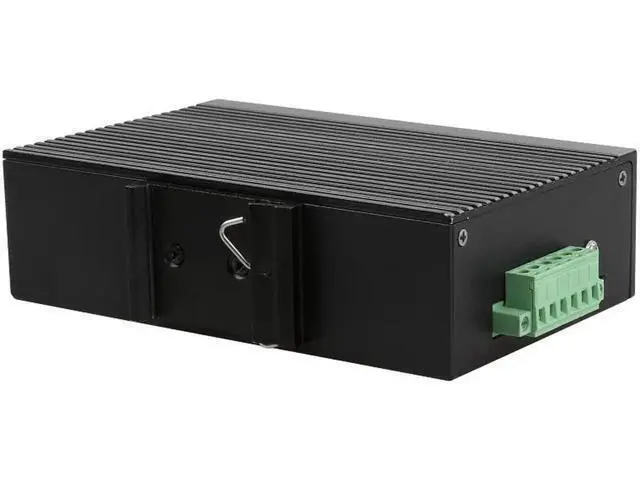

Installation: DIN rail type
Package Included: 1 x 8 Ports 10/100M Industrial Ethernet Enhance Switch
Model number: TXE036
Chipset: IP178GHI
Port number: 8 port 10/100M Auto MDI-MDIX
RJ45 Standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 az
Network media: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5
UTP Data rate: 10/100M
Forwarding rate: 10 Mbps / 14, 880 pps, 100 Mbps / 148, 800 pps
LED Indicator: 10/100Mbps(Link/Act, speed), Power, enhance
Indicator Dimension: 141*98*42mm
Power Input: DC9V-58V
Power Consumption: Max 1.5W
Environment Operating Temperature: -40? -85?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40? -85?
Relative Humidity: 5%-90%(non-condensing)
Other function:
Installation: DIN rail type
Package Included: 1 x 8 Ports 10/100M Industrial Ethernet Enhance Switch
