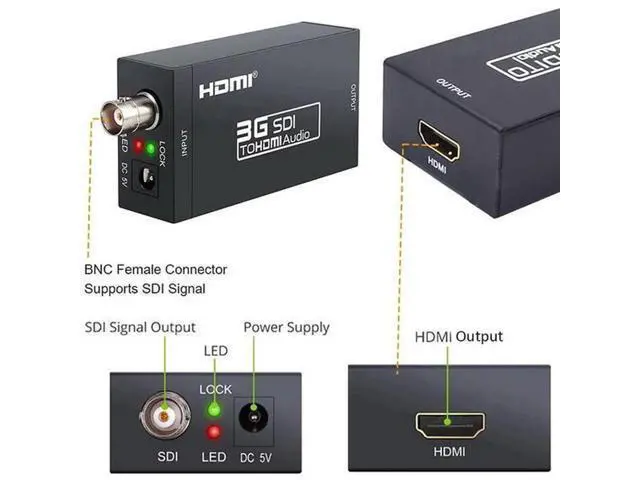

The SDI to HDMI converter supports high-definition signal input. The SDI converter and HDMI converter have a wide voltage range
- Product Features:; Supports HDMI1.3 version and is backward compatible with HDMI 1.2/1.1; 2. Compatible with multiple SDI signals: SD-SDI/HD-SDI/3G-SDI; 3. The output effect is first-class and fully meets the professional requirements of the broadcasting room and nonlinear editing system; 4. Industrial-grade power supply technology, supporting a wide voltage range of 5V to 12V; 5. Strong stability, capable of continuous operation for 24 hours; 6. Adopt Scaler scaling technology. It is capable of converting non-standard SDI signals into standard HDMI 720P/1080P signal outputs to adapt to different displays; 7. Automatically recognize resolution. Full HD 1080P@60Hz output is supported; 8. Support SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C; 9. Synchronous output of audio and image; 10. Multiple converters can be connected together to extend signals over long distances. Supports up to 8-channel 48KHz audio; 11. Simple and convenient to install
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product parameters: The input interface...... BNC (SD-SDI/HD-SDI/3G-SDI) Output interface...... HDMI Input/output resolution... 480 I, 576 I, 720 p @ 50/ 59.94, 60, 1080 I @ 50/ 59.94 /60. 1080 p@ 23.97 /24/25/ 29.97 /30/50/ 59.94 /60 SDI transmission rate... 2.970 Gbit/s and 2.970 / 1.001 Gbit/s Power supply specifications...... DC 5V-12V ESD body protection model..... ±8kV (air discharge), ±4kV (contact discharge) Size (length * width * height)...... 80mm x 41mm x 25 mm The weight...... 150g Working temperature...... 0°C ~ 40°C / 32°F ~ 104°F Storage temperature...... -20°C ~ 60°C / -4°F ~ 140°F Relative humidity...... 20-90% RH (no condensation) Maximum power consumption......
5W Packaging content: SDI to HDMI switch... 1PCS DC 5 v power adapter... 1PCS User manual... 1PCS
5W Packaging content: SDI to HDMI switch... 1PCS DC 5 v power adapter... 1PCS User manual... 1PCS
