DJI RC Plus 2 Enterprise Enhanced

Overview

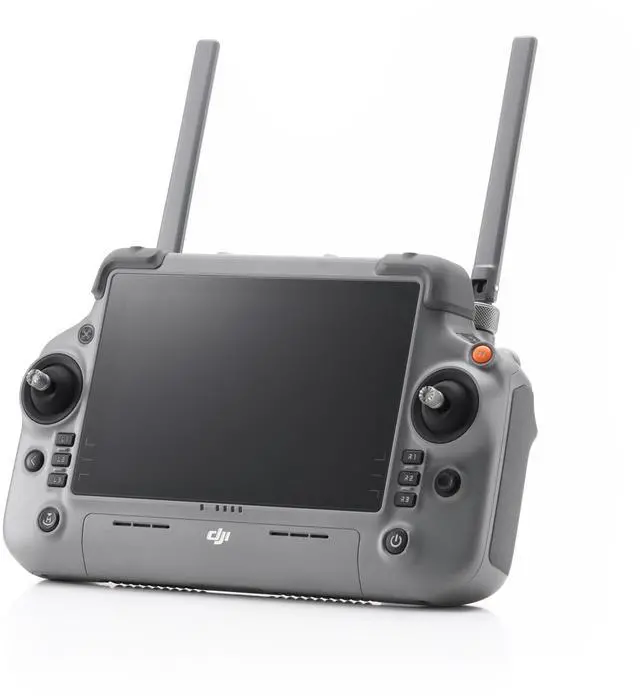

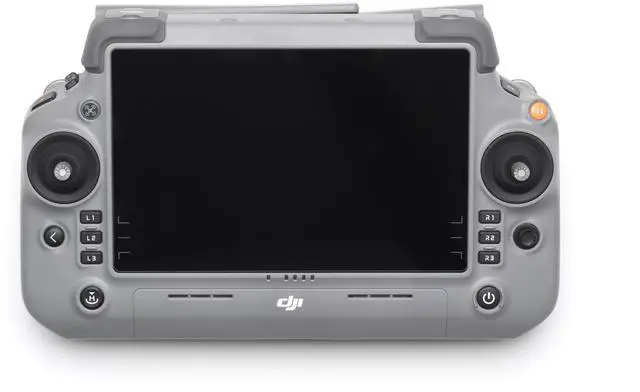

DJI RC Plus 2 Industry Edition remote control is equipped with a new high-brightness screen, which is clearly visible in the sun. It supports IP54 protection level and can work in the temperature range of -20 to 50. It uses O4 image transmission industry version, with built-in high-gain antenna array, powerful performance; at the same time, it supports SDR and 4G hybrid image transmission scheme, whether in urban high-rise or mountain environment, it can present stable and smooth image transmission.

Highlights

Equipped with a brand new high-brightness screen, it is clearly visible even in the sun. With IP54 protection level, it can operate in the temperature range of -20 to 50. Adopting the O4 image transmission industry version, it also supports SDR and 4G hybrid image transmission scheme.

Warm Reminder

1. Please be sure to download and read the user manual and safety summary for the companion aircraft from the DJI official website, and read it carefully before use.

2. When using the remote control, if the operation is improper, the aircraft may cause a certain degree of injury and damage to personal and property safety, please pay attention to safety.

3. Please pay attention to protect the remote control during use and transportation, avoid external impact on the remote control, and prevent damage to the display, joystick and other parts.

Packing list

Remote control × 1

Technical parameters

OcuSync

Working frequency*:2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Equivalent Isotropic Radiated Power (EIRP):

2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (FCC/CE)

5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)

Wi-Fi

Protocol: 802.11 a/b/g/n/ac/ax

Working frequency*:2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Equivalent Isotropic Radiated Power (EIRP):

2.4 GHz: < 26 dBm (FCC); < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 26 dBm (FCC); < 23 dBm (CE/SRRC/MIC)

5.8 GHz: < 26 dBm (FCC/SRRC); < 14 dBm (CE)

Bluetooth

Protocol: Bluetooth 5.2

Working frequency: 2.4000-2.4835 GHz

Equivalent Isotropic Radiated Power (EIRP): < 10 dBm

General

Model: TKPL2

Built-in battery: lithium-ion battery (6500 mAh @ 7.2 V), chemistry: lithium nickel cobalt aluminum oxide

Charging method: It is recommended to use a USB-C fast charger with a maximum power of 100 watts.

Rated power consumption: 12.5 watts

GNSS: GPS+Galileo+BeiDou

Video output interface: HDMI A type

Working environment temperature: -20 to 50

Storage ambient temperature:

-30 to 45 (one month)

-30 to 35 (more than one month and less than three months)

-30 to 30 (greater than three months less than one year)

Charging ambient temperature: 5 to 40

* The supported operating frequency bands and their corresponding coverage areas vary by country/region, please refer to the local laws and regulations for details.

Adaptable products

DJI Matrice 4D Series

DJI Matrice 4T Industry Series Model

DJI Matrice 4E Industry Series Model

DJI Matrice 400
