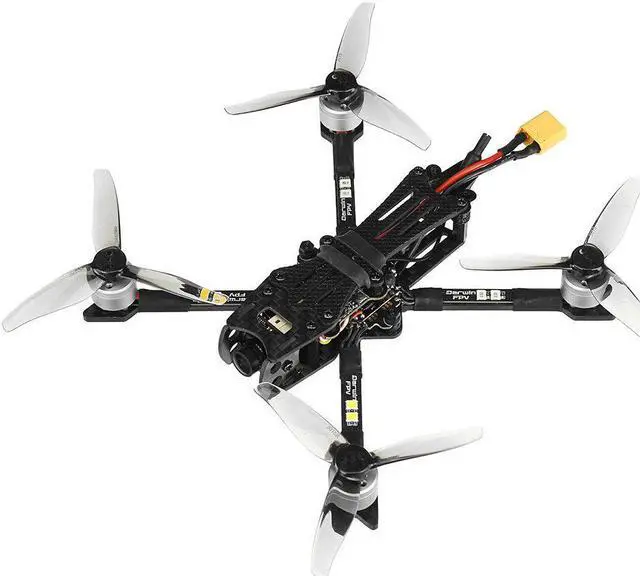

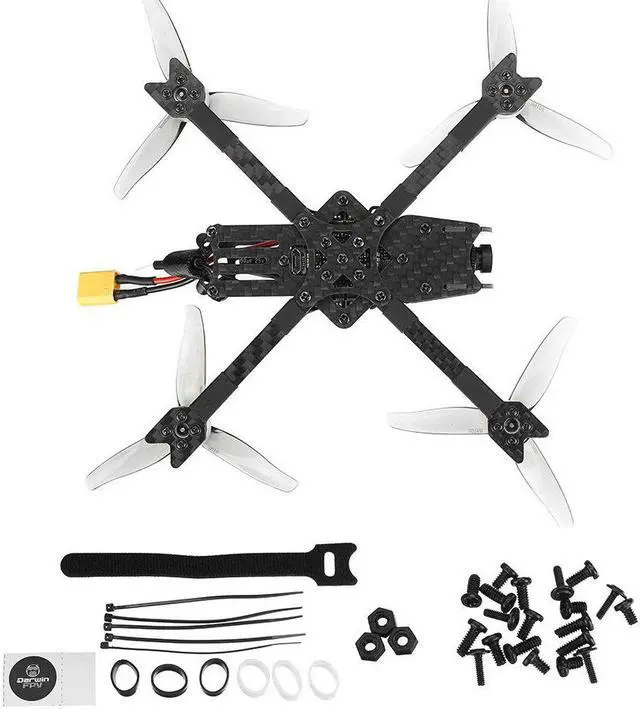

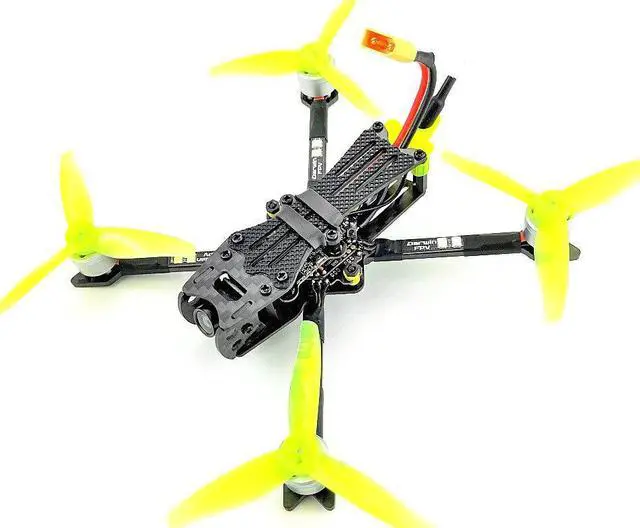

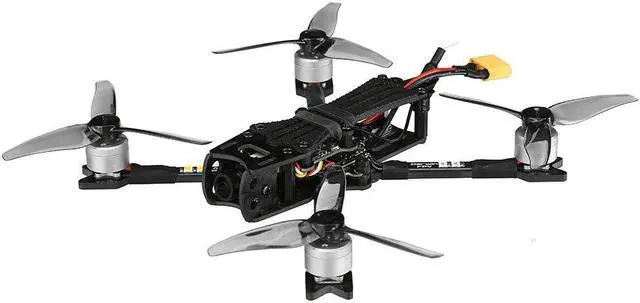

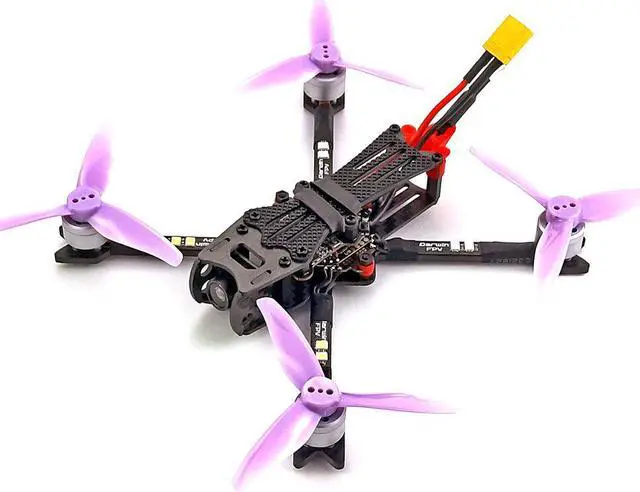

Baby Ape/Pro 142mm 3" 2-3S FPV Racing RC Drone PNP 1104 4300KV Brushless Motor

Description:

Brand:

Item Name: Baby Ape/Pro 142mm 3" FPV Drone

Color: Yellow/Black/Purple

Weight: 71.6g

142mm Racing Frame Kit

Wheelbase: 142mm

Frame arm thickness: 2.5mm

Other thickness:1 .5mm

Frame kit material: 3K carbon fiber

1104 4300KV 2-3S Brushless Motor

KV: 4300KV

Lipo cell: 2-3S

Weight: 6.0g

AIO 4 IN115A BLHeli S ESC

Input voltage: 1-3SLIPo

Continuous current: 15A

Peak current:17A (10S)

BEC output: No

MCU: 48MHz EFM8BB21F16G

Protocol: DSHOY/Oneshot/MultiHhot

BLHeli-S Firmware target: S-H-50

Telemetery: No

Current Sensor:No

Main control chip:EFM8BB21

Firmware upgrade: Supports Dshot600 Oneshot125

MOS: 3*3

F411 AIO Flight Controller

Main control chip: STM32F411

Sensor: MPU6000

Integrated OSD

PPMDSM/IBUS/UAR share: UART1-RX

Mounting holes distance: 25.5*25 .5mm

Supports Betaflight firmware

Baro: No

Black Box: No

Baby APE

Darwin700TVL Camera

Resolution:700TVL

Lens: 1.8mm

Input: 3.5-5V

TV System: PAL/NTSC

Baby APE Pro

CADDX ANT Camera

Resolution:1200TVL

Mage Sensor: 1/3" CMos Sensor

Input: DC 3.7-18V

TV System: PAL/NTSC

5.8G 40CH 0mW/25mw/200mw switchable VTX

Supports TBS SmartAudio

Transmitting power: 0mW/25mW/100mW/200mW switchable

Channel: 40CH

Full video format: NTSC/PAL

Input voltage: 7V~24V

Power dissipation: +12V/600MW

Size: 25x20x6mm

Weight: S3.2g (except antenna)

With copper pipe mini antenna (ipex antenna)

30163-blade propeller

Material: PC

Mounting hole: 1.5mm

Center thickness: 5.5mm

Quantity: 2 pairs

Weight: 1.18g a pair

Lipo Battery

Recommend 2-3S 300-450mah(Not included)
