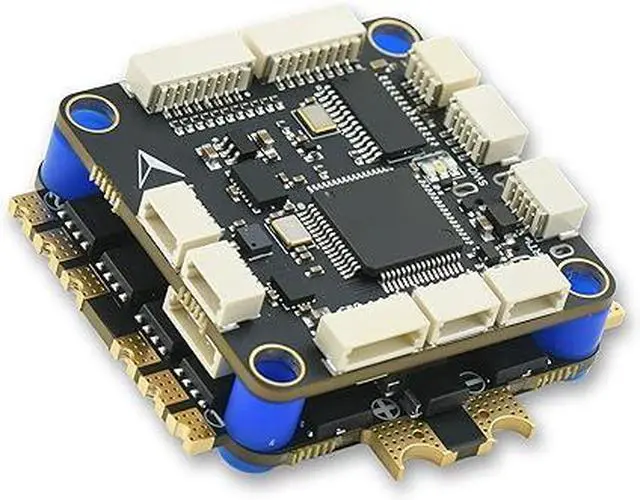

F405 45A Flight Controller 30x30 Stack Support 2-6S LiPo, BLHeli 4in1 ESC Board, BMI088 IMU, 6 UART, Dual BEC, Compatible with Betaflight, INAV, Ardupilot for FPV & Racing Drones
- Model Name F405 45A Stack
- Connectivity Technology UART, PWM, BEC

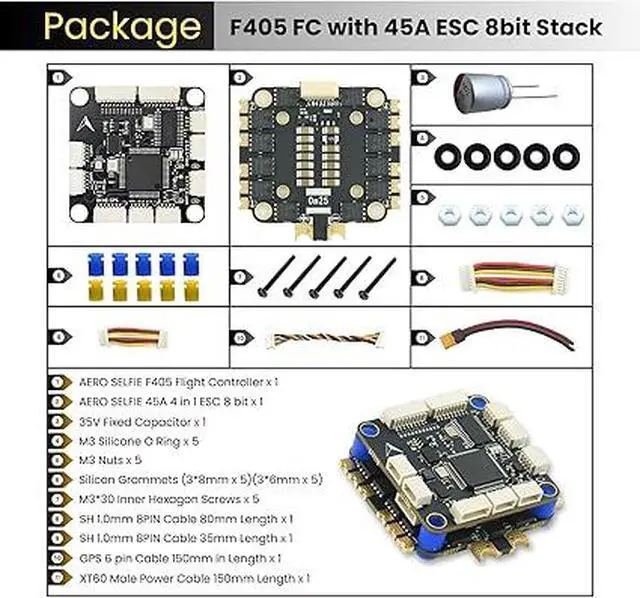

- Included Components 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 135V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 1
- Operating System Linux
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

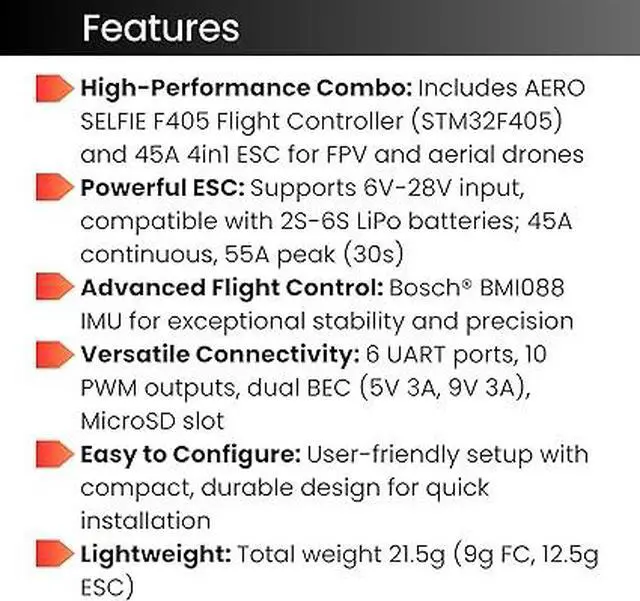

- High-Performance Combo: Includes AERO SELFIE F405 Flight Controller (STM32F405) and AERO SELFIE 45A 4in1 ESC, offering superior control and efficiency for FPV and aerial drones.
- Advanced Flight Control: Equipped with Bosch BMI088 IMU for exceptional stability, vibration resistance, and precise flight dynamics in challenging conditions.
- Powerful ESC: Supports 6V-28V input with 2S-6S LiPo battery compatibility, providing continuous 45A per channel and 55A peak for up to 30 seconds.

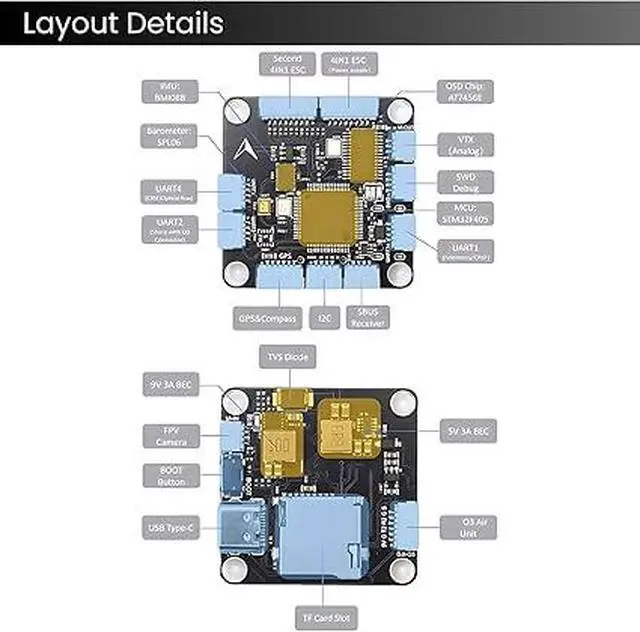

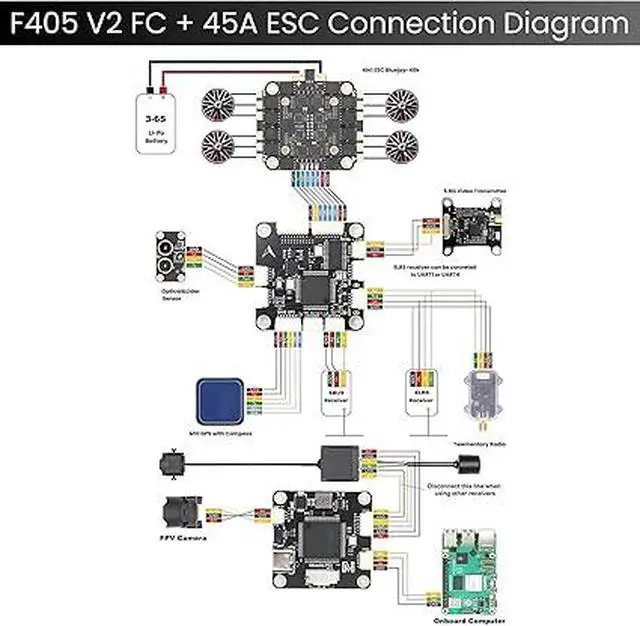

- Versatile Connectivity & Power: Offers 6 UART ports, 10 PWM outputs, dual BEC power (5V 3A, 9V 3A), and a MicroSD slot for seamless integration with GPS, cameras, and telemetry systems.

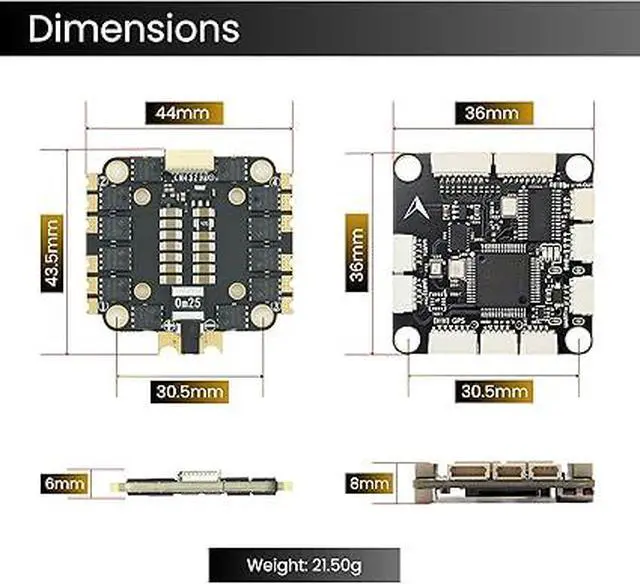

- Easy to Configure & Lightweight: Simple and user-friendly configuration, featuring a compact and durable design for quick installation and reliable performance across various drone applications. Light weight as 21.5g (9g for the FC, 12.5g for the ESC).
