H743 Flight Controller with 60A 32 bit ESC 30x30 Stack: Supports 2-6S LiPo, Dual IMU, Compass, Barometer, Compatible with Betaflight, INAV, PX4, Ardupilot for FPV & Racing Drones
- Model Name H743 + 60A 32 bit ESC Stack
- Color Black and Gold
- Connectivity Technology USB Type-C, Radio Frequency

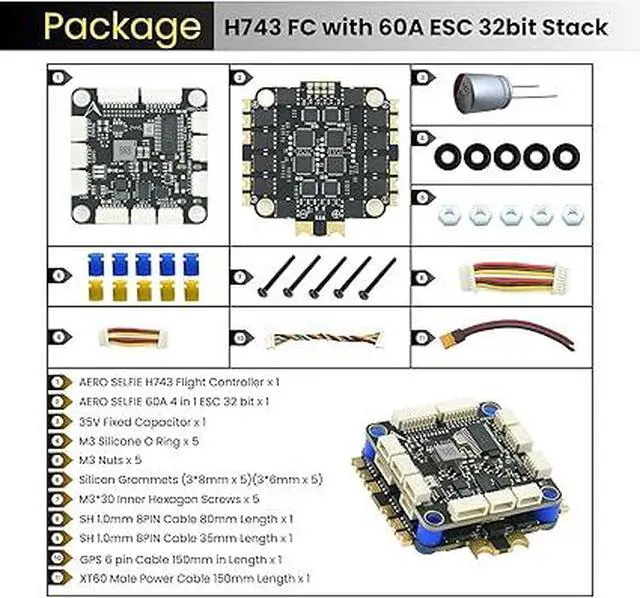

- Included Components 35V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings, XT60 Male Power Cable 150mm Length x 135V Fixed Capacitor x 1, 8PIN 1.0mm Cable 80mm Length x 1 , 8PIN 1.0mm Cable 30mm Length x 1, GPS 6 pin Cable 150mm in Length x 1, Nuts, Grommets, Screws and O rings XT60 Male Power Cable 150mm Length x 1
- Skill Level Intermediate to Professional
- Video Capture Format MP4
- Remote Control Technology Radio Frequency
- Control Type Remote Control
- Material Plastic
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

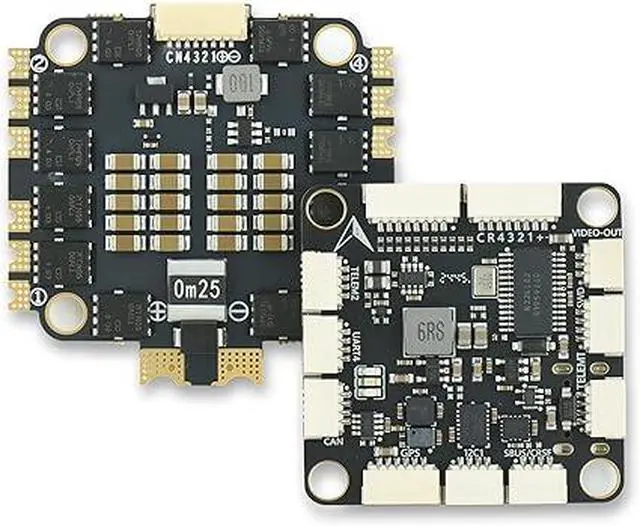

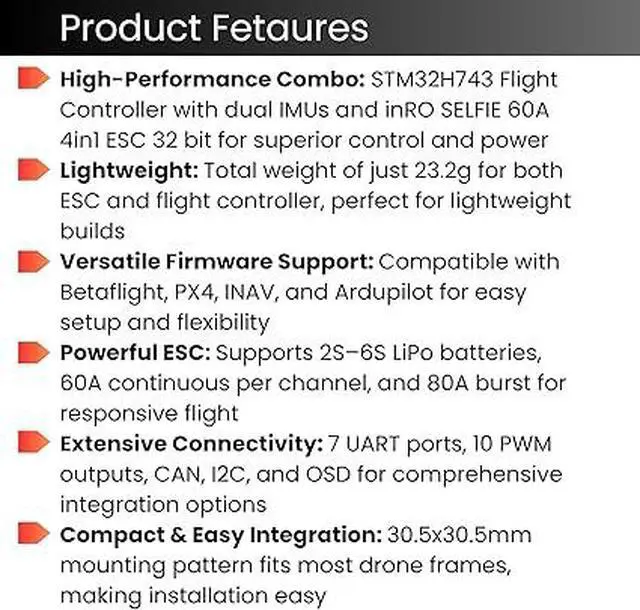

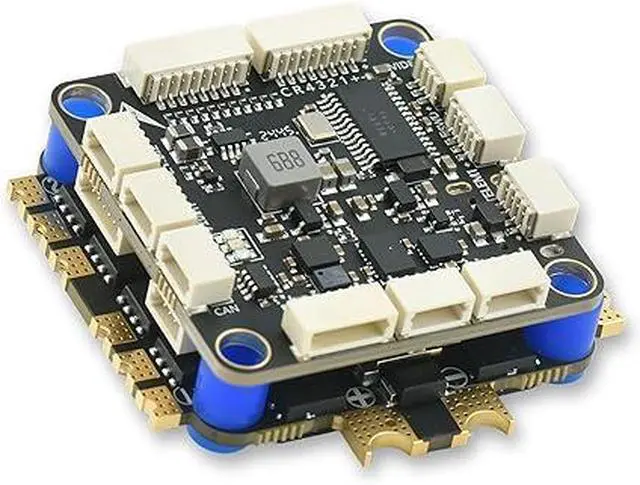

- High-Performance Flight Controller & ESC Combo: Features the AERO SELFIE H743 Flight Controller with an STM32H743 processor (480MHz) and dual IMUs (BMI088/BMI270), alongside the AERO SELFIE 4IN1 60A ESC 32 bit for superior motor control, offering a reliable combination for lightweight builds.
- Easy to Configure & Versatile Firmware Support: Compatible with Betaflight, PX4, INAV, and Ardupilot, this stack offers quick configuration options, ensuring ease of setup for both beginners and professionals.
- Powerful ESC Performance: The AERO SELFIE 60A 4IN1 ESC 32 bit supports 2S-6S LiPo batteries, provides a continuous 60A per channel, and delivers burst current of over 80A, ensuring optimal power, responsiveness, and stalling protection for high-performance drones.

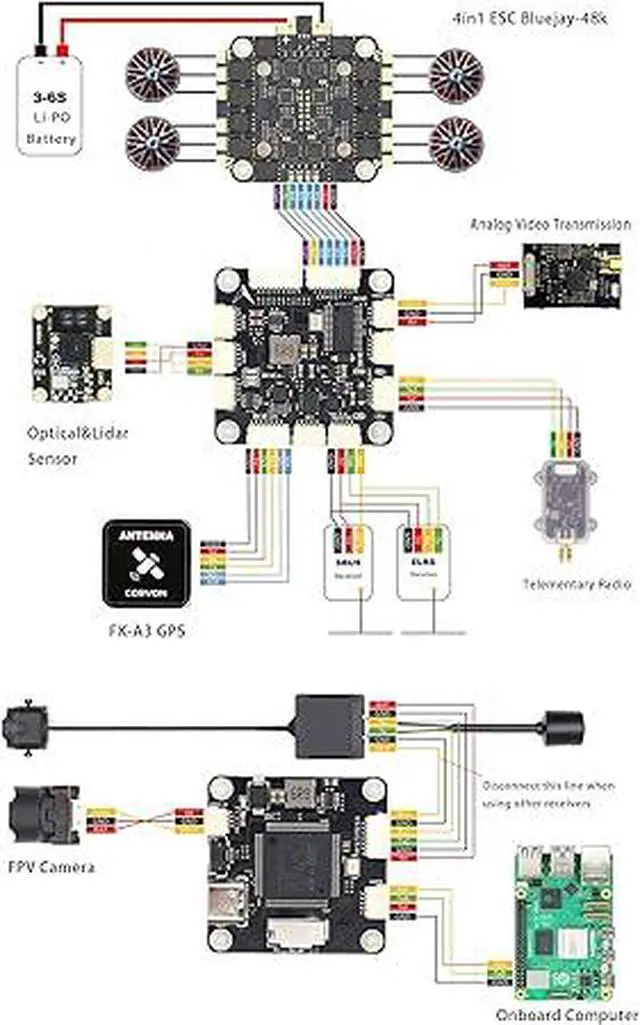

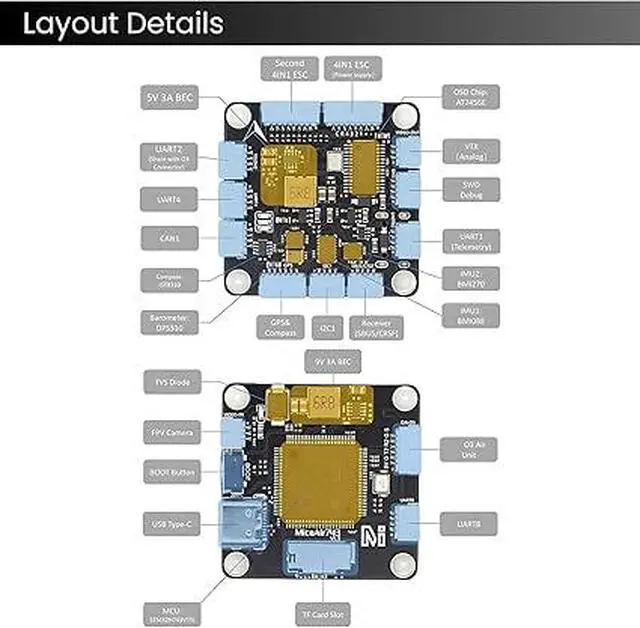

- Comprehensive Connectivity & Expansion: The H743 Flight Controller includes 7 UART ports, 10 PWM outputs, CAN, I2C, and OSD support, offering vast expansion potential for additional sensors, telemetry, or peripherals like GPS and cameras.

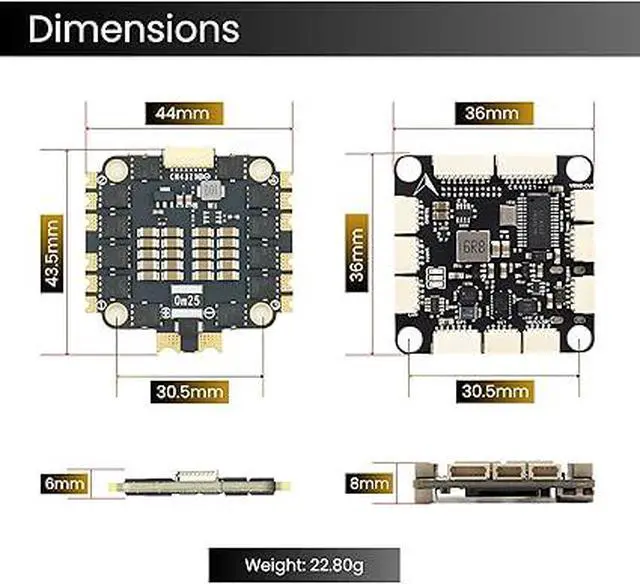

- Compact & Lightweight Design for Easy Integration: With a 30.5x30.5mm mounting pattern, the stack fits a wide variety of drone frames, while the lightweight (total weight: 23.2g for both the ESC and Flight Controller) and compact form factor ensures easy installation and efficient space management.
