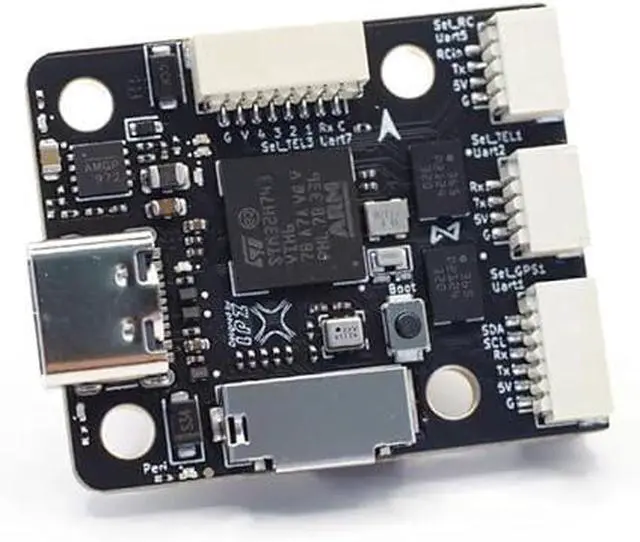

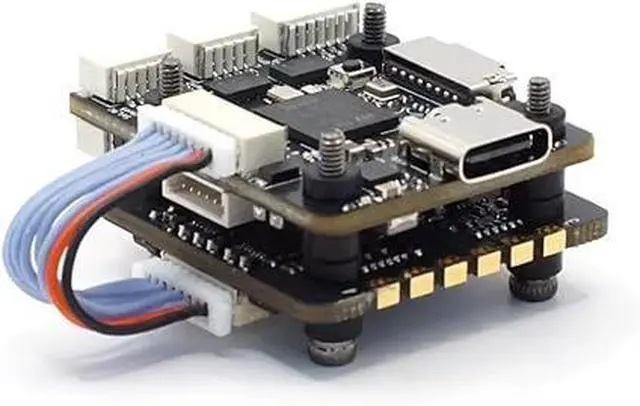

NxtPX4v2 Flight Controller Stack H743&BMI088 with 4in1 33A Bluejay 48K ESC FC&ESC Support PX4/Ardupilot
Limited time offer, ends 03/15 By KAIN Tech
- Model Name NxtPX4v2
- Special Feature Support Ardupilot/PX4
- Age Range (Description) Kid
- Color black
- Connectivity Technology UART

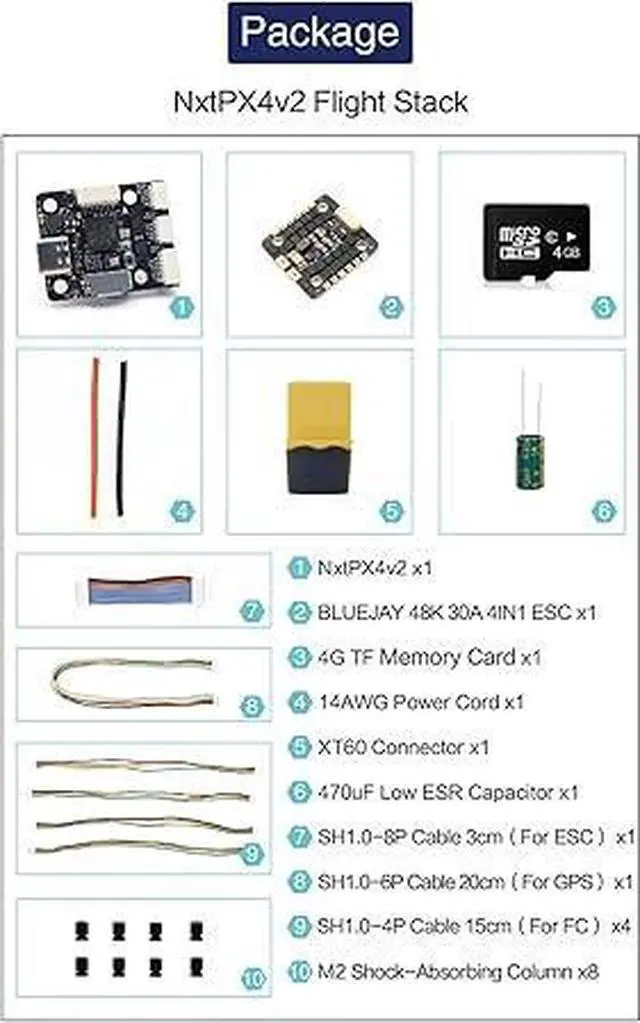

- Included Components ESC, Flight Controller
- Item Weight 10 Grams
- Control Type Remote Control
- Material Plastic
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- Research-Grade Open-Source Flight Controller Designed and maintained by HKUST Aerial Robotics Group specifically for scientific applications, providing an open hardware platform for lab research, academic teaching, and algorithm validation.
- High-Quality IMU Data for VIO & Perception Equipped with dual BMI088 high-precision IMUs, delivering superior data quality for Visual-Inertial Odometry (VIO) and perception algorithms, ensuring reliable results for research.

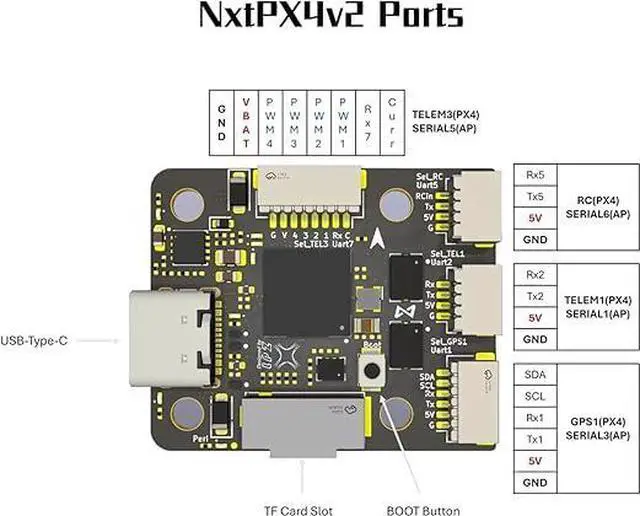

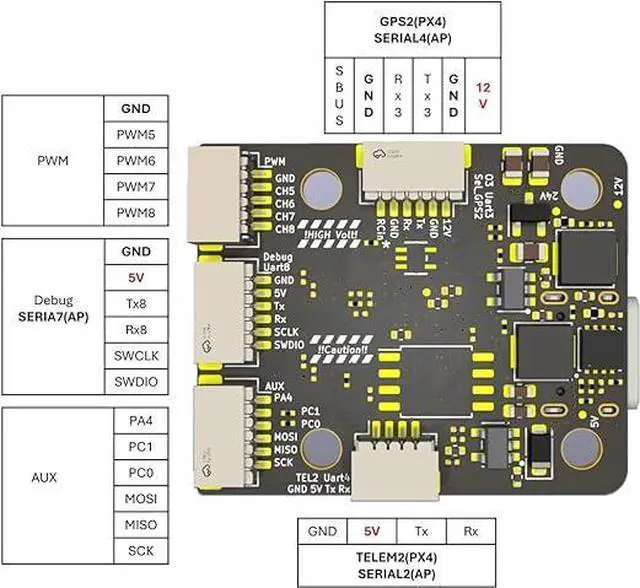

- Extensive Expansion & Compatibility Supports Ardupilot and PX4 firmware with 7x UART, 8x PWM, I2C, and SPI interfaces, enabling easy integration with GPS, optical flow, O3 transmission, Raspberry Pi onboard computers, LiDAR, 3D cameras, and other research peripherals.
- Proven Research Use Cases & Resources Supported by numerous UAV research projects and open resources available on the HKUST Aerial Robotics Group GitHub, enabling researchers and developers to replicate, learn, and innovate.
- 33A 4-in-1 ESC Runs Bluejay firmware with DShot300/600 protocol support, 26S LiPo input, and 33A continuous current per channel, ensuring stable performance and fast response.
