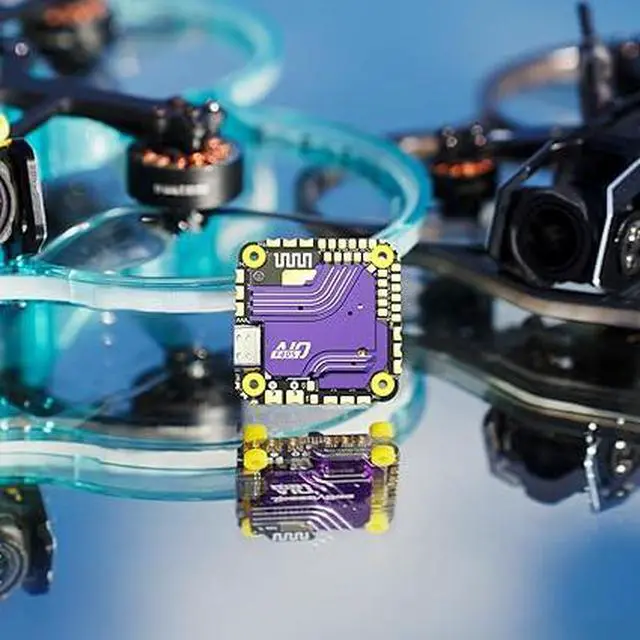

Main image of F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

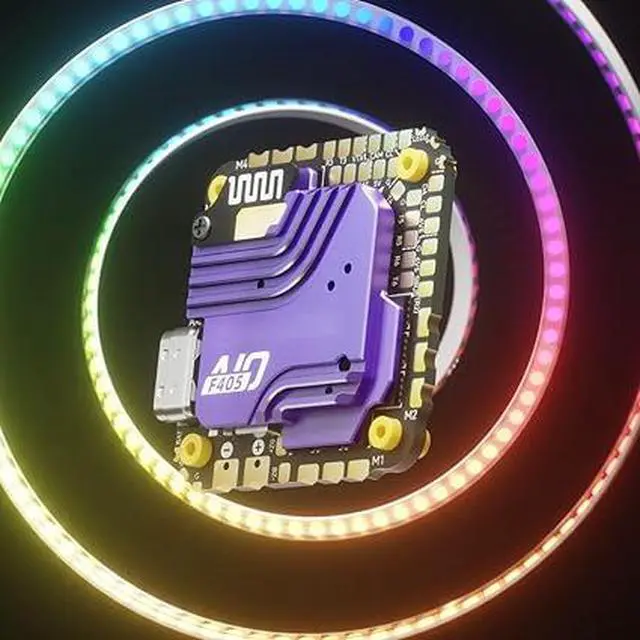

Alt view image 2 of 6 - F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

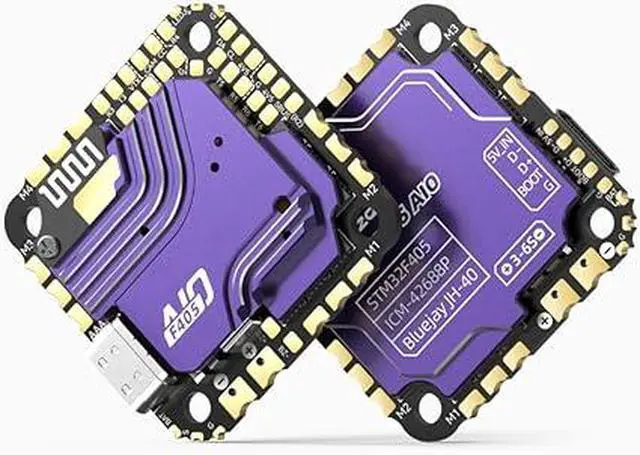

Alt view image 3 of 6 - F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

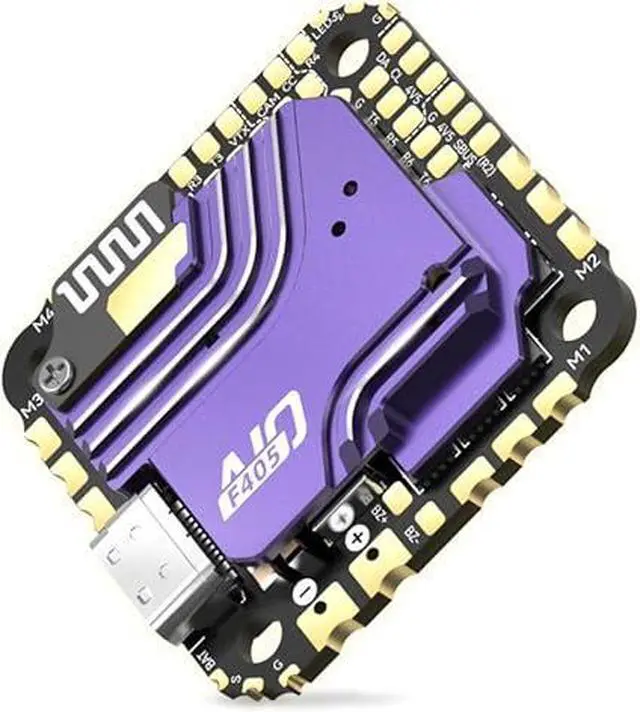

Alt view image 4 of 6 - F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

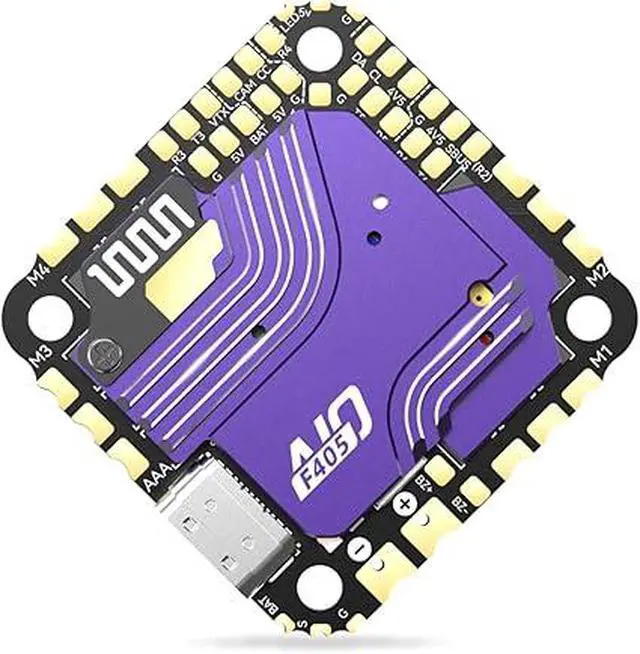

Alt view image 5 of 6 - F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

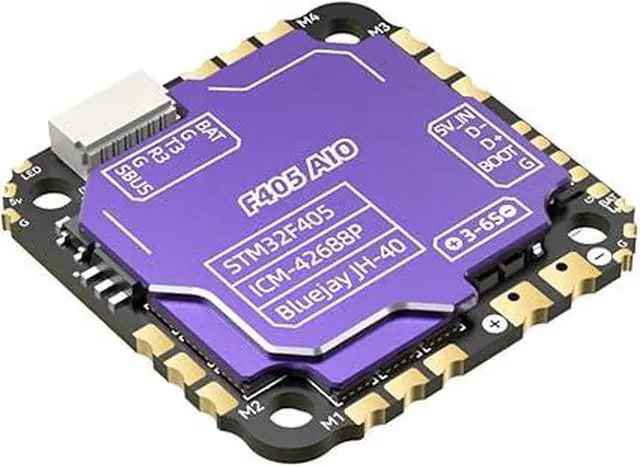

Alt view image 6 of 6 - F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

Shop All NASA Products | Visit KAIN Tech Store

F405 AIO 40A Flight Controller 3-6S 4 in 1 ESC FC Combo 25.5x25.5 Compatible with O3 Air Unit FPV Drone Combo for Quadcopter Fixed Wing and Drone Wireless Tuning

Model Name Flight Controller
Special Feature Enhanced Stability, Power, and Precision Flying
Age Range (Description) Kid
Color Black
Connectivity Technology Flight Controller
Included Components Flight Controller
Item Weight 20 Grams
Video Capture Format MP4
Control Type App Control

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Flagship Gyro, Rock-Solid Flight: ICM-42688P gyro with dedicated LDO power (ultra-low 1.3mV ripple); upgraded hardware filtering boosts anti-interference by 30%; delivers unwavering stability in extreme conditions
40A×4 ESC, Dominant Power: 160A continuous / 180A peak total output; onboard TVS diode + Rubycon HF capacitors; effortlessly powers 2-4 inches drones & lightweight 5 inche; compatible with 1002-2104 motors
STM32F405 Powerhouse; Full Compatibility: 168MHz CPU + 1MB Flash; handles complex algorithms smoothly
Wireless Tuning 2.0, Ditch the PC: Bluetooth app enables: No-disassembly DFU (virtual BOOT button); firmware updates; motor direction changes; LED control; doubles tuning efficiency
All-Interface 33mm Mini Beast: Plug-and-play; rich pads: 4x UART; 3x 5V; 2x 4.5V; magnetometer/LED/buzzer; GPS-ready; 30% larger pads + 20% smaller size (33×33×8mm); max build-friendliness
16-Piece Pro Builder Kit: Soldering practice board (with tutorial); adjustable 5V/9V BEC; Type-C extension + PDB board; DJI adapter cable + HF capacitors; transforms beginners into experts
Cooling Tech and Precision Alt-Hold: CNC aluminum heatsink + 0.5% accuracy barometer; sustains full 40A×4 output without throttling; ±0.25m altitude hold error; exceptional stability in aggressive hot flights
